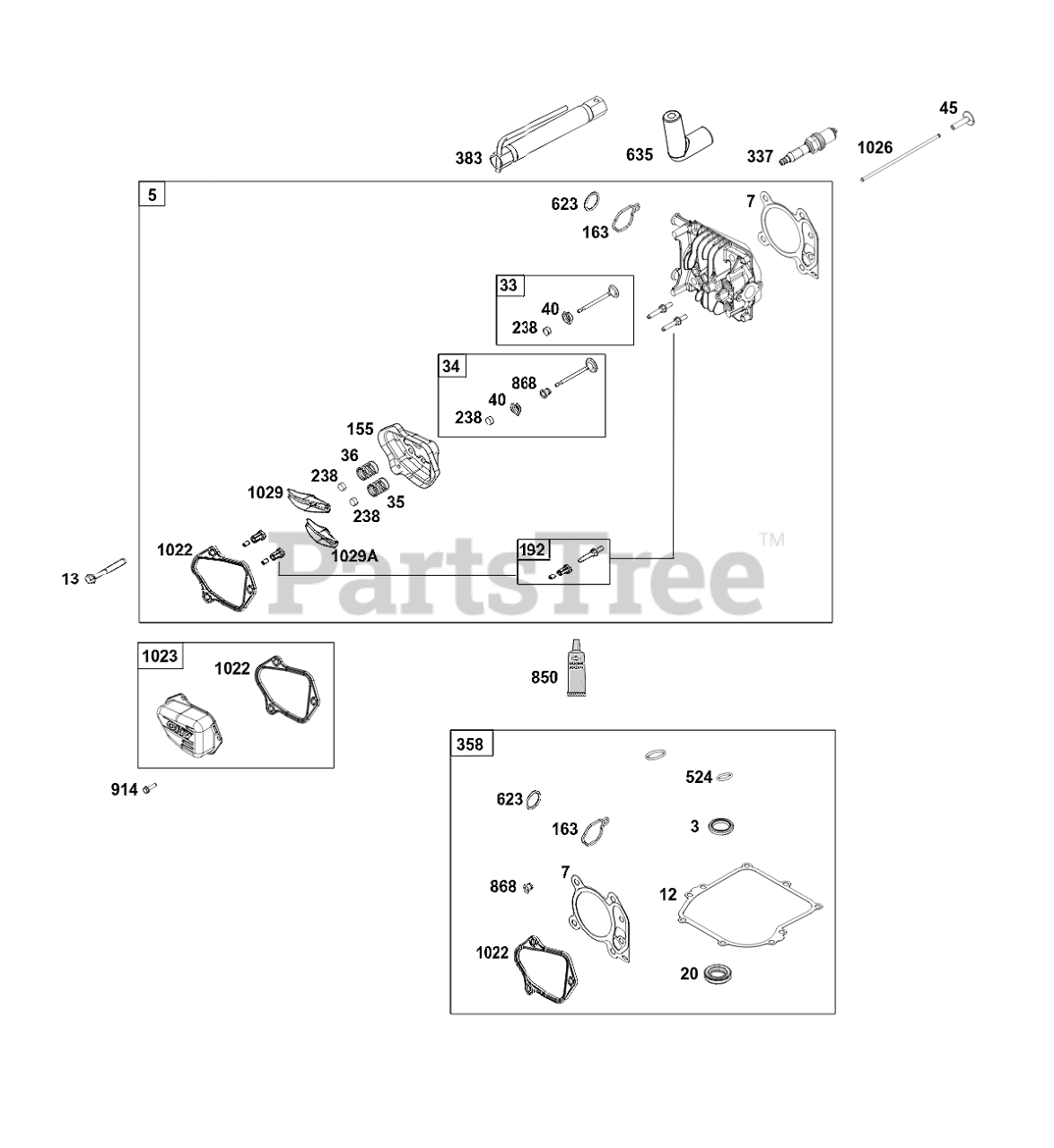

9P702-0191-H5 - Briggs & Stratton Vertical Engine Cylinder Head Group Parts Diagram

Vertical Engine

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 84001270

HEAD, Cylinder
(Superseded to 84006585)

$106.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 799586

GASKET, Cylinder Head

$13.99

$

In Stock, only 3 left!

0

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

13

Briggs & Stratton 590512

SCREW

Note: (Cylinder Head)

$3.99

$

In Stock, only 2 left!

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

33

Briggs & Stratton 590531

VALVE, Exhaust

$32.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 84001987

VALVE, Intake

$22.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 590532

SPRING, Valve

Note: (Intake)

$5.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 590532

SPRING, Valve

Note: (Exhaust)

$5.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 590528

RETAINER, Valve

$5.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 590514

TAPPET, Valve

$8.99

$

Usually ships in 2-12 days

0

155

Briggs & Stratton 590529

PLATE, Cylinder Head

$16.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

192

Briggs & Stratton 590535

ADJUSTER. Rocker Arm

$12.99

$

In Stock, only 1 left!

0

238

Briggs & Stratton 590533

CAP, Valve

$9.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 692051

PLUG, Spark
(Superseded to RC12YC)

$5.49

$

In Stock, Qty 16

0

358

GASKET SET, Engine

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

524

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

623

SEAL, O-Ring

Note: (Part information located in Carburetor Group.)

$

$

Not available

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 84001271

SEAL, Valve

$12.99

$

In Stock, only 1 left!

0

914

Briggs & Stratton 591103

SCREW

Note: (Rocker Cover)

$4.49

$

In Stock, Qty 6

0

1022

Briggs & Stratton 595341

GASKET, Rocker Cover
(Superseded to 84006580)

$6.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 590513

COVER, Rocker
(Superseded to 595349)

$12.99

$

In Stock, only 1 left!

0

1026

Briggs & Stratton 590515

ROD, Push

$11.99

$

In Stock, only 2 left!

0

1029

Briggs & Stratton 590526

ARM, Rocker

$10.99

$

Usually ships in 2-12 days

0

1029A

Briggs & Stratton 590527

ARM, Rocker

$10.99

$

Usually ships in 2-12 days

0
