9P602-0109-H1 - Briggs & Stratton Vertical Engine Carburetor Parts Diagram

Vertical Engine

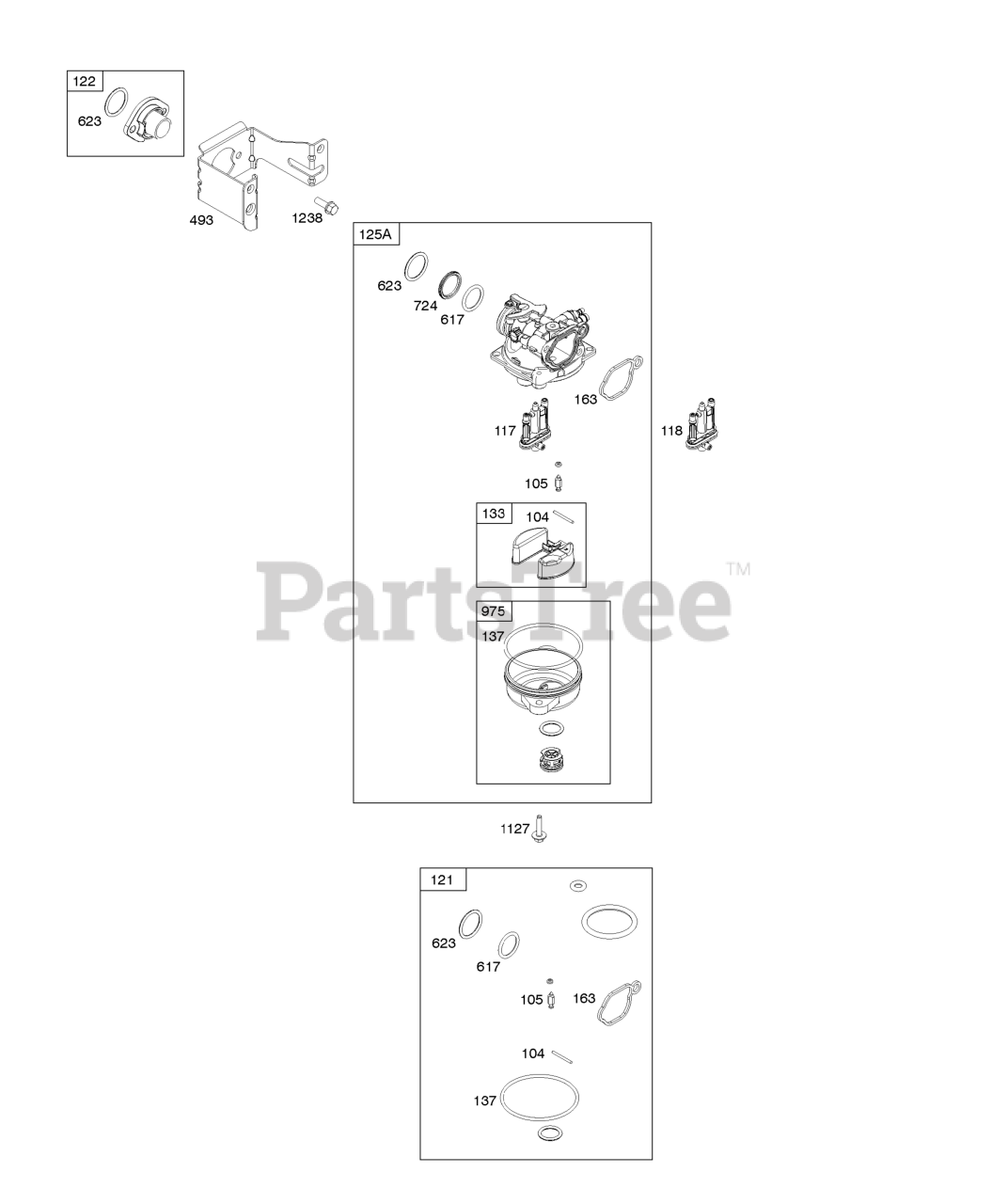

Carburetor Parts Diagram

  • Title

104

Briggs & Stratton 590558

PIN, Float Hinge

$4.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 594581

VALVE, Float Needle

$7.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 596523

JET, Main

Note: (Standard) Used Before Code Date 18070100

$12.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 84001990

JET, Main

Note: (Standard) Used After Code Date 18063000

$14.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 597108

JET, Main

Note: (High Altitude) Used Before Code Date 18070100

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 84001991

JET, Main

Note: (High Altitude) Used After Code Date 18063000

$14.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 590589

KIT, Carburetor Overhaul

Note: Used Before Code Date 15030900

$37.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 594636

KIT, Carburetor Overhaul

Note: Used After Code Date 15030800

$35.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 590549

SPACER, Carburetor

$10.99

$

In Stock, only 1 left!

0

125A

Briggs & Stratton 591160

CARBURETOR

Note: Used Before Code Date 18070100

$57.99

$

Usually ships in 2-12 days

0

125A

Briggs & Stratton 84001029

CARBURETOR

Note: Used After Code Date 18063000

$60.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 591120

FLOAT, Carburetor

$13.99

$

In Stock, only 1 left!

0

137

Briggs & Stratton 593235

GASKET, Float Bowl

Note: (Pack of 5) Used Before Code Date 15030900

$14.99

$

In Stock, Qty 10

0

137

Briggs & Stratton 594633

GASKET, Float Bowl

Note: (Pack of 5) Used After Code Date 15030800

$15.99

$

In Stock, only 2 left!

0

163

Briggs & Stratton 799580

GASKET, Air Cleaner

Note: (Air Cleaner)

$5.99

$

In Stock, only 1 left!

0

493

Briggs & Stratton 593330

BRACKET, Mounting

Note: (Carburetor)

$9.99

$

In Stock, only 1 left!

0

617

Briggs & Stratton 270344S

SEAL, O-Ring

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 20+

0

623

Briggs & Stratton 799581

SEAL, O-Ring

Note: (Carburetor Spacer)

$4.99

$

In Stock, only 1 left!

0

724

Briggs & Stratton 697478

RETAINER, Seal

$4.99

$

In Stock, Qty 20+

0

975

Briggs & Stratton 591492

BOWL, Float

Note: Used Before Code Date 15030900

$

$

Not available

975

Briggs & Stratton 594632

BOWL, Float

Note: Used After Code Date 15030800

$17.99

$

In Stock, only 3 left!

0

1127

Briggs & Stratton 590554

SCREW

Note: (Float Bowl to Carburetor Body)

$3.99

$

Usually ships in 2-12 days

0

1238

Briggs & Stratton 590562

SCREW

Note: (Carburetor Spacer)

$3.49

$

In Stock, Qty 20+
