9P602-0022-H5 - Briggs & Stratton Vertical Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Vertical Engine

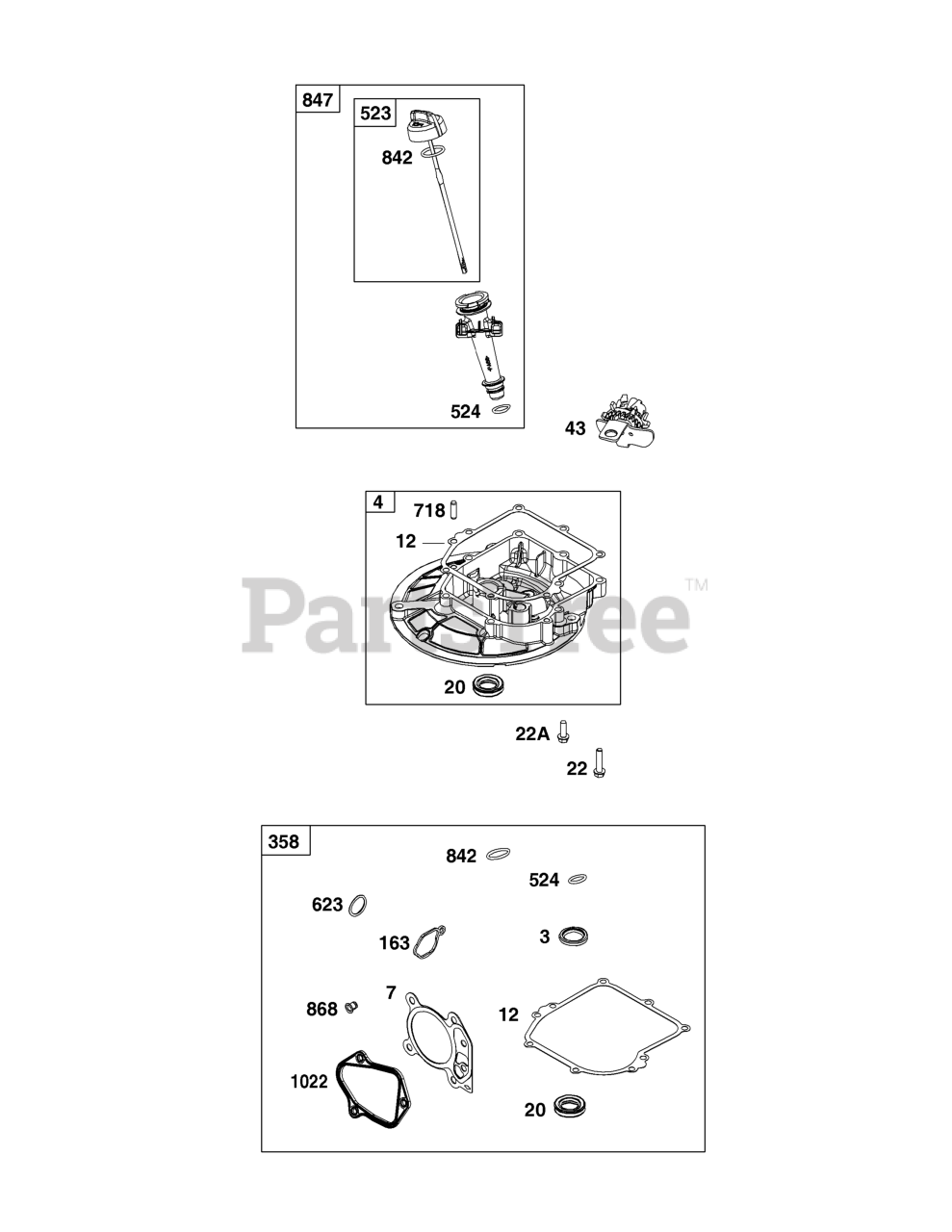

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

4

Briggs & Stratton 84002141

SUMP, Engine

$104.99

$

In Stock, Qty 5

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

Briggs & Stratton 799587

GASKET, Crankcase

$9.49

$

In Stock, Qty 20+

0

20

Briggs & Stratton 391483S

SEAL, Oil

Note: (PTO Side)

$5.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 692551

SCREW

Note: (Crankcase Cover/Sump)

$3.99

$

In Stock, only 2 left!

0

22A

Briggs & Stratton 590763

SCREW

Note: (Crankcase Cover/Sump)

$3.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 594560

SLINGER, Governor/Oil

$11.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

358

Briggs & Stratton 84001272

GASKET SET, Engine
(Superseded to 84006586)

$38.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 796503

DIPSTICK

$14.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691876

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 11

0

623

SEAL, O-Ring

Note: (Part information located in Carburetor Group.)

$

$

Not available

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Cap)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 590572

DIPSTICK/TUBE ASSEMBLY

$25.99

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available
