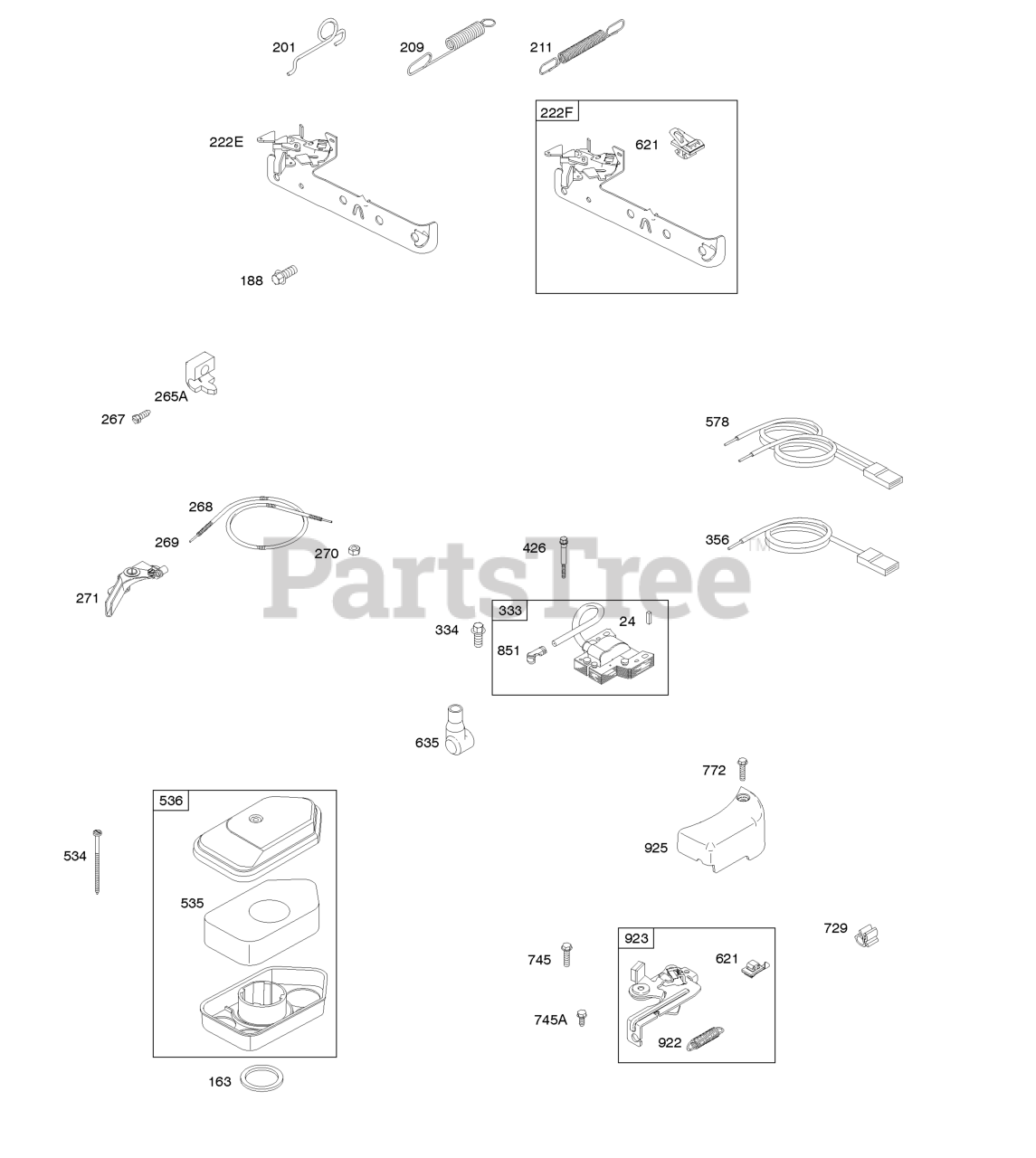

9L502-0699-F1 - Briggs & Stratton Vertical Engine Air Cleaner, Brake, Controls, Covers, Governor Spring, Ignition Parts Diagram

Vertical Engine

Air Cleaner, Brake, Controls, Covers, Governor Spring, Ignition Parts Diagram

  • Title

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 271139S

Gasket-Air Cleaner

$3.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 692198

Screw

Note: (Control Bracket)

$5.99

$

In Stock, Qty 11

0

201

Briggs & Stratton 690347

Link-Air Vane

$5.99

$

In Stock, Qty 10

0

209

Briggs & Stratton 690251

Spring-Governor

$6.99

$

In Stock, only 3 left!

0

211

Briggs & Stratton 691859

Spring-Governed Idle

$6.99

$

In Stock, Qty 20+

0

222E

Briggs & Stratton 691446

Bracket-Control

$39.99

$

In Stock, only 4 left!

0

267

Briggs & Stratton 691044

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 4 left!

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 793281

Armature-Magneto
(Superseded to 591420)

Note: (Slide On Spark Plug Boot)

$53.99

$

In Stock, only 2 left!

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

426

Briggs & Stratton 691107

Screw

Note: (Governor Blade)

$3.99

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 691417

Screw

Note: (Air Cleaner)

$5.99

$

In Stock, only 3 left!

0

535

Briggs & Stratton 698369

Filter-Air Cleaner Foam

$5.99

$

In Stock, Qty 10

0

536

Briggs & Stratton 698472

Cleaner-Air

$

$

Not available

578

Briggs & Stratton 398153

Wire Assembly

$21.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

Note: (Slip On Style)

$3.99

$

In Stock, Qty 5

0

729

Briggs & Stratton 690586

Clip-Wire

$3.99

$

In Stock, only 3 left!

0

745

Briggs & Stratton 691146

Screw

Note: (Brake) (7/8" Long)

$3.99

$

Usually ships in 2-12 days

0

745A

Briggs & Stratton 690859

Screw

Note: (Brake) (1/2" Long)

$3.99

$

In Stock, Qty 8

0

772

Briggs & Stratton 691111

Screw

Note: (Linkage Cover)

$3.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

922

Briggs & Stratton 692135

Spring-Brake

$8.49

$

In Stock, Qty 13

0

923

Briggs & Stratton 691487

Brake

$34.99

$

In Stock, only 1 left!

0

925

Briggs & Stratton 691349

Cover-Linkage

$6.49

$

Usually ships in 2-12 days

0
