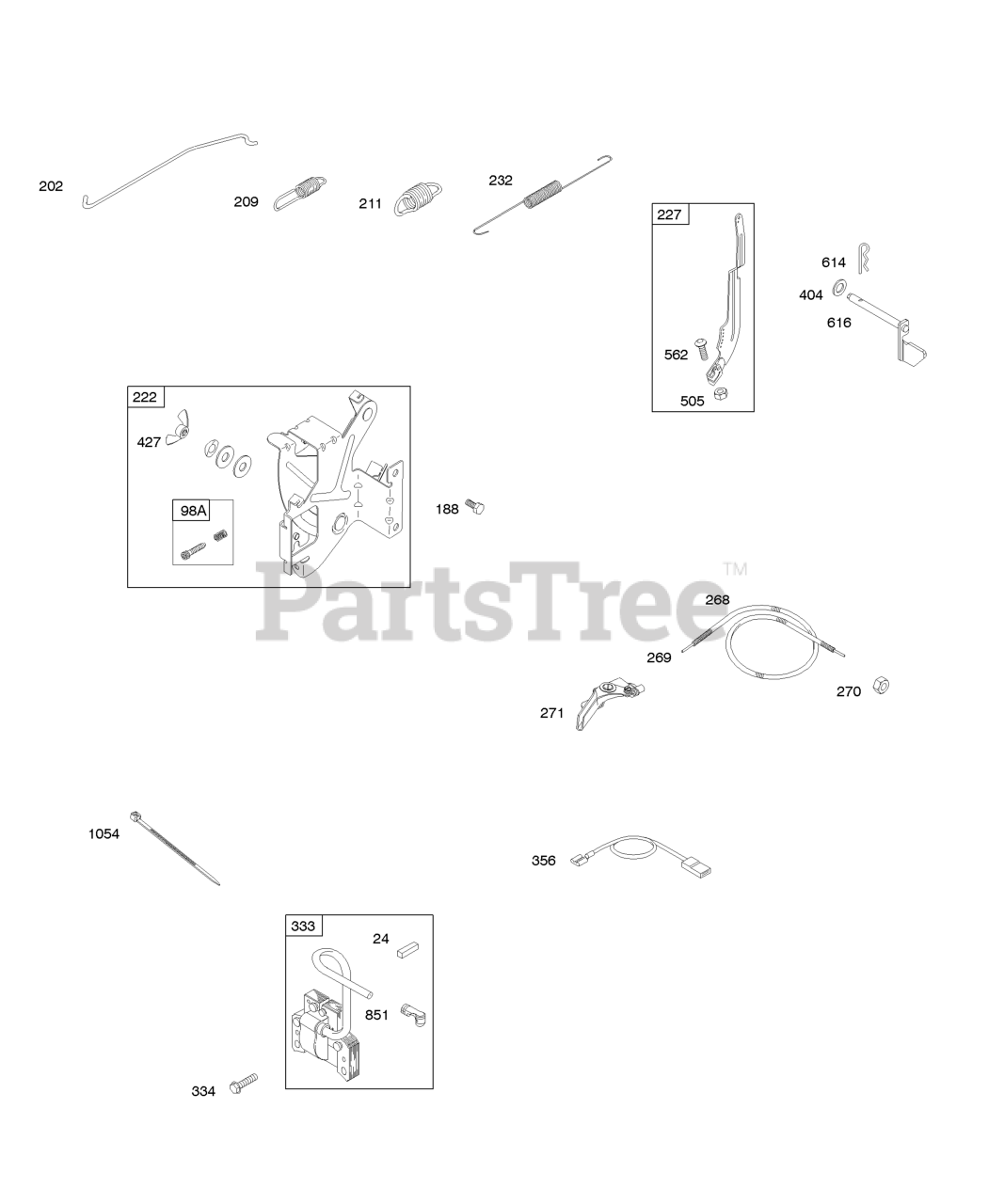

9K432-0024-01 - Briggs & Stratton Horizontal Engine Controls, Springs, Ignition Parts Diagram

Horizontal Engine

Controls, Springs, Ignition Parts Diagram

  • Title

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

98A

Briggs & Stratton 493280

Kit-Idle Speed

Note: (Control Bracket)

$8.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691637

Screw

Note: (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 692351

Link-Mechanical Governor

$8.49

$

In Stock, only 1 left!

0

209

Briggs & Stratton 691857

Spring-Governor

Note: (Silver)

$7.99

$

In Stock, only 2 left!

0

211

Briggs & Stratton 691849

Spring-Governed Idle

$8.99

$

In Stock, only 1 left!

0

222

Briggs & Stratton 691411

Bracket-Control

$25.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 691412

Lever-Governor Control

$14.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 691846

Spring-Governor Link

$11.99

$

In Stock, only 3 left!

0

268

Briggs & Stratton 691072

Casing-Control Wire
(Superseded to 691025)

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 496914

Armature-Magneto
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 693010

Wire-Stop

$11.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

427

Briggs & Stratton 690355

Nut

Note: (Control Bracket)

$3.49

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692016

Crank-Governor

$

$

Not available

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0
