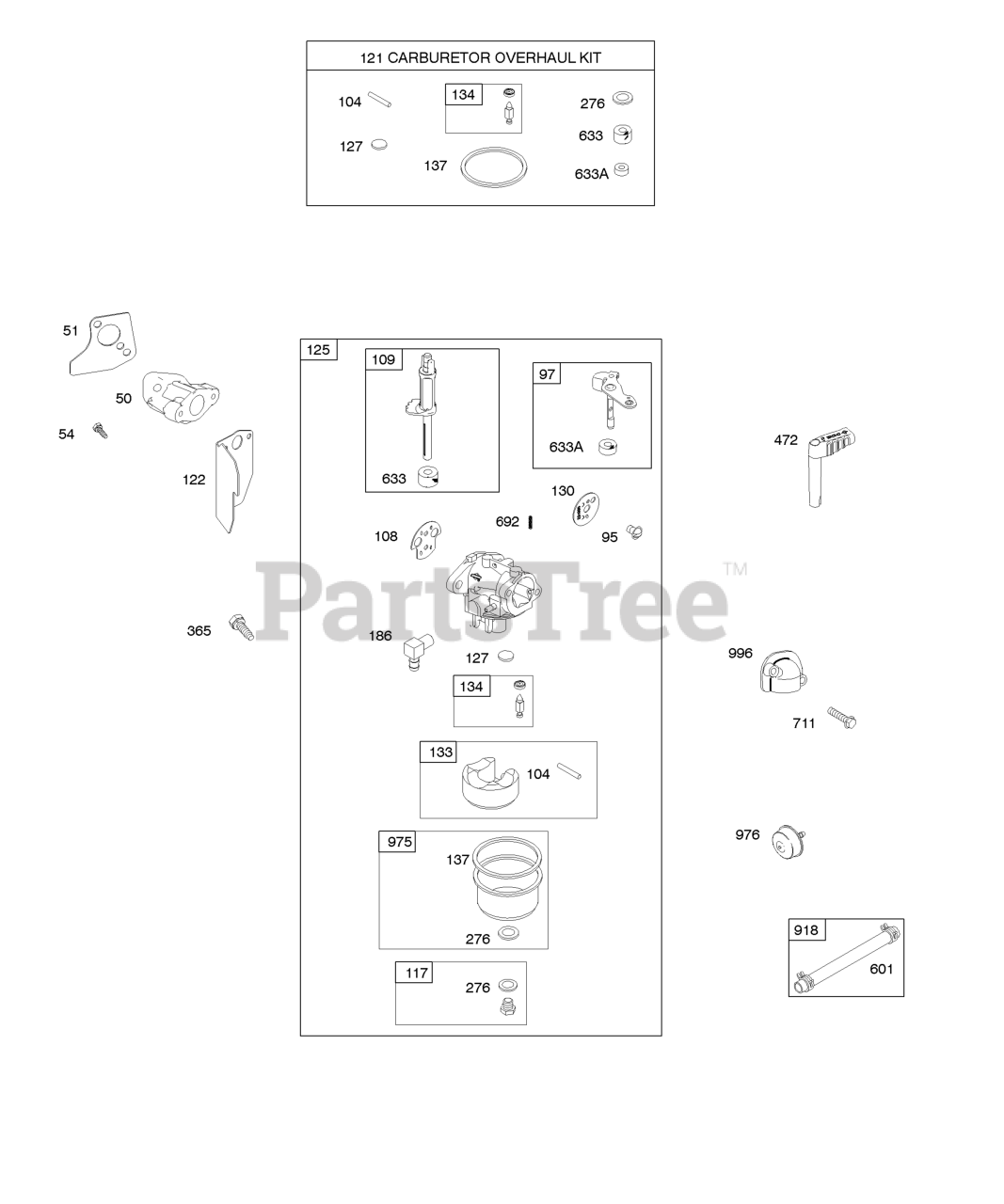

9A413-0201-E1 - Briggs & Stratton Horizontal Engine Carburetor, Carburetor Overhaul Kit Parts Diagram

Horizontal Engine

Carburetor, Carburetor Overhaul Kit Parts Diagram

  • Title

50

Briggs & Stratton 691922

Manifold-Intake

$

$

Not available

51

Briggs & Stratton 273113S

Gasket-Intake

$4.49

$

In Stock, Qty 19

0

54

Briggs & Stratton 691689

Screw

Note: (Intake Manifold)

$4.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 496861

Shaft-Throttle

$16.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Float Hinge
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

108

Briggs & Stratton 695807

Valve-Choke
(Superseded to 796993)

$9.49

$

In Stock, only 2 left!

0

109

Briggs & Stratton 695729

Shaft-Choke

$30.99

$

In Stock, only 1 left!

0

117

Briggs & Stratton 498978

Jet-Main

Note: (Standard)

$

$

Not available

121

Briggs & Stratton 498260

Kit-Carb Overhaul

$16.99

$

In Stock, Qty 20+

0

122

Briggs & Stratton 699086

Spacer-Carburetor

$13.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 699103

Carburetor

$

$

Not available

127

Briggs & Stratton 694468

Plug-Welch

$4.49

$

In Stock, only 3 left!

0

130

Briggs & Stratton 691203

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

186

Briggs & Stratton 692317

Connector-Hose

$6.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.99

$

In Stock, Qty 8

0

365

Briggs & Stratton 691688

Screw

Note: (Carburetor)

$4.49

$

In Stock, only 2 left!

0

472

Briggs & Stratton 791534

Knob-Choke Shaft
(Superseded to 790553)

Note: Used After Code Date 05042800

$19.99

$

In Stock, only 3 left!

0

472

Briggs & Stratton 699100

Knob-Choke Shaft
(Superseded to 790553)

Note: Used Before Code Date 05042900

$19.99

$

In Stock, only 3 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 693867

Seal-Choke/Thr Shaft

Note: (Choke)

$4.99

$

In Stock, only 2 left!

0

633A

Briggs & Stratton 691321

Seal-Choke/Thr Shaft

Note: (Throttle)

$4.99

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

$5.49

$

In Stock, Qty 11

0

711

Briggs & Stratton 699470

Screw

Note: (Carburetor Shield)

$3.49

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 791880

Hose-Vacuum

$11.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available

976

Briggs & Stratton 394281S

Primer-Carburetor

$16.99

$

Usually ships in 2-12 days

0

996

Briggs & Stratton 699099

Shield-Carburetor

$8.49

$

Usually ships in 2-12 days

0
