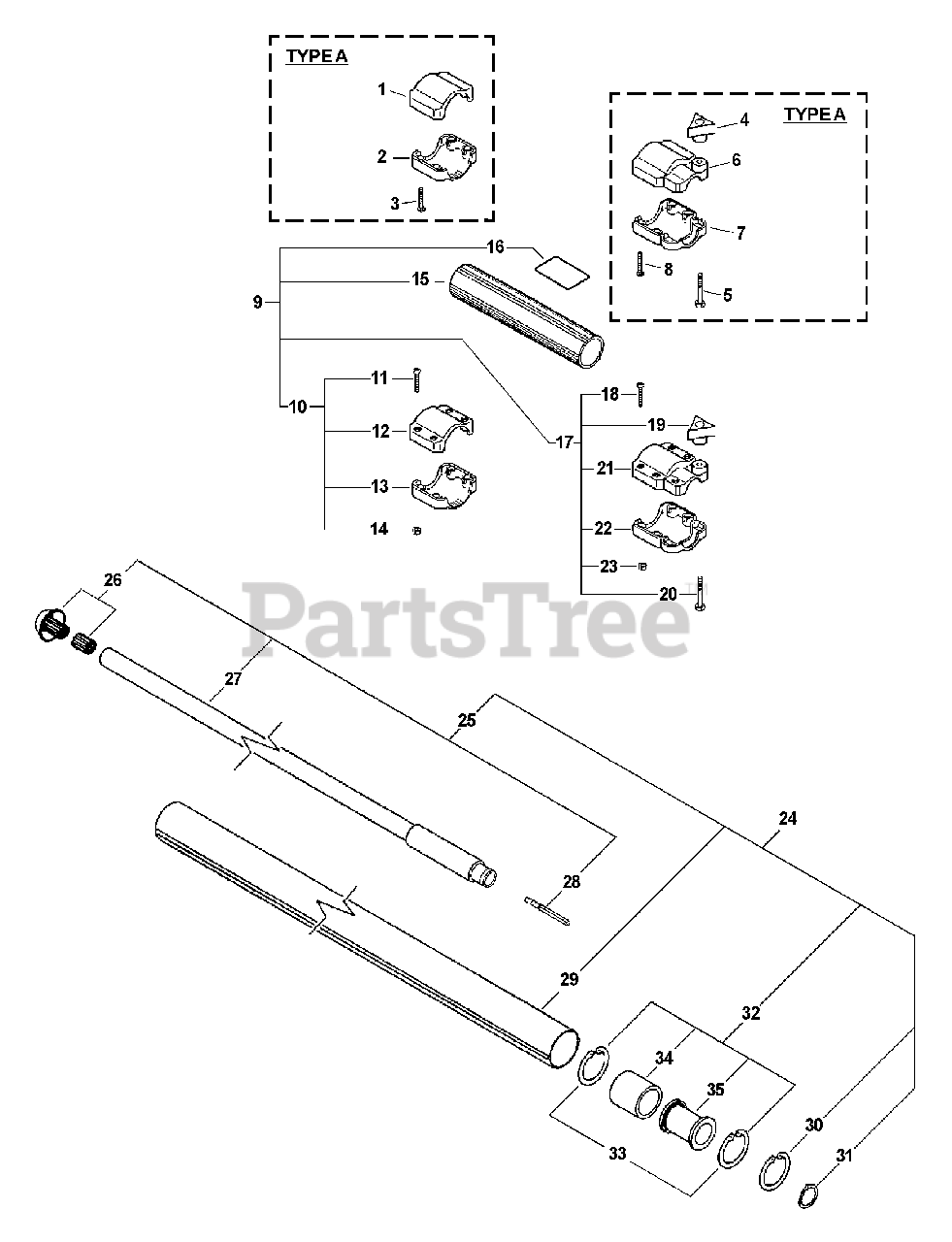

99946400020 - Echo 5' Power Pruner Orange Extension 5" Extension Parts Diagram

5' Power Pruner Orange Extension

5" Extension Parts Diagram

  • Title

1

------------------

CLAMP, FRONT - UPPER

Note: ITEM IS NO LONGER AVAILABLE. USE ITEM 10

$

$

Not available

2

------------------

CLAMP, FRONT - LOWER

Note: ITEM IS NO LONGER AVAILABLE. USE ITEM 10

$

$

Not available

3

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 12

0

4

Echo 13040622360

THUMBSCREW

$5.99

$

In Stock, Qty 20+

0

5

Echo V204000090

SCREW

$0.99

$

In Stock, Qty 19

0

6

------------------

COLLAR, MAIN PIPE - UPPER

Note: ITEM IS NO LONGER AVAILABLE. USE ITEM 17

$

$

Not available

7

------------------

COLLAR, MAIN PIPE - LOWER

Note: ITEM IS NO LONGER AVAILABLE. USE ITEM 17

$

$

Not available

8

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 12

0

9

Echo 60520622460

MAIN PIPE ASSY - BLACK
(Superseded to Discontinued)

Note: Includes ITEMS 10-23

$

$

Not available

10

Echo 61029522560

FRONT CLAMP ASSY

Note: Includes ITEMS 11-14

$36.99

$

Usually ships in 2-4 days

0

11

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 12

0

12

Echo 61029522660

COLLAR, MAIN PIPE - UPPER

$18.99

$

Usually ships in 2-4 days

0

13

Echo 61029522760

COLLAR, MAIN PIPE - LOWER

$11.99

$

Usually ships in 2-4 days

0

14

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 20+

0

15

Echo 61022222560

PIPE, MAIN - BLACK
(Superseded to Discontinued)

$

$

Not available

16

Echo 89011522260

LABEL - CAUTION

$2.49

$

Usually ships in 2-4 days

0

17

Echo 61029522360

COLLAR ASSY

Note: INCLUDES ITEMS 18-23

$42.99

$

Usually ships in 2-4 days

0

18

Echo 90005300400

SCREW - 10-24 X 1-1/4"

$0.99

$

In Stock, Qty 12

0

19

Echo 13040622360

THUMBSCREW

$5.99

$

In Stock, Qty 20+

0

20

Echo V204000090

SCREW

$0.99

$

In Stock, Qty 19

0

21

Echo 61028222460

COLLAR, MAIN PIPE - UPPER

$16.99

$

In Stock, only 4 left!

0

22

Echo 61028222360

COLLAR, MAIN PIPE - LOWER

$27.99

$

In Stock, only 4 left!

0

23

Echo 90003150100

LOCKNUT - 10-24

$0.99

$

In Stock, Qty 20+

0

24

Echo 61029922160

MAIN PIPE ASSY - YELLOW
(Superseded to Discontinued)

Note: INCLUDES ITEMS 25-35

$

$

Not available

25

Echo 61000622160

DRIVESHAFT ASSY - UPPER
(Superseded to Discontinued)

Note: INCLUDES ITEMS 26-28

$

$

Not available

26

Echo 61029822360

ADAPTER, DRIVESHAFT - UPPER

$3.99

$

Usually ships in 2-4 days

0

27

Echo 61000622260

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

28

Echo 61002522360

CONNECTOR, SHAFT
(Superseded to 61002522361)

$5.99

$

In Stock, only 2 left!

0

29

Echo 61029922060

MAIN PIPE ASSY - YELLOW

$109.99

$

Usually ships in 2-4 days

0

30

Echo 61033522360

RING, RETAINING

$1.49

$

Usually ships in 2-4 days

0

31

Echo 10022922460

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

32

Echo 43330722360

DRIVESHAFT GUIDE ASSY
(Superseded to 43330722361)

Note: INCLUDES ITEMS 33-35

$15.99

$

Usually ships in 2-4 days

0

33

Echo 61033522360

RING, RETAINING

$1.49

$

Usually ships in 2-4 days

0

34

Echo 10429222360

PAD, FOAM

$0.99

$

Usually ships in 2-4 days

0

35

Echo 43334522360

GUIDE, DRIVESHAFT
(Superseded to 43334522361)

$10.99

$

In Stock, only 4 left!

0
