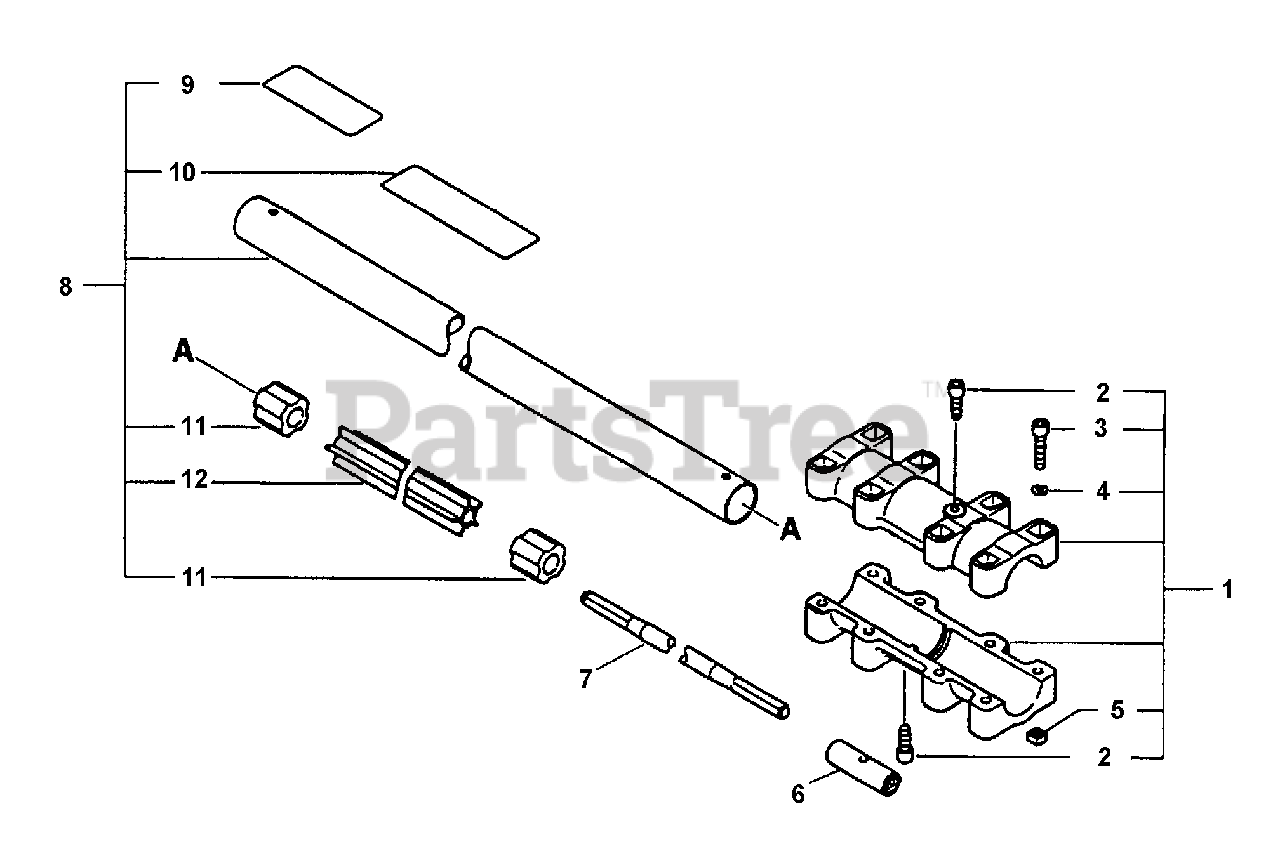

99945200030 - Echo 2.5' Shaft Extension 2-1/2 Foot Extension Parts Diagram

2.5' Shaft Extension

2-1/2 Foot Extension Parts Diagram

  • Title

1

Echo 61060252130

CLAMP, MAIN PIPE
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2 - 5

$

$

Not available

2

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

3

Echo 90010505025

SCREW - 5X25

$1.49

$

In Stock, Qty 19

0

4

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

5

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

6

Echo 61001252130

CONNECTOR, SHAFT
(Superseded to Discontinued)

$

$

Not available

7

Echo 61001352130

DRIVESHAFT - FLEXIBLE

$11.99

$

Usually ships in 2-4 days

0

8

Echo 61020452130

MAIN PIPE ASSY

Note: INCLUDES ITEMS 9-12

$38.99

$

In Stock, only 2 left!

0

9

Echo 89016055330

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

10

Echo 89017854331

LABEL - CAUTION

$1.99

$

Usually ships in 2-4 days

0

11

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

12

Echo 61021752130

LINER - FLEXIBLE

$9.49

$

Usually ships in 2-4 days

0
