99944200562 - Echo U-Handle Blade Conversion Combo Kit U-Handle Combo Kit PN 99944200562 Parts Diagram

U-Handle Blade Conversion Combo Kit

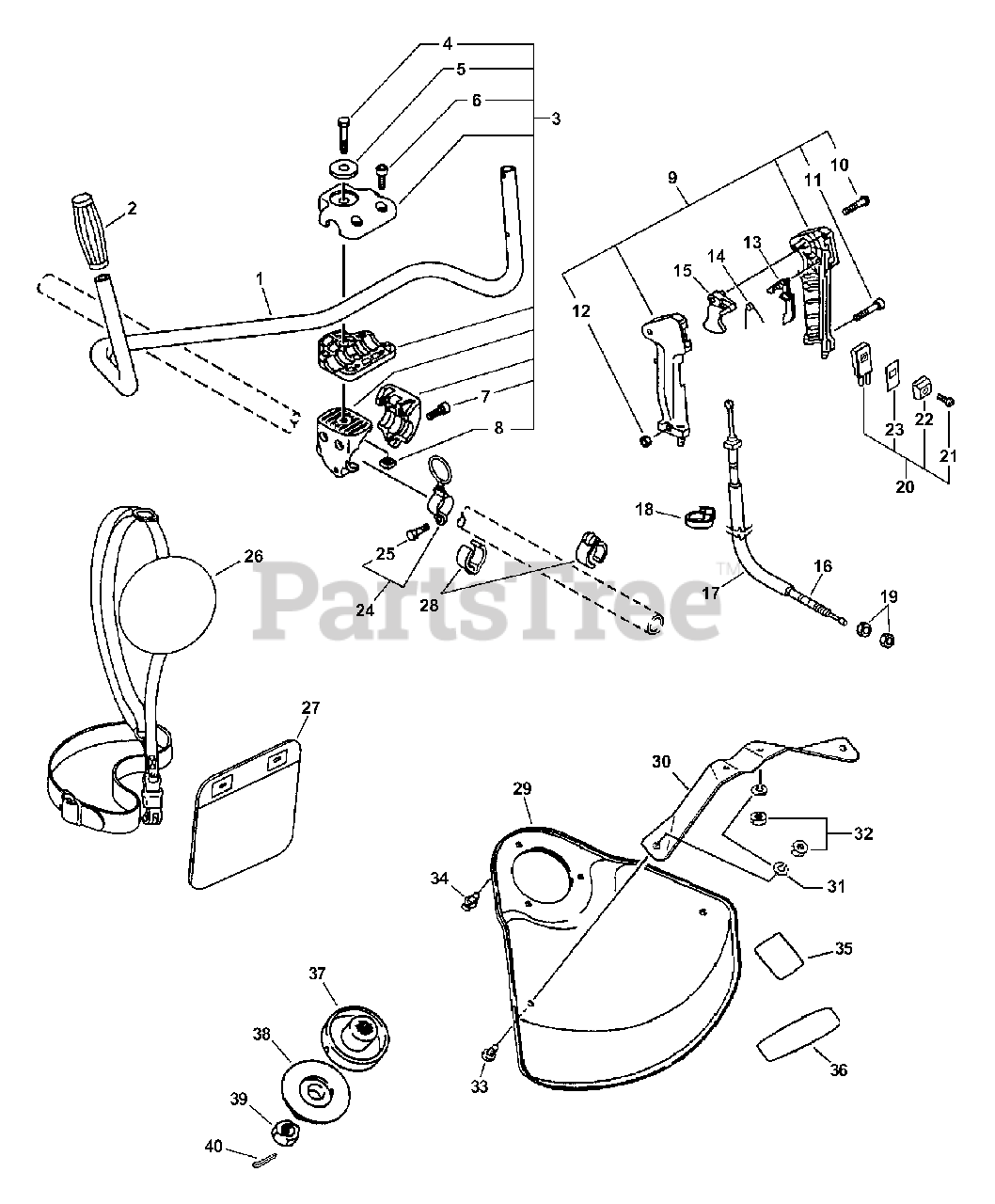

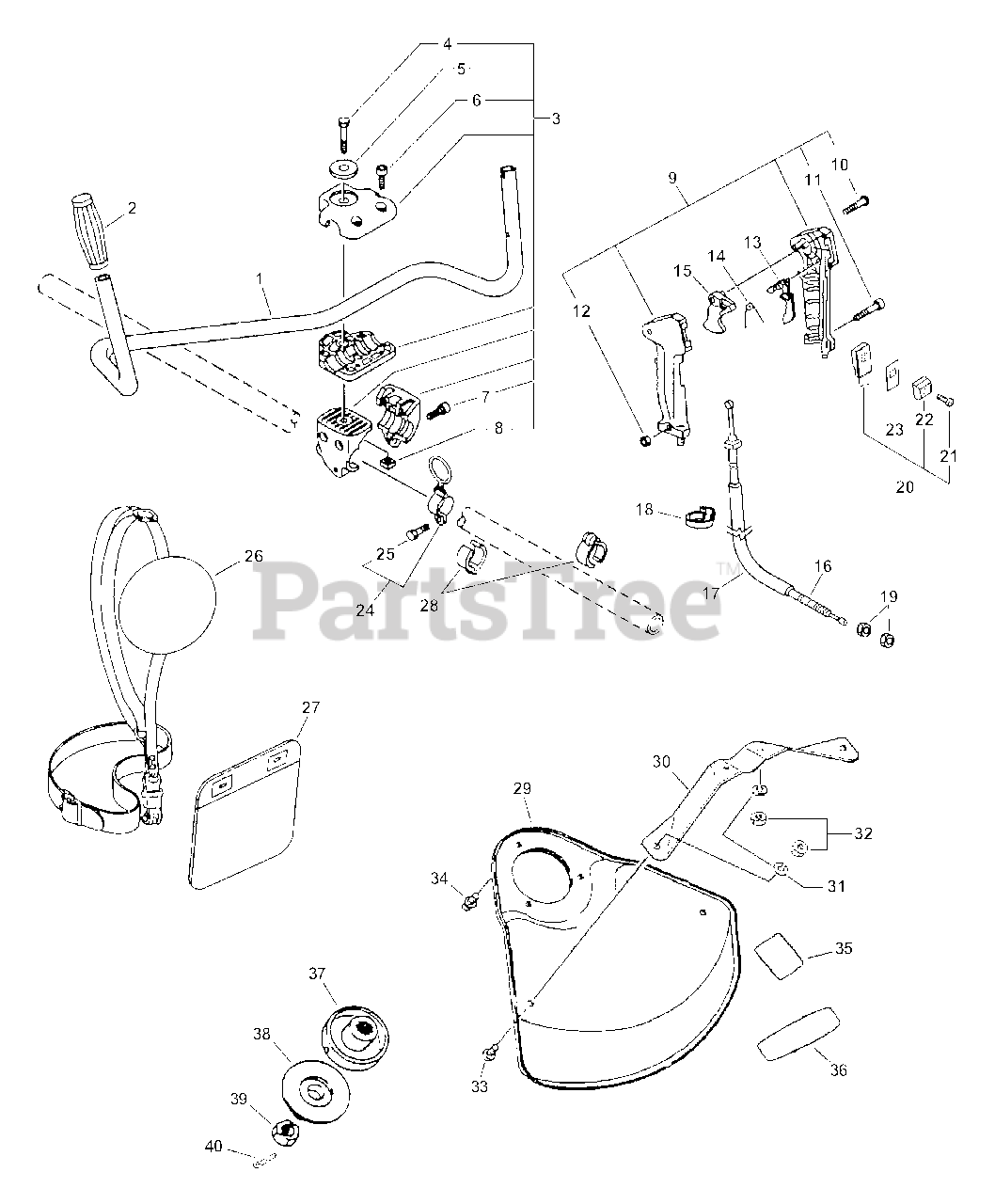

U-Handle Combo Kit PN 99944200562 Parts Diagram

  • Title

1

Echo C400000000

HANDLE - FRONT

$95.99

$

Usually ships in 2-4 days

0

2

Echo 35131102330

GRIP, HANDLE - LEFT

$6.49

$

In Stock, only 3 left!

0

3

Echo P021012791

HANDLE BRACKET KIT

Note: INCLUDES ITEMS 4-8

$88.99

$

Usually ships in 2-4 days

0

4

Echo 35142152130

BOLT - 8X55

$2.99

$

Usually ships in 2-4 days

0

5

Echo 60501454230

WASHER - 8

$3.49

$

Usually ships in 2-4 days

0

6

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

7

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

8

Echo 90056550008

NUT - 8

$1.49

$

Usually ships in 2-4 days

0

9

Echo 35110247530

THROTTLE CONTROL ASSY

Note: Includes ITEMS 10-12

$34.99

$

In Stock, only 1 left!

0

10

Echo 90024603025

SCREW - 3X25

$0.99

$

Usually ships in 2-4 days

0

11

Echo 90022005030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

12

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 17801205960

LOCKOUT, THROTTLE

$5.99

$

In Stock, only 1 left!

0

14

Echo 17801335631

SPRING, LOCKOUT LEVER

$2.49

$

In Stock, Qty 10

0

15

Echo 17801005960

TRIGGER, THROTTLE

$5.49

$

In Stock, Qty 5

0

16

Echo V430000160

CABLE, THROTTLE

$11.99

$

Usually ships in 2-4 days

0

17

Echo V475000000

TUBE, PROTECTIVE - CORRUGATED

$5.49

$

Usually ships in 2-4 days

0

18

Echo 15911209961

CLIP

$3.99

$

Usually ships in 2-4 days

0

19

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

20

Echo A440000300

IGNITION SWITCH ASSY

$10.99

$

Usually ships in 2-4 days

0

21

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

22

Echo 16341049231

KNOB, SWITCH - ORANGE

$3.99

$

In Stock, Qty 20+

0

23

Echo 89015712330

COVER, SWITCH - STOP

$3.49

$

In Stock, Qty 13

0

24

Echo C646000060

HANGER KIT
(Superseded to P021046740)

Note: Includes ITEM 25

$3.49

$

In Stock, Qty 20+

0

25

Echo 90010005012

BOLT - 5X12

$0.99

$

In Stock, Qty 5

0

26

Echo C062000070

HARNESS ASSY
(Superseded to C062000310)

$21.99

$

In Stock, only 1 left!

0

27

Echo C652000000

CUSHION

$24.99

$

Usually ships in 2-4 days

0

28

Echo 22492452130

CLIP

$6.99

$

In Stock, only 1 left!

0

29

Echo C550000200

SHIELD, DEBRIS - METAL

$14.99

$

In Stock, Qty 6

0

30

Echo C551000040

BRACKET, SHIELD
(Superseded to Discontinued)

$

$

Not available

31

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

32

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

33

Echo 90022005008

SCREW - 5X8

$0.99

$

In Stock, Qty 12

0

34

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

35

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 8

0

36

Echo 89016841031

LABEL - DANGER

$2.49

$

Usually ships in 2-4 days

0

37

Echo C535000330

ADAPTOR, BLADE - UPPER

$16.99

$

In Stock, only 3 left!

0

38

Echo C535000150

ADAPTOR, BLADE - LOWER

$9.49

$

In Stock, only 2 left!

0

39

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 6

0

40

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

Echo 99944200562

U-HANDLE/BLADE COMBO KIT

$

$

Not available
