99944200532 - Echo Power Pruner Attachment (SN: S06800001001 - S06800999999) Gear Case, Auto-Oiler Parts Diagram

Power Pruner Attachment

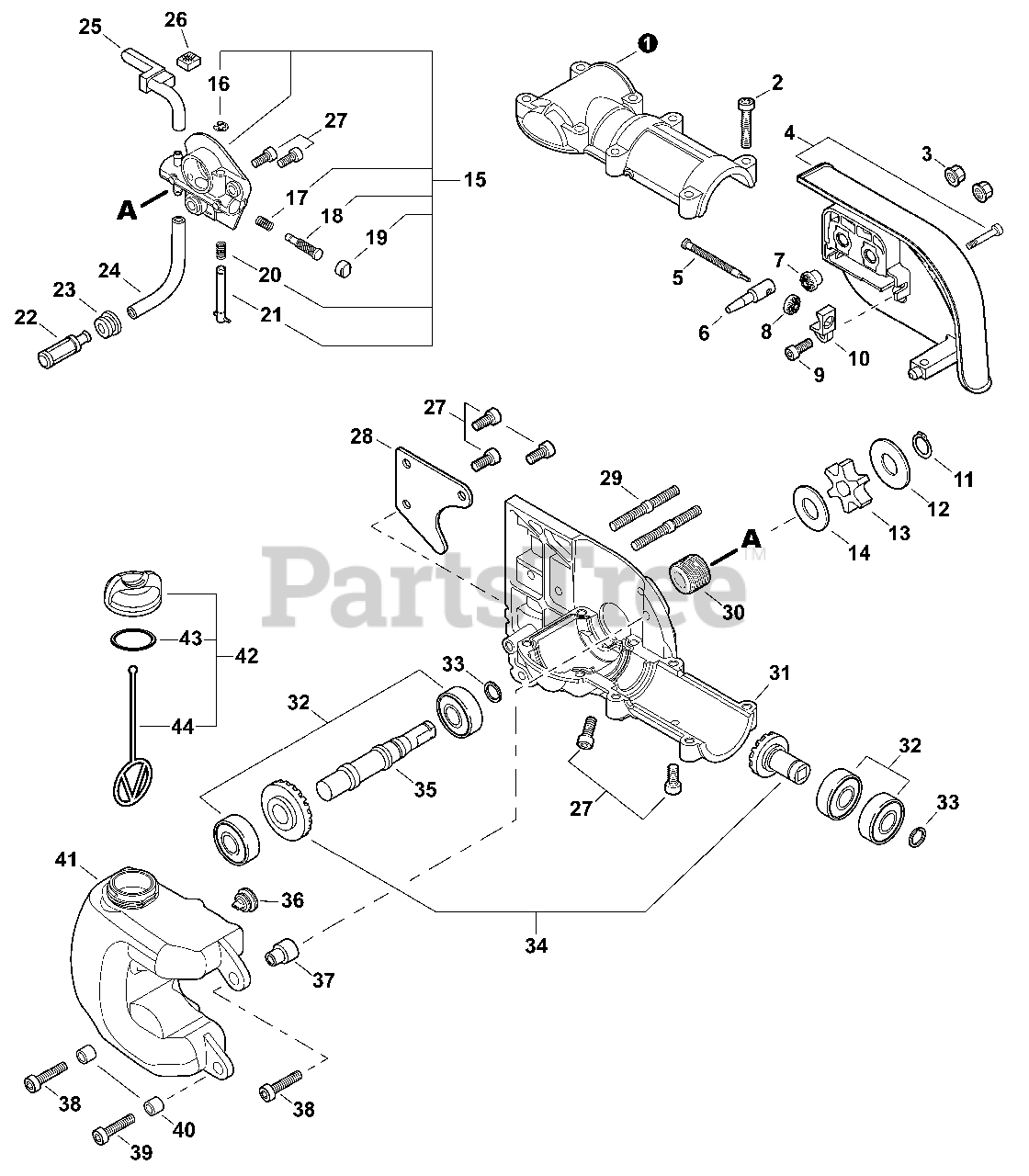

Gear Case, Auto-Oiler Parts Diagram

  • Title

1

Echo C531000010

COVER, GEAR CASE

$87.99

$

In Stock, only 1 left!

0

2

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo 43301903933

NUT, FLANGE M6

$1.49

$

In Stock, Qty 20+

0

4

Echo C300000920

GUARD, SPROCKET
(Superseded to C300000921)

$7.49

$

In Stock, Qty 5

0

5

Echo V203000041

BOLT 5

$5.99

$

In Stock, Qty 10

0

6

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

7

Echo V651000320

GEAR - 14 TOOTH

$1.99

$

In Stock, Qty 11

0

8

Echo V651000310

GEAR - 14 TOOTH

$1.49

$

Usually ships in 2-4 days

0

9

Echo V252000040

SCREW 4

$1.49

$

In Stock, Qty 9

0

10

Echo V355000140

COLLAR 8

$0.99

$

In Stock, Qty 20+

0

11

Echo V583000090

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

12

Echo V307000160

WASHER 10

$0.99

$

In Stock, Qty 20+

0

13

Echo C580000070

SPROCKET, DRIVE

$4.99

$

In Stock, Qty 14

0

14

Echo 17501439131

WASHER 10.2×24.5×1.2

$2.49

$

In Stock, only 1 left!

0

15

Echo C022000010

AUTO-OILER ASSY

Note: Includes Items 16-21

$49.99

$

In Stock, Qty 7

0

16

Echo 12532715130

E-RING

$0.99

$

In Stock, Qty 9

0

17

Echo P022010660

SPRING

$1.99

$

In Stock, only 2 left!

0

18

Echo P022010650

PLUNGER ASSY

$11.99

$

In Stock, only 1 left!

0

19

Echo P022010640

CAP, PLUNGER

$0.99

$

In Stock, Qty 9

0

20

Echo P022010670

SPRING

$1.99

$

In Stock, only 4 left!

0

21

Echo P022010680

ADJUSTER, OILER

$7.49

$

Usually ships in 2-4 days

0

22

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

23

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 9

0

24

Echo 13011012330

PIPE 3×6×70
(Superseded to 13011012331)

$0.99

$

In Stock, Qty 8

0

25

Echo V470000180

PIPE, OIL OUTLET
(Superseded to V470000181)

$1.99

$

In Stock, only 4 left!

0

26

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, Qty 20+

0

27

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

28

Echo C649000140

HOOK

$2.49

$

Usually ships in 2-4 days

0

29

Echo V224000040

BOLT, STUD 6

$1.49

$

In Stock, Qty 5

0

30

Echo 43706338330

GEAR, WORM

$14.99

$

In Stock, only 1 left!

0

31

Echo C531000460

CASE, GEAR

$58.99

$

In Stock, only 1 left!

0

32

Echo 9404206001

BEARING, BALL

$9.99

$

In Stock, only 4 left!

0

33

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 10

0

34

Echo P021009731

GEAR SET
(Superseded to P021009732)

$74.99

$

In Stock, only 1 left!

0

35

Echo C534000430

SHAFT, GEAR

$15.99

$

Usually ships in 2-4 days

0

36

Echo 13131406320

VENT ASSY

$5.49

$

In Stock, only 4 left!

0

37

Echo V354000010

COLLAR 6

$6.99

$

Usually ships in 2-4 days

0

38

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

39

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

40

Echo 13104528230

SPACER 6.2×7.8×6

$1.49

$

In Stock, Qty 20+

0

41

Echo C200000081

TANK, OIL

$10.99

$

In Stock, only 4 left!

0

42

Echo P021005592

CAP ASSY

Note: Includes Items 43-44

$4.49

$

In Stock, Qty 20+

0

43

Echo 90072000018

O-RING 18

$1.99

$

In Stock, Qty 20+

0

44

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0
