Echo 99944200532 - Echo Power Pruner Attachment (Original Version) Gear Case, Auto-Oiler Parts Lookup with Diagrams

1

Echo C300000361

GUARD, SPROCKET

(Superseded to C300000920) 

$7.49

$

In Stock, Qty 5

2

Echo V253000180

SCREW - 5X20

$1.49

$

In Stock, Qty 13

3

Echo 43301903933

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 20+

4

Echo V355000140

BRACKET, TENSIONER

$0.99

$

In Stock, Qty 20+

5

Echo V252000040

SCREW - 4X8

$1.49

$

In Stock, Qty 9

6

Echo V203000041

SCREW, TENSIONER

$5.99

$

In Stock, Qty 10

7

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

8

Echo V651000310

GEAR - BEVEL

$1.49

$

Usually ships in 2-4 days

9

Echo V651000320

GEAR - BEVEL

$1.99

$

In Stock, Qty 11

10

Echo V583000090

RING, RETAINING

$0.99

$

In Stock, Qty 20+

11

Echo V307000160

WASHER - 10

$0.99

$

In Stock, Qty 20+

12

Echo C580000070

SPROCKET, DRIVE

$4.99

$

In Stock, Qty 14

13

Echo 17501439131

WASHER

$2.49

$

In Stock, only 1 left!

14

Echo C022000010

AUTO-OILER ASSY

Note: Includes ITEMS 15-21

$49.99

$

In Stock, Qty 7

15

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

16

Echo P022010670

SPRING

$1.99

$

In Stock, only 4 left!

17

Echo 43702937330

WASHER

$2.99

$

Usually ships in 2-4 days

18

Echo P022010680

NEEDLE, ADJUST

$7.49

$

Usually ships in 2-4 days

19

Echo P022010660

SPRING

$1.99

$

In Stock, only 2 left!

20

Echo P022010650

PLUNGER

$11.99

$

In Stock, only 1 left!

21

Echo P022010640

CAP, OIL PUMP

$0.99

$

In Stock, Qty 9

22

Echo V470000180

PIPE, OIL OUTLET

(Superseded to V470000181) 

$1.99

$

In Stock, only 4 left!

23

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, Qty 20+

24

Echo 13011014330

PIPE - 3X6X75 -- BLACK

Note: RePower BULK OPTION: 90014

$2.99

$

In Stock, Qty 7

25

Echo 13211501461

GROMMET

(Superseded to 13211501462) 

$1.49

$

In Stock, Qty 9

26

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

27

Echo V253000200

SCREW - 5X10

$0.99

$

In Stock, Qty 9

28

Echo V652000021

GEAR - WORM

$14.99

$

In Stock, only 1 left!

29

Echo C531000010

CASE, GEAR - UPPER

$87.99

$

In Stock, only 1 left!

30

Echo V253000240

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

31

Echo C531000460

CASE, GEAR - LOWER

Note: Includes ITEMS 32

$58.99

$

In Stock, only 1 left!

32

Echo 90010905010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

33

Echo V224000040

STUD, GUIDE BAR

$1.49

$

In Stock, Qty 5

34

Echo C649000140

HOOK

$2.49

$

Usually ships in 2-4 days

35

Echo V253000200

SCREW - 5X10

$0.99

$

In Stock, Qty 9

36

Echo 90010905010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

37

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

38

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

39

Echo 9404206001

BEARING, BALL - 6001

$9.99

$

In Stock, only 4 left!

40

Echo V651000230

GEAR - BEVEL

$31.99

$

Usually ships in 2-4 days

41

Echo C534000430

GEAR - SHAFT

$15.99

$

Usually ships in 2-4 days

42

Echo V651000201

GEAR - BEVEL

(Superseded to P021009732) 

$74.99

$

In Stock, only 1 left!

43

Echo C200000080

TANK, OIL

(Superseded to C200000081) 

$10.99

$

In Stock, only 4 left!

44

Echo V253000230

SCREW - 5X20

$0.99

$

In Stock, Qty 12

45

Echo V253000240

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

46

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

47

Echo V354000010

SPACER

$6.99

$

Usually ships in 2-4 days

48

Echo 13131406320

VENT

$5.49

$

In Stock, only 4 left!

49

Echo P021014940

CAP ASSY - ORANGE

(Superseded to P021005591) 

Note: Includes ITEMS 50-52

$4.49

$

In Stock, Qty 20+

50

Echo 43601237830

WASHER - RUBBER

$0.99

$

In Stock, Qty 8

51

Echo 90072000018

O-RING - 18

$1.99

$

In Stock, Qty 20+

52

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

53

Echo X502000600

LABEL - ECHO

$1.99

$

Usually ships in 2-4 days

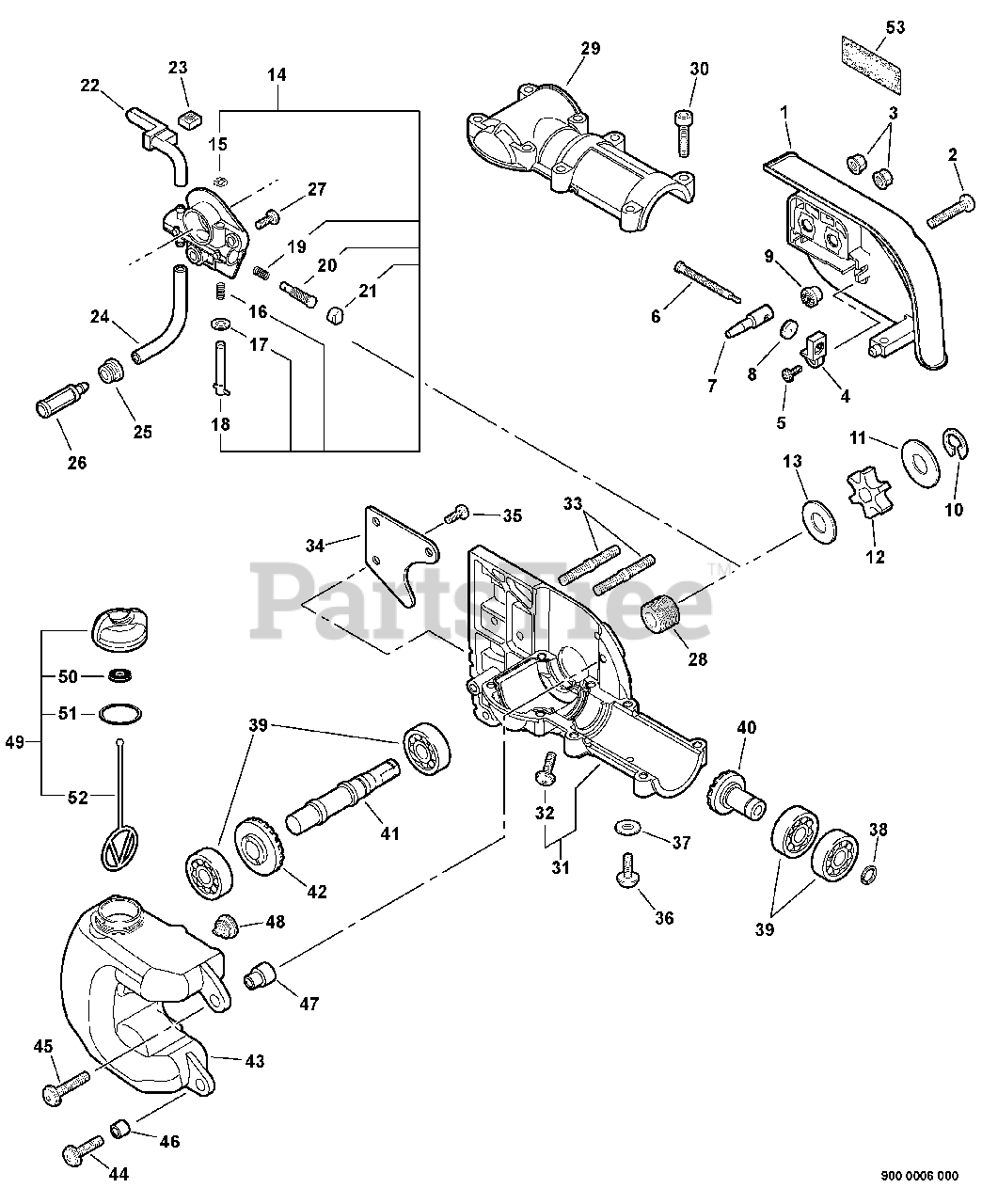

99944200532 - Echo Power Pruner Attachment (Original Version) Gear Case, Auto-Oiler Parts Diagram

Gear Case, Auto-Oiler Parts Diagram
