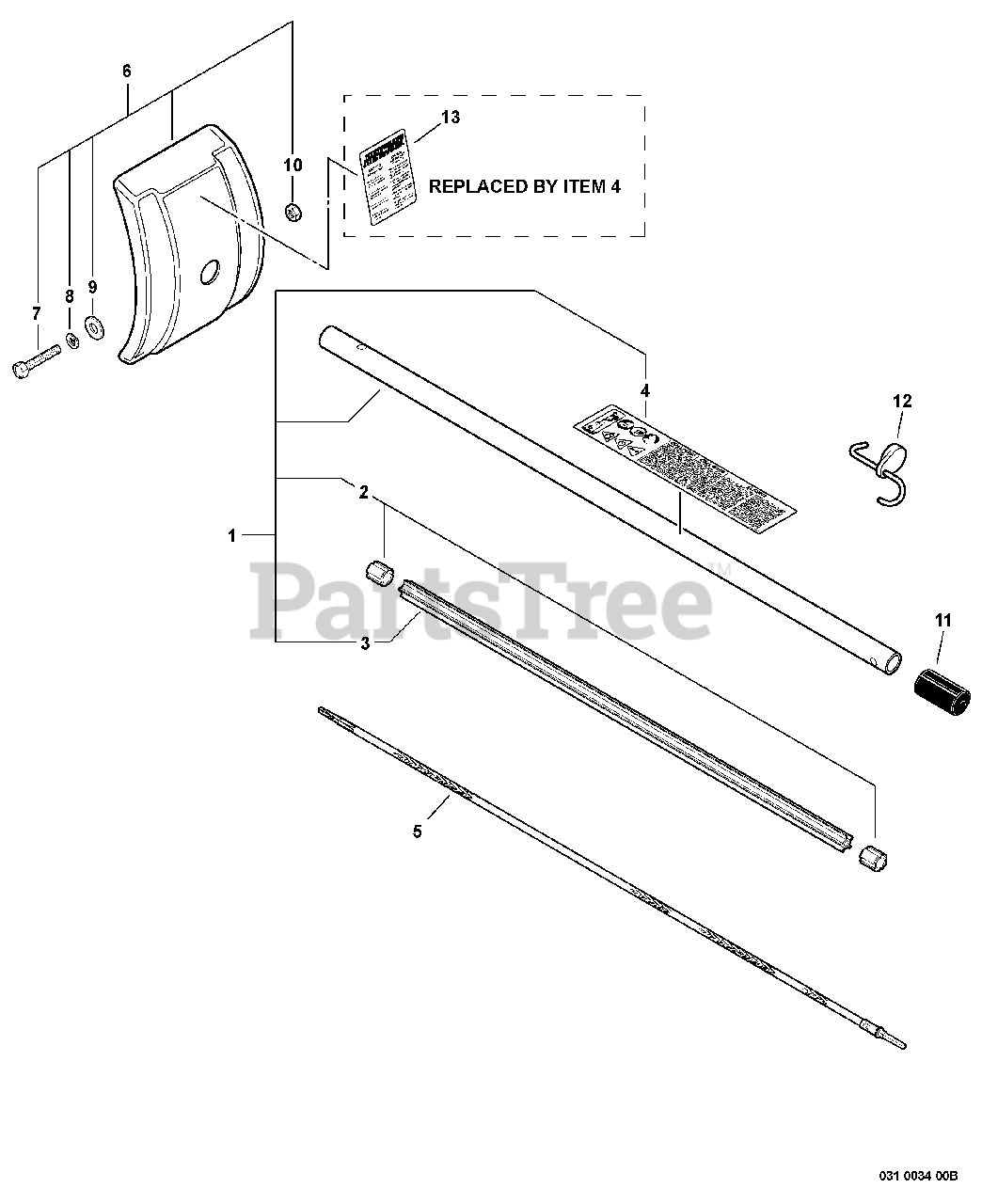

99944200510 - Echo Cultivator Attachment Main Pipe Assembly, Shield Parts Diagram

Cultivator Attachment

Main Pipe Assembly, Shield Parts Diagram

  • Title
1

Echo C050000170

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2-3

$

$

Not available

2

$1.49

$

In Stock, Qty 20+

0

3

Echo C507000240

LINER - FLEXIBLE

$17.99

$

Usually ships in 2-4 days

0

4

Echo X505002540

LABEL - CAUTION

$7.99

$

In Stock, only 1 left!

0

5

Echo C506000002

DRIVESHAFT - FLEXIBLE
(Superseded to C506000480)

$14.99

$

In Stock, Qty 7

0

6

Echo 69400012050

DEBRIS SHIELD KIT

Note: INCLUDES ITEMS 7-10

$17.99

$

Usually ships in 2-4 days

0

7

Echo 90010006020

BOLT - 6X20

$0.99

$

Usually ships in 2-4 days

0

8

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

9

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

10

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

$0.99

$

Usually ships in 2-4 days

0

12

Echo 99944200631

PAS ATTACHMENT HANGER

$1.49

$

In Stock, only 3 left!

0

13

------------------

LABEL - CAUTION

$

$

Not available
