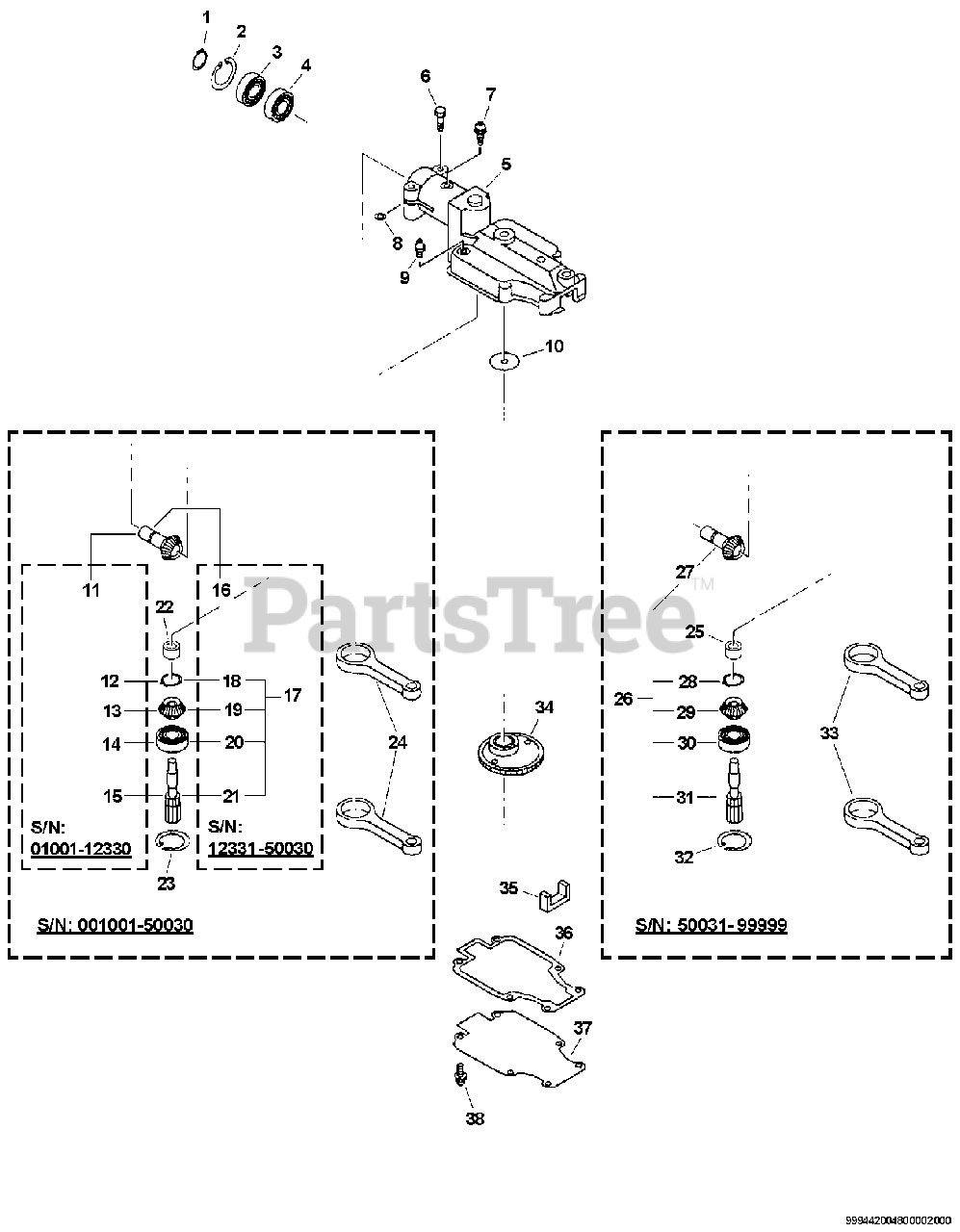

99944200480 - Echo Hedge Trimmer Attachment Gear Case Parts Diagram

Hedge Trimmer Attachment

Gear Case Parts Diagram

  • Title

1

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

0

2

Echo 61033521460

RING, RETAINING - 24

$1.49

$

In Stock, Qty 8

0

3

Echo 90085506901

BEARING, BALL - 6901

$15.99

$

In Stock, only 1 left!

0

4

Echo 90085806901

BEARING, BALL - 6901Z
(Superseded to 9405206901)

$15.99

$

In Stock, only 1 left!

0

5

Echo P021000110

CASE, GEAR
(Superseded to P021000111)

$

$

Not available

6

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

7

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

8

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 10

0

9

Echo 88011054230

FITTING, GREASE

$5.49

$

In Stock, only 3 left!

0

10

Echo 61035004560

WASHER

$1.49

$

In Stock, only 4 left!

0

11

Echo 61036121460

GEAR

$34.99

$

Usually ships in 2-4 days

0

12

Echo 61033521560

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

13

Echo 61036121560

GEAR - BEVEL -- DRIVEN
(Superseded to Discontinued)

$

$

Not available

14

Echo 90085506901

BEARING, BALL - 6901

$15.99

$

In Stock, only 1 left!

0

15

Echo 61031221460

GEAR - SHAFT

$30.99

$

Usually ships in 2-4 days

0

16

Echo V651000050

GEAR
(Superseded to P021009430)

$37.99

$

Usually ships in 2-4 days

0

17

Echo V060000000

SPUR GEAR ASSY
(Superseded to P021009440)

Note: INCLUDES ITEMS 18-21

$75.99

$

Usually ships in 2-4 days

0

18

Echo 61033521560

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

19

Echo V651000060

GEAR - BEVEL -- DRIVEN
(Superseded to P021009430)

$37.99

$

Usually ships in 2-4 days

0

20

Echo 90085506901

BEARING, BALL - 6901

$15.99

$

In Stock, only 1 left!

0

21

Echo 61031221460

GEAR - SHAFT

$30.99

$

Usually ships in 2-4 days

0

22

Echo 60422121460

BEARING, NEEDLE

$9.49

$

Usually ships in 2-4 days

0

23

Echo 61033521460

RING, RETAINING - 24

$1.49

$

In Stock, Qty 8

0

24

Echo 61033004561

ROD, CONNECTING
(Superseded to C532000120)

$23.99

$

In Stock, only 3 left!

0

25

Echo 60422121460

BEARING, NEEDLE

$9.49

$

Usually ships in 2-4 days

0

26

Echo P021009440

SPUR GEAR SET

Note: INCLUDES ITEMS 27-31

$75.99

$

Usually ships in 2-4 days

0

27

Echo V651000180

GEAR - BEVEL

$29.99

$

Usually ships in 2-4 days

0

28

Echo 61033521560

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

29

Echo V651000190

GEAR - BEVEL

$24.99

$

Usually ships in 2-4 days

0

30

Echo 90085506901

BEARING, BALL - 6901

$15.99

$

In Stock, only 1 left!

0

31

Echo 61031221460

GEAR - SHAFT

$30.99

$

Usually ships in 2-4 days

0

32

Echo 61033521460

RING, RETAINING - 24

$1.49

$

In Stock, Qty 8

0

33

Echo C532000120

ROD, CONNECTING
(Superseded to C532000121)

$23.99

$

In Stock, only 3 left!

0

34

Echo 61031204560

GEAR - DRIVE

$76.99

$

In Stock, only 3 left!

0

35

Echo 61042504560

SEAL, FELT

$1.49

$

In Stock, Qty 20+

0

36

Echo 61041421460

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 14

0

37

Echo 61041121460

LID, GEAR CASE

$6.99

$

Usually ships in 2-4 days

0

38

Echo 90016204012

SCREW - 4X12

$1.49

$

In Stock, Qty 7

0
