99944200460 - Echo Power Edger Attachment Gear Case Housing Asy, Drive Shaft Housing Asy Parts Diagram

Power Edger Attachment

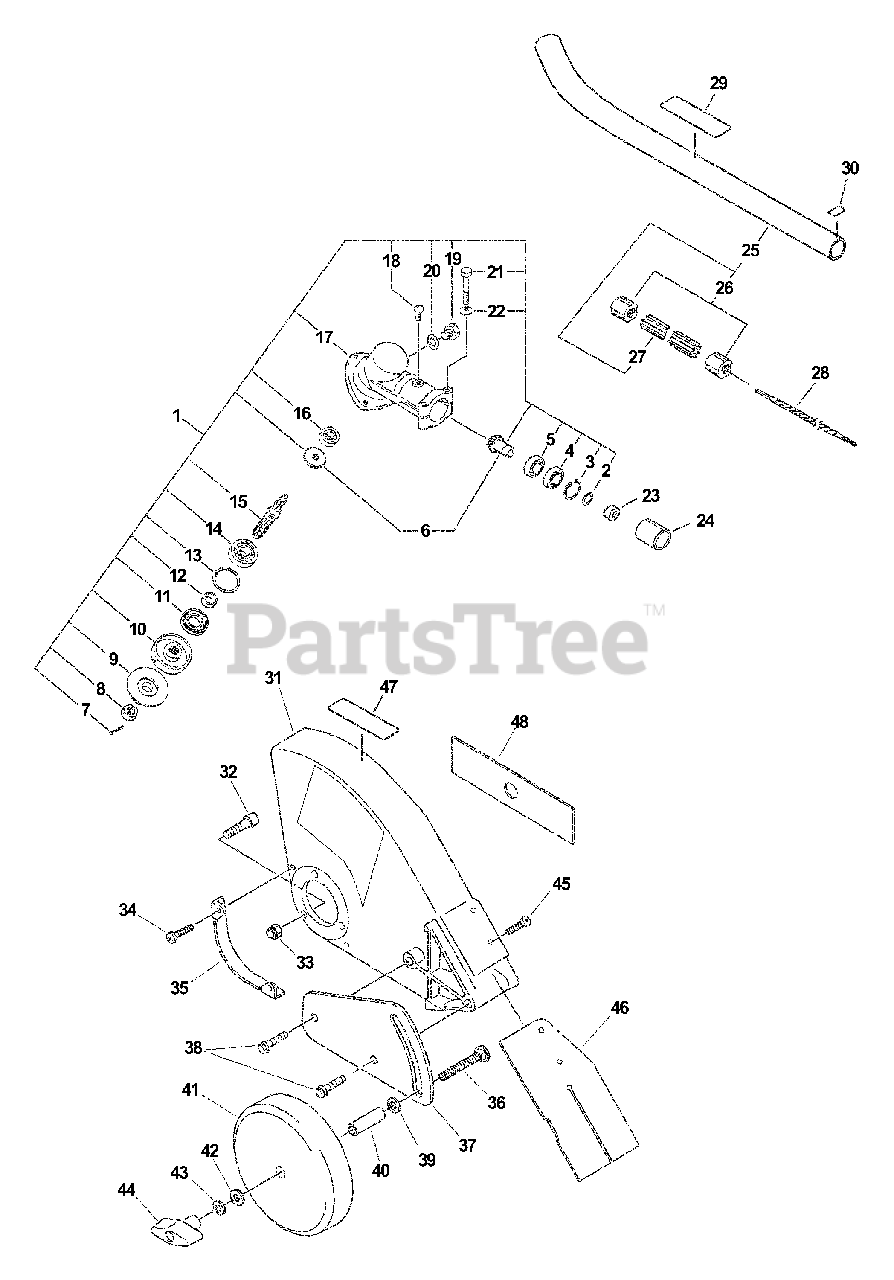

Gear Case Housing Asy, Drive Shaft Housing Asy Parts Diagram

  • Title

1

Echo 61040040730

GEAR CASE ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 2 - 22

$

$

Not available

2

Echo 61033555330

RING, RETAINING - 18
(Superseded to Discontinued)

$

$

Not available

3

Echo 10022955330

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

4

Echo 90080400609

BEARING, BALL - 609

$15.99

$

In Stock, Qty 5

0

5

Echo 90080000609

BEARING, BALL - 609

$9.99

$

In Stock, Qty 12

0

6

Echo 61030040730

GEAR SET
(Superseded to Discontinued)

$

$

Not available

7

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

8

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 18

0

9

Echo C535000150

ADAPTOR, BLADE - LOWER

$9.49

$

In Stock, only 1 left!

0

10

Echo 61031307130

ADAPTOR, BLADE - UPPER
(Superseded to 61031307132)

$17.99

$

In Stock, Qty 5

0

11

Echo 61041355330

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

12

Echo 61031555330

SPACER

$2.99

$

Usually ships in 2-4 days

0

13

Echo 10023855330

RING, RETAINING - 20

$0.99

$

Usually ships in 2-4 days

0

14

Echo 90081206201

BEARING, BALL - 6201

$12.99

$

In Stock, only 3 left!

0

15

Echo 61031055330

GEAR - SHAFT
(Superseded to 61040040730)

$

$

Not available

16

Echo 90081400629

BEARING, BALL - 629

$11.99

$

Usually ships in 2-4 days

0

17

Echo 61041055330

CASE, GEAR
(Superseded to 61040040730)

$

$

Not available

18

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

19

Echo 61051055330

FITTING, GREASE

$0.99

$

Usually ships in 2-4 days

0

20

Echo 61051155330

WASHER

$0.99

$

In Stock, only 1 left!

0

21

Echo 90010005030

BOLT - 5X30

$0.99

$

Usually ships in 2-4 days

0

22

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

23

Echo 10491056630

CUSHION
(Superseded to C506000000)

$14.99

$

In Stock, only 3 left!

0

24

Echo 61022555331

COLLAR

$6.99

$

In Stock, only 1 left!

0

25

Echo 61020649130

MAIN PIPE ASSY

Note: Includes ITEMS 25-26

$34.99

$

Usually ships in 2-4 days

0

26

Echo 61024655330

BUSHING

$4.49

$

In Stock, Qty 7

0

27

Echo 61021749130

LINER - FLEXIBLE

$13.99

$

Usually ships in 2-4 days

0

28

Echo 61001356730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000000)

$14.99

$

In Stock, only 3 left!

0

29

Echo 89016025560

LABEL - CAUTION

$7.99

$

In Stock, only 1 left!

0

30

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

31

Echo 69901052830

SHIELD, DEBRIS

$20.99

$

In Stock, only 1 left!

0

32

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

33

Echo 90056250005

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

34

Echo 90008000300

SCREW - 4X16

$0.99

$

In Stock, Qty 6

0

35

Echo 69902552630

GUARD

$3.49

$

In Stock, Qty 18

0

36

Echo 61025055330

BOLT - CARRIAGE

$1.99

$

In Stock, Qty 20+

0

37

Echo 30202955330

BRACKET, WHEEL
(Superseded to 30202955331)

$7.99

$

In Stock, Qty 9

0

38

Echo 90008000100

BOLT - 8

$1.49

$

Usually ships in 2-4 days

0

39

Echo 90060200010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

40

Echo 30242452630

COLLAR - 12

$3.49

$

In Stock, Qty 20+

0

41

Echo C730000030

WHEEL - 6X1.5
(Superseded to C730000120)

$10.99

$

In Stock, Qty 10

0

42

Echo 90060200008

WASHER - 8

$0.99

$

In Stock, Qty 20+

0

43

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

44

Echo 17811355330

WINGNUT - 5/16-18
(Superseded to V299000670)

$3.49

$

In Stock, Qty 20+

0

45

Echo 90008000200

SCREW - 3

$0.99

$

Usually ships in 2-4 days

0

46

Echo 69901755330

FLAP, DEBRIS

$12.99

$

In Stock, Qty 6

0

47

Echo 89016052631

LABEL - CAUTION -- SPANISH

$6.49

$

Usually ships in 2-4 days

0

48

Echo 69601552632

BLADE, EDGER

$9.49

$

In Stock, Qty 20+

0
