998306 - Ariens Arrow E 60" Stand-On Mower, Electric, Rear-Discharge (SN: 000101 - 000499) Anti- Scalp Wheels and Baffles - 60" - RD Parts Diagram

Arrow E 60" Stand-On Mower, Electric, Rear-Discharge

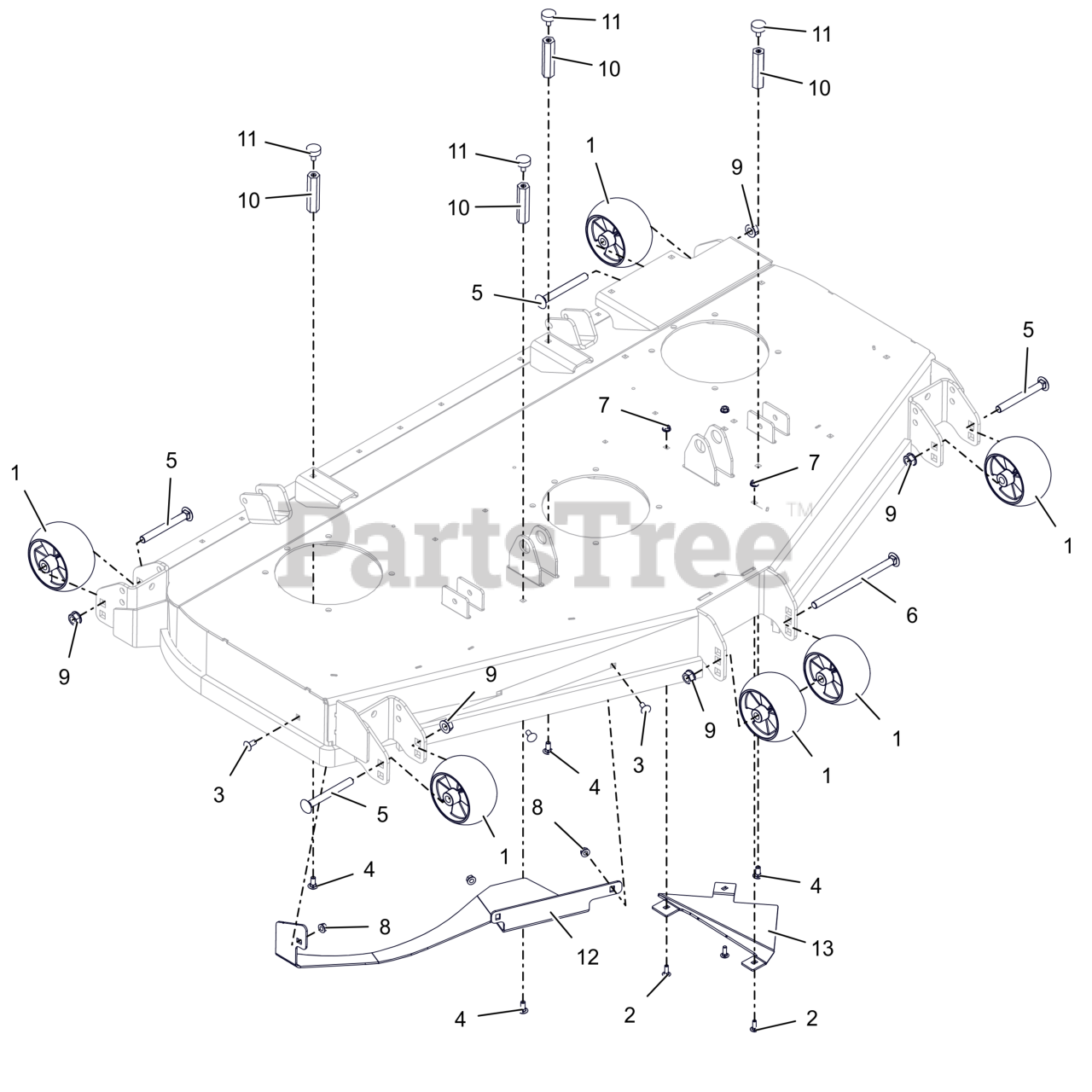

Anti- Scalp Wheels and Baffles - 60" - RD Parts Diagram

  • Title

1

Ariens 05268800

WHEEL, ANTI SCALP - 5X3 CTR W/RIBS

$11.99

$

In Stock, Qty 20+

0

2

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 6

0

3

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

4

Ariens 06200425

BLT, RHSN .31-18X.75 G5 ZCC LT

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 06200505

BLT-RHNS .50-13X4.50 G5 ZCC NS

$

$

Not available

6

Ariens 06200506

BLT-RHSN .50-13X8.00 G5 ZCC NS

$

$

Not available

7

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 12

0

8

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 07000027

NUT, COUPLING .31-18 X 3.00

$28.99

$

In Stock, only 3 left!

0

11

Ariens 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 2 left!

0

12

Ariens 09387259

DEFLECTOR, BAFFLE BOLT-IN (ORANGE)

$50.99

$

Usually ships in 4-12 days

0

13

Ariens 30112159

BAFFLE, INSERT TRIANGLULAR (ORANGE)

$

$

Currently unavailable
