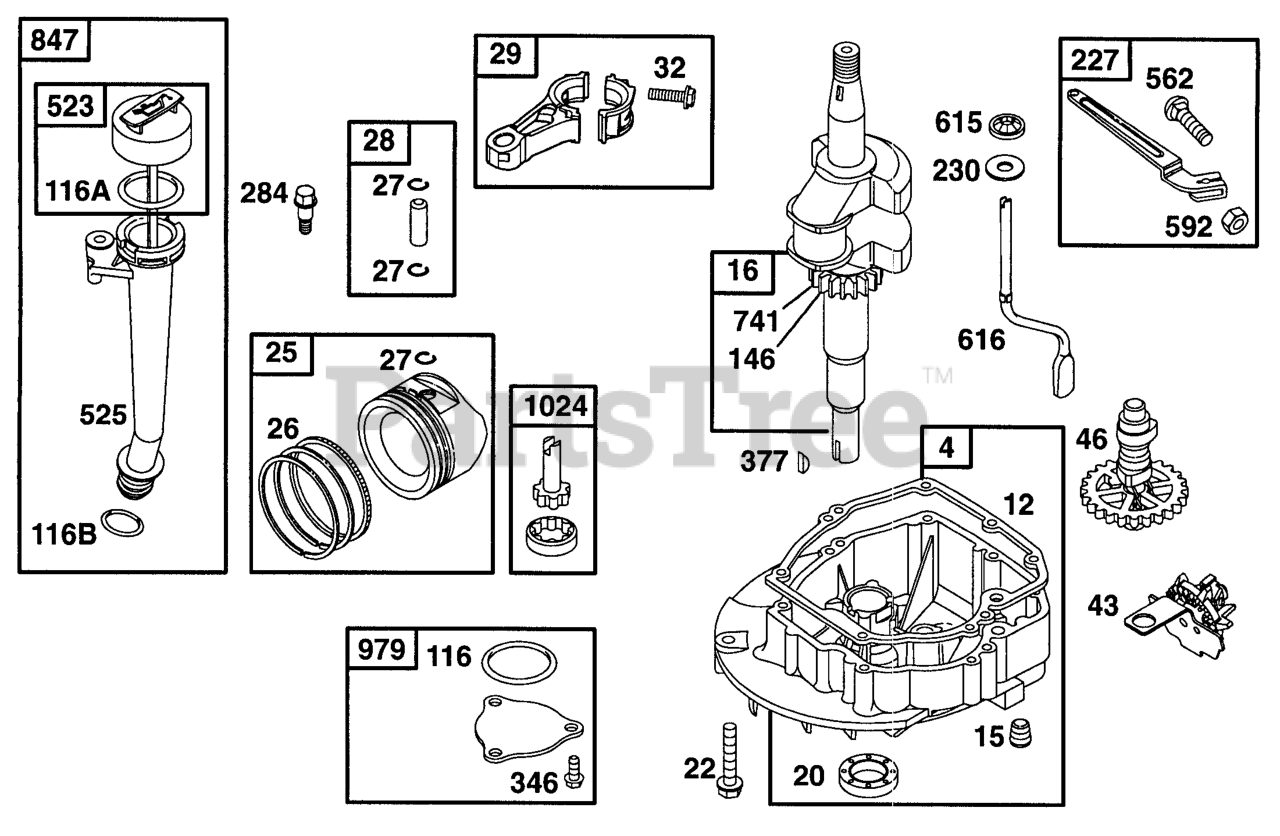

99772-0626-01 - Briggs & Stratton Vertical Engine Sump Base, Piston Grp, Gears Parts Diagram

Vertical Engine

Sump Base, Piston Grp, Gears Parts Diagram

  • Title

4

Briggs & Stratton 493901

Sump-Engine

$72.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 272324

Gasket-Crankcase

Note: Included in Gasket Set-See Ref. No. 358

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 94720

Plug, Pipe (Flush)
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 495795

Crankshaft

$142.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Gasket Set-See Ref. No. 358

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94220

Screw, Sem Hex Wash
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 94612

Screw-Hex (One Used In Hole Nearest Breather)
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 493781

Piston Assembly (Standard)

$73.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 495267

Piston Assy-010

$78.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 495269

Piston Assy-020
(Superseded to 495271)

$95.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 495271

Piston Assy-030

$95.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 493782

Ring Set (Standard)

$37.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 495268

Ring Set-010

$24.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 495270

Ring Set-020

$38.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 495272

Ring Set-030

$37.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 262514

Lock-Piston Pin

$3.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 492765

Pin-Piston Std

$7.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 493049

Rod-Connecting (Standard)

$29.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 493689

Rod-Conn. (.020" Undersize)

$52.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94699

Screw, Hex Flange H
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

43

Briggs & Stratton 493719

Governor/Oil Slinger

$14.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 493310

Gear-Cam

$69.99

$

Usually ships in 2-12 days

0

116B

Briggs & Stratton 280966

Seal-O
(Superseded to 692296)

Note: Included in Gasket Set-See Ref. No. 358

$4.99

$

In Stock, only 2 left!

0

116A

Briggs & Stratton 280393

Seal, O-Ring (Oil Fill)
(Superseded to 691031)

Note: Included in Gasket Set-See Ref. No. 358

$5.49

$

In Stock, Qty 20+

0

116

Briggs & Stratton 280891

Seal-O (Oil Pump Cover)

Note: Included in Gasket Set-See Ref. No. 358

$9.49

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 94388

Timing Key
(Superseded to 690979)

$3.49

$

In Stock, Qty 8

0

227

Briggs & Stratton 492349

Lever-Governor
(Superseded to 690783)

$15.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 67072

Washer, Steel (Stop Switch Bracket)
(Superseded to 690272)

$3.99

$

In Stock, only 2 left!

0

284

Briggs & Stratton 94511

Screw, Machine Hex
(Superseded to 690940)

$3.99

$

In Stock, Qty 5

0

346

Briggs & Stratton 94513

Screw, Machine Hex
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

377

Briggs & Stratton 93065

Key, Woodruff (No. 6)
(Superseded to 692193)

$3.99

$

In Stock, only 1 left!

0

523

Briggs & Stratton 495264

Dipstick
(Superseded to 499621)

$17.99

$

In Stock, only 4 left!

0

525

Briggs & Stratton 495265

Tube-Oil Filler

$

$

Not available

562

Briggs & Stratton 92613

Bolt-Gov Lever

$

$

Not available

592

Briggs & Stratton 231082

Nut (10-24)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

615

Briggs & Stratton 94474

Pushnut
(Superseded to 690340)

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 262578

Crank-Governor
(Superseded to 698801)

Note: Used Before Code Date 96090200

$10.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 263175

Crank-Governor
(Superseded to 698801)

Note: Used After Code Date 96090100

$10.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262598

Gear-Timing
(Superseded to 691830)

$17.99

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 495263

Tube-Oil Fill
(Superseded to 692047)

$

$

Not available

979

Briggs & Stratton 492756

Cover-Pump

$7.49

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 493884

Pump-Oil

$27.99

$

Usually ships in 2-12 days

0
