997308 - Ariens Zenith E 60" Zero-Turn Mower, Electric, Rear-Discharge (SN: 000101 - 000999) Anti-Scalp Wheels and Baffles - 60" - RD Parts Diagram

Zenith E 60" Zero-Turn Mower, Electric, Rear-Discharge

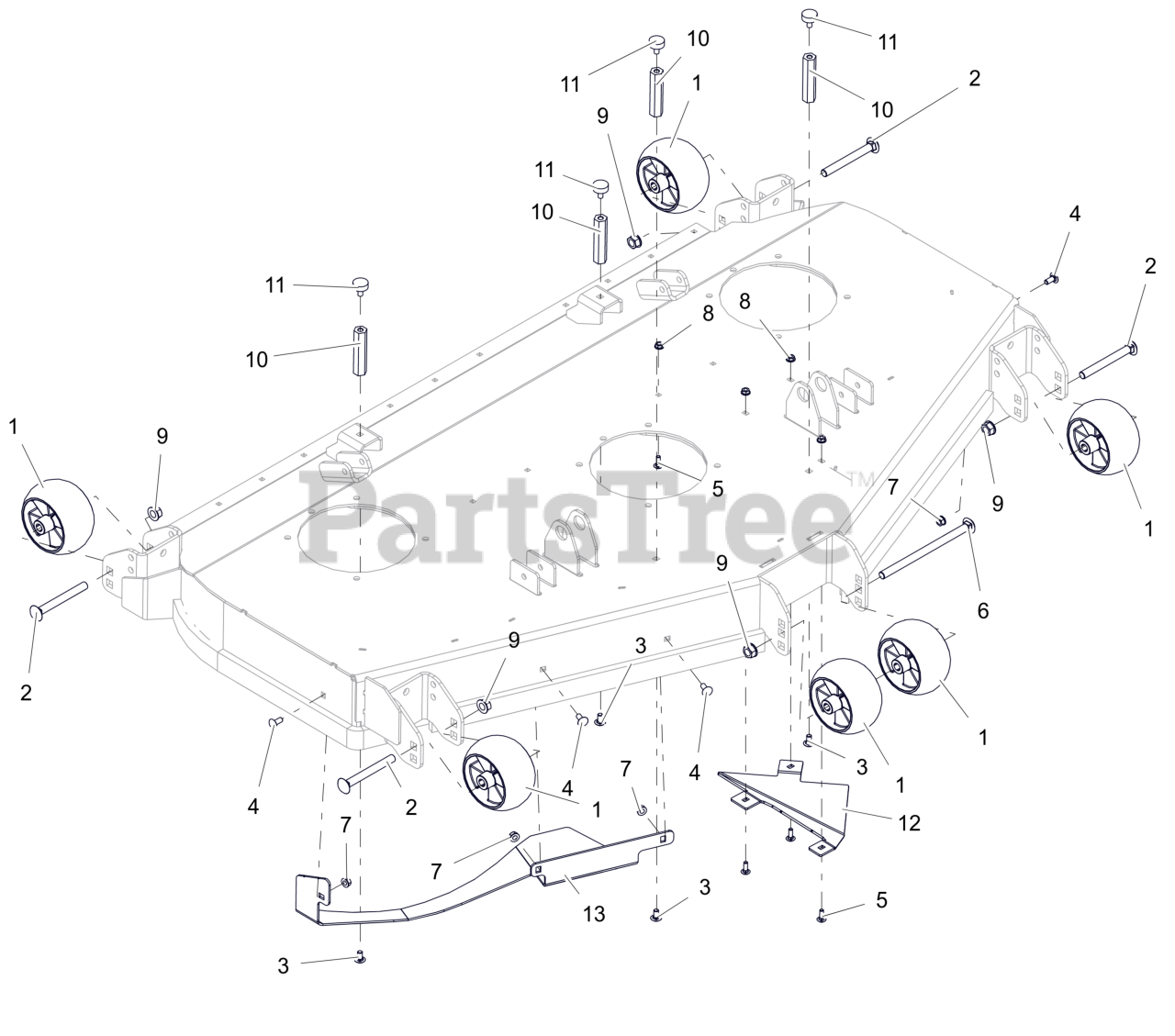

Anti-Scalp Wheels and Baffles - 60" - RD Parts Diagram

  • Title

1

Ariens 05268800

WHEEL, ANTI SCALP - 5X3 CTR W/RIBS

$11.99

$

In Stock, Qty 20+

0

2

Ariens 06200240

BLT,RHSN .50-13X4.50 G5 ZCC
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

3

Ariens 06200304

BLT,RHSSN.31-18X.625 G5 ZCCP30

$2.99

$

Usually ships in 4-12 days

0

4

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

5

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06200430

BTL,RHSN .500-13 X 8 G5 ZCC
(Superseded to 06200506)

$6.99

$

Usually ships in 4-12 days

0

7

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 07002020

NUT, COUPLING .312-18 X 3.375

$

$

Currently unavailable

11

Ariens 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

12

Ariens 09377259

BAFFLE, INSERT TRIANGLULAR (ORANGE)

$

$

Currently unavailable

13

Ariens 09387259

DEFLECTOR, BAFFLE BOLT-IN (ORANGE)

$50.99

$

Usually ships in 4-12 days

0
