997305 - Ariens Zenith E 60" Zero-Turn Mower, Electric, Side-Discharge (SN: 000101 - 000999) Frame - 60" - SD Parts Diagram

Zenith E 60" Zero-Turn Mower, Electric, Side-Discharge

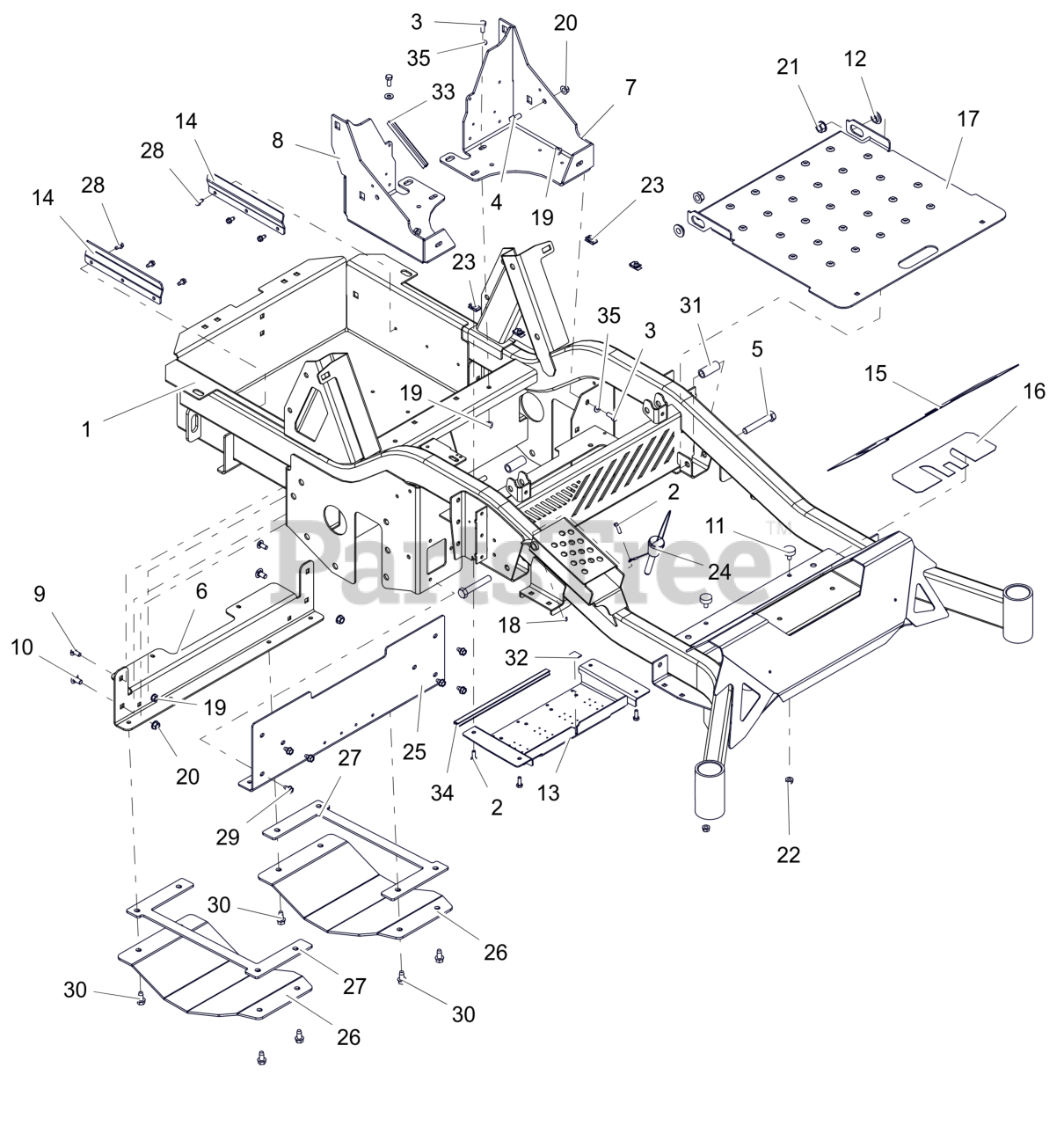

Frame - 60" - SD Parts Diagram

  • Title

1

Ariens 59701500

KIT,EV FRAME(LG)W/DECALS-A

$

$

Currently unavailable

2

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

3

Ariens 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

4

Ariens 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05901737

BLT, HEX .50-13X3.00 G5 ZCC

$4.99

$

In Stock, only 1 left!

0

6

Ariens 09192659

BRKT, SKID PLATE MTG. (ORANGE)

$

$

Currently unavailable

7

Ariens 09179159

BRKT, SUPPORT ROPS -LH (ORANGE)

$

$

Currently unavailable

8

Ariens 09179059

BRKT, SUPPORT ROPS-RH (ORANGE)

$

$

Currently unavailable

9

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

10

Ariens 06200336

BLT, RHSSN .38-16X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

11

Ariens 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

12

Ariens 03989100

BSHG-FLG .515X.750X.395X1.120

$3.49

$

In Stock, Qty 20+

0

13

Ariens 09192559

COVER, BOTTOM ACCESS -OPEN (ORANGE)

$

$

Currently unavailable

14

Ariens 09439659

DEFLECTOR, BATTERY -EV (ORANGE)

$

$

Currently unavailable

15

Ariens 05104800

GRIP, FRONT

$18.99

$

Usually ships in 4-12 days

0

16

Ariens 07801139

GRIP, TAPE FRONT

$

$

Currently unavailable

17

Ariens 59113600

PANEL, ACCESS

$135.99

$

Usually ships in 4-12 days

0

18

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

23

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06800203

PIN, MAGNETIC .50X2.50
(Superseded to 06800218)

$22.99

$

Usually ships in 4-12 days

0

25

Ariens 09192459

PLATE, FRONT FRAME (ORANGE)

$

$

Currently unavailable

26

Ariens 09180051

PLATE, SKID (BLACK)

$

$

Currently unavailable

27

Ariens 09180151

PLATE, SKID TENSION (BLACK)

$

$

Currently unavailable

28

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

29

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

30

Ariens 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

31

Ariens 05501319

SPACER, .515X.75X1.83

$4.99

$

Usually ships in 4-12 days

0

32

Ariens 07525100

STOP

$2.49

$

Usually ships in 4-12 days

0

33

Ariens 00918200

STRIP, COWL

$5.99

$

Usually ships in 4-12 days

0

34

Ariens 00918200

STRIP, COWL

$5.99

$

Usually ships in 4-12 days

0

35

Ariens 06401124

WSHR, FLT .312X.734X.065 ZCC

$0.99

$

In Stock, Qty 20+

0
