997304 - Ariens Zenith E 52" Zero-Turn Mower, Electric, Side-Discharge (SN: 000101 - 000999) Deck, Blades and Spindle Motors - 52" - SD Parts Diagram

Zenith E 52" Zero-Turn Mower, Electric, Side-Discharge

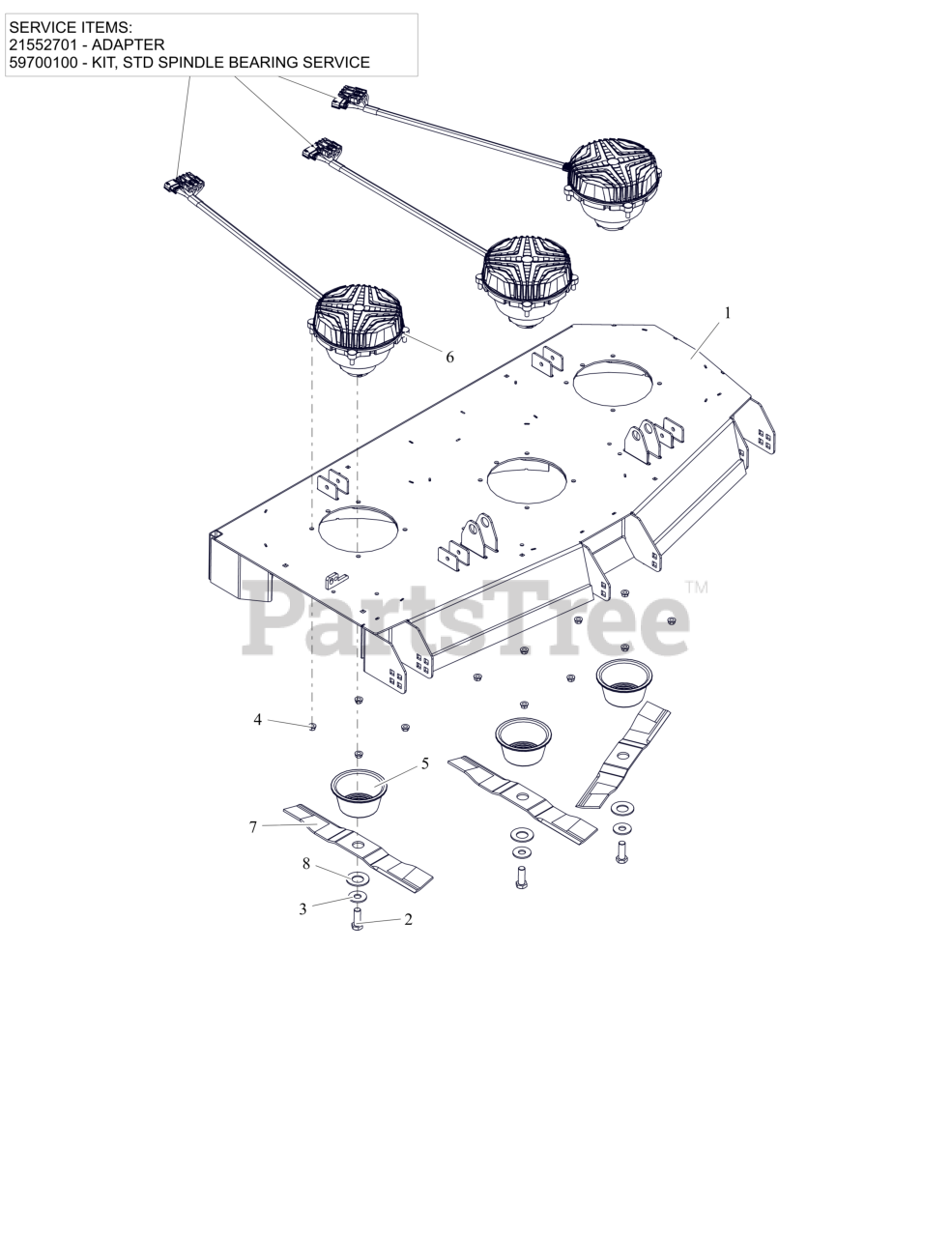

Deck, Blades and Spindle Motors - 52" - SD Parts Diagram

  • Title
1

Ariens 59701900

KIT,DECK 52 SD W/DECALS-G

$

$

Currently unavailable

2

Ariens 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0

3

Ariens 06401218

WSHR, HRDN 0.687X1.75X0.134 HRD

$

$

Currently unavailable

4

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

5

Ariens 09163400

GUARD, SPINDLE LOWER

$

$

Currently unavailable

6

Ariens 09475800

MOTOR, DECK - 48"/52" CW

$

$

Currently unavailable

6

Ariens 21552701

ADAPTER

Note: Component Service Part

$

$

Currently unavailable

6

Ariens 59700100

KIT,STD SPINDLE BEARING SERVICE

Note: Component Service Kit

$

$

Currently unavailable

7

Ariens 09439700

BLADE- MOWER-18.00" LOW

$

$

Not available

8

Ariens 06401217

WSHR, BLVL - .56X28.5X3 PHOS.COAT

$

$

Currently unavailable
