997303 - Ariens Zenith E 48" Zero-Turn Mower, Electric, Side-Discharge (SN: 000101 - 000999) Battery Hold Down and Latch Assembly Parts Diagram

Zenith E 48" Zero-Turn Mower, Electric, Side-Discharge

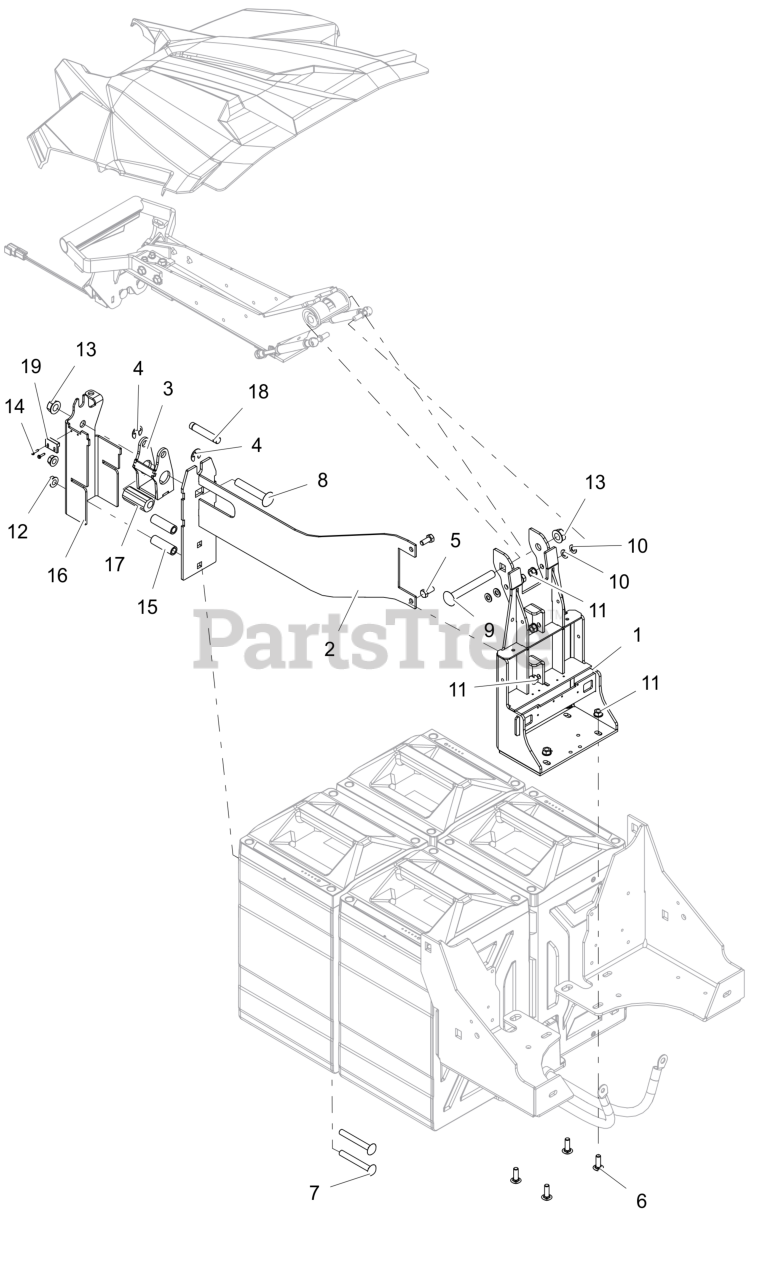

Battery Hold Down and Latch Assembly Parts Diagram

  • Title

1

Ariens 09187959

WLDMT, BATTERY HOLDDOWN PIVOT (ORANGE)

$150.99

$

Usually ships in 4-12 days

0

2

Ariens 09188059

WLDMT, ECCENTRIC MTG (ORANGE)

$45.99

$

Usually ships in 4-12 days

0

3

Ariens 09192100

WLDMT, ECCENTRIC

$25.99

$

Usually ships in 4-12 days

0

4

Ariens 05705900

RG-RTNG-EXT .438X.035

$0.99

$

In Stock, Qty 13

0

5

Ariens 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06200237

BLT,RHSSN .31-18X1.00 G5 ZCC

$2.49

$

In Stock, only 3 left!

0

7

Ariens 06200434

BTL,RHSSN .375-16 X 3 G5 ZCC

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 06200435

BTL,RHSSN .500-13 X 3 G5 ZCC

$

$

Currently unavailable

9

Ariens 06200437

BTL,RHSSN .500-13 X 4.25 G5 ZCC

$

$

Currently unavailable

10

Ariens 06401002

WSHR,FLT .323X.625X.062 ZCC

$1.49

$

Usually ships in 4-12 days

0

11

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

14

Ariens 07400205

SCR-TAP #4-40x.50 HWH ZCC

$3.49

$

Usually ships in 4-12 days

0

15

Ariens 09194651

SPCR, LATCH BRKT (BLACK)

$

$

Currently unavailable

16

Ariens 09194759

BRKT, ECCENTRIC MTG (ORANGE)

$25.99

$

Usually ships in 4-12 days

0

17

Ariens 09194800

ECCENTRIC, HOOD LATCH

$

$

Currently unavailable

18

Ariens 09195100

ROD, LATCHING

$

$

Currently unavailable

19

Ariens 09196000

SWITCH, MAGNET (NO WIRE)

$

$

Currently unavailable
