997301 - Ariens Zenith E 60" Zero-Turn Mower, Electric, Side-Discharge (SN: 000101 - 000299) Control Panels Parts Diagram

Zenith E 60" Zero-Turn Mower, Electric, Side-Discharge

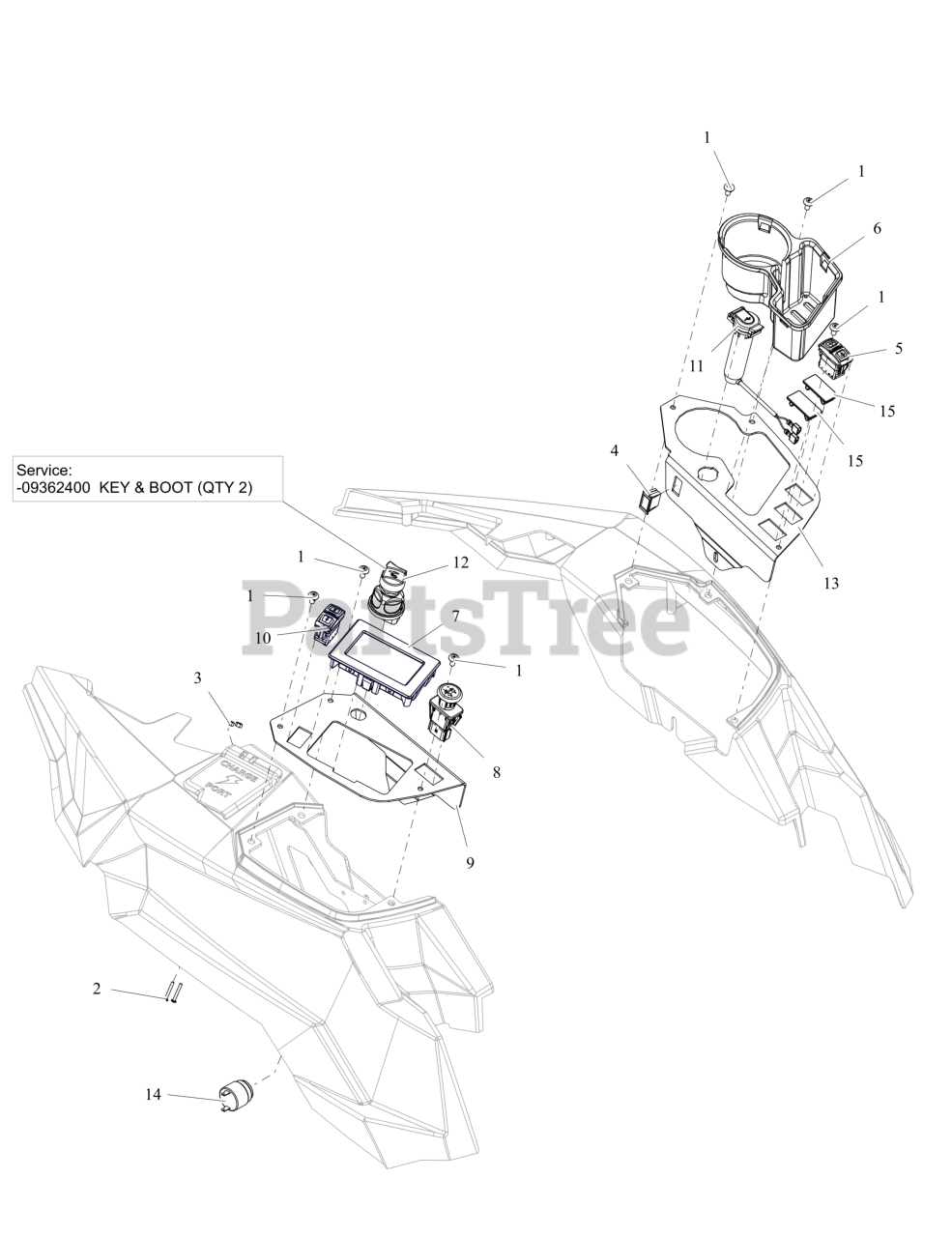

Control Panels Parts Diagram

  • Title

1

Ariens 06100304

SCR, MCH .25-20 X .500 TXTR ZB500

$

$

Currently unavailable

2

Ariens 06100305

SCR, PH PAN HD #6-32X1.000 ZCC

$

$

Currently unavailable

3

Ariens 06538900

@NUT-LK-NYL 6-32 W/INSRT YWZC

$

$

Not available

4

Ariens 09003300

SWITCH,BLANK

$4.99

$

Usually ships in 4-12 days

0

5

Ariens 09180300

SWITCH, TOGGLE - SPEED

$

$

Currently unavailable

6

Ariens 09190800

HOLDER, CUP

$11.99

$

In Stock, only 1 left!

0

7

Ariens 09366300

DISPLAY, ARIENS

$

$

Currently unavailable

8

Ariens 09196600

SWITCH, PTO (SEALED)

$

$

Currently unavailable

9

Ariens 09196759

PANEL, CONTROL -RH (ORANGE)

$

$

Currently unavailable

10

Ariens 09196900

SWITCH, ROCKER - DISPLAY

$

$

Currently unavailable

11

Ariens 09197100

PLUG, CHARGER USB

$

$

Currently unavailable

12

Ariens 09197700

SWITCH, KEY (SEALED)

$71.99

$

Usually ships in 4-12 days

0

12

Ariens 09362400

KEY & BOOT (Qty 2)

Note: Component Service Part

$

$

Not available

13

Ariens 09198859

PANEL, CONTROL -LH (ORANGE)

$

$

Currently unavailable

14

Ariens 09361800

ALARM, AUDIBLE

$

$

Currently unavailable

15

Ariens 09362800

PLUG, SWITCH

$

$

Currently unavailable
