997016 (Pro-Turn EV60 RD) - Gravely Pro-Turn 60" Zero-Turn Mower, Electric, Rear Discharge (SN: 000101 & Above) Anti-Scalp Wheels and Baffles - 60" - RD Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Electric, Rear Discharge

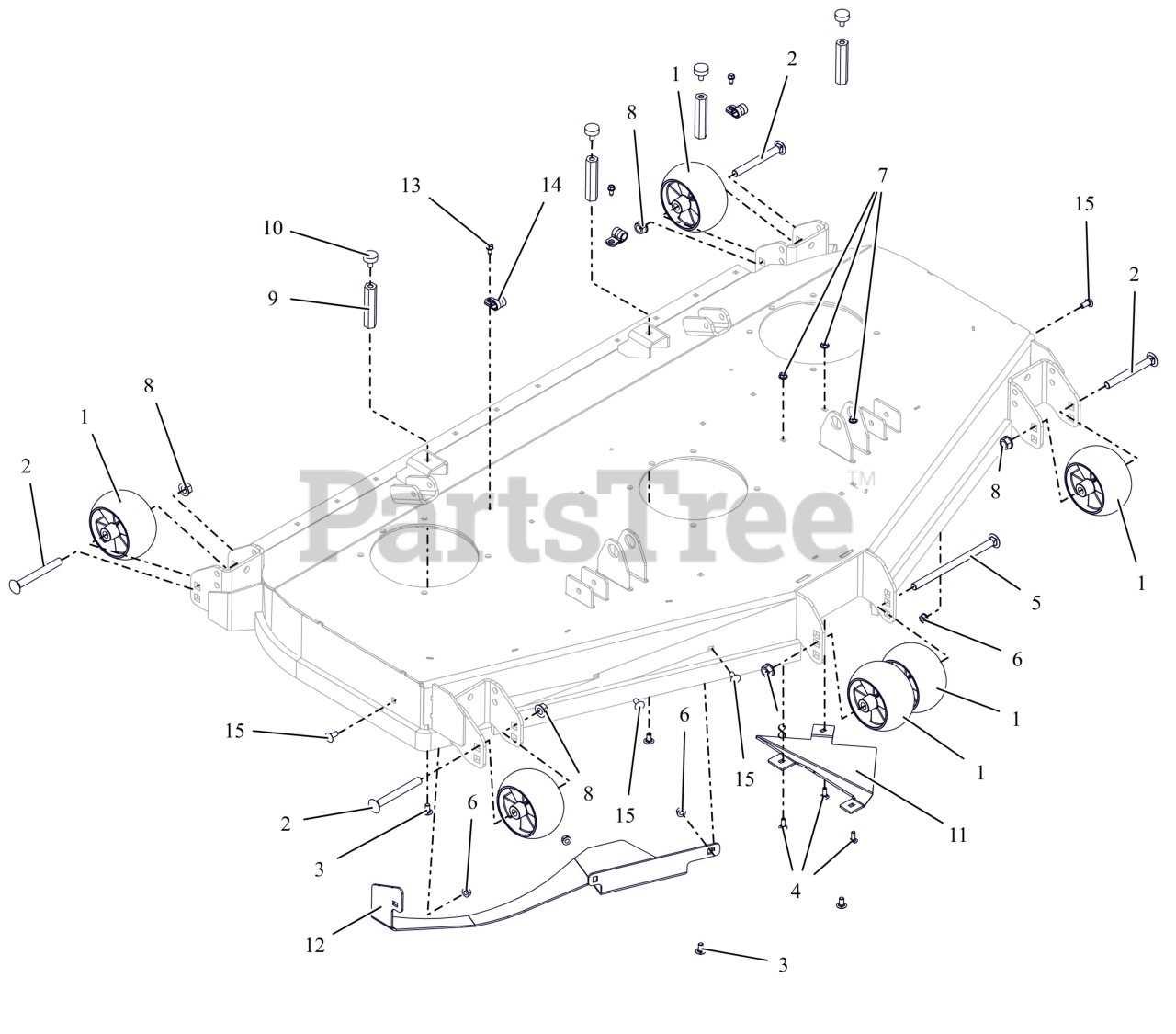

Anti-Scalp Wheels and Baffles - 60" - RD Parts Diagram

  • Title

1

Gravely 05268800

WHEEL, ANTI SCALP - 5X3 CTR W/RIBS

$11.99

$

Usually ships in 4-12 days

0

2

Gravely 06200505

BLT,RHNS .50-13X4.50 G5 ZCC NS

$5.99

$

In Stock, only 3 left!

0

3

Gravely 06200304

BTL,RHSSN .313-18 X 0.625 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06200506

BLT,RHSN .50-13X8.00 G5 ZCC NS

$6.99

$

Usually ships in 4-12 days

0

6

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 10

0

7

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 5

0

8

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 07002020

NUT, COUPLING .312-18 X 3.375

$

$

Currently unavailable

10

Gravely 07533600

BUMPER, RUBBER

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 09377253

BAFFLE, INSERT TRIANGLULAR (RED)

$

$

Currently unavailable

12

Gravely 09387253

DEFLECTOR, BAFFLE BOLT-IN (RED)

$

$

Currently unavailable

13

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06908200

CLAMP, CUSHIONED STEEL

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 7

0
