997012 (Pro-Turn EV52 SD) - Gravely Pro-Turn 52" Zero-Turn Mower, Electric, Side Discharge (SN: 000101 & Above) Deck, Blades and Spindle Motors - 52" - SD Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Electric, Side Discharge

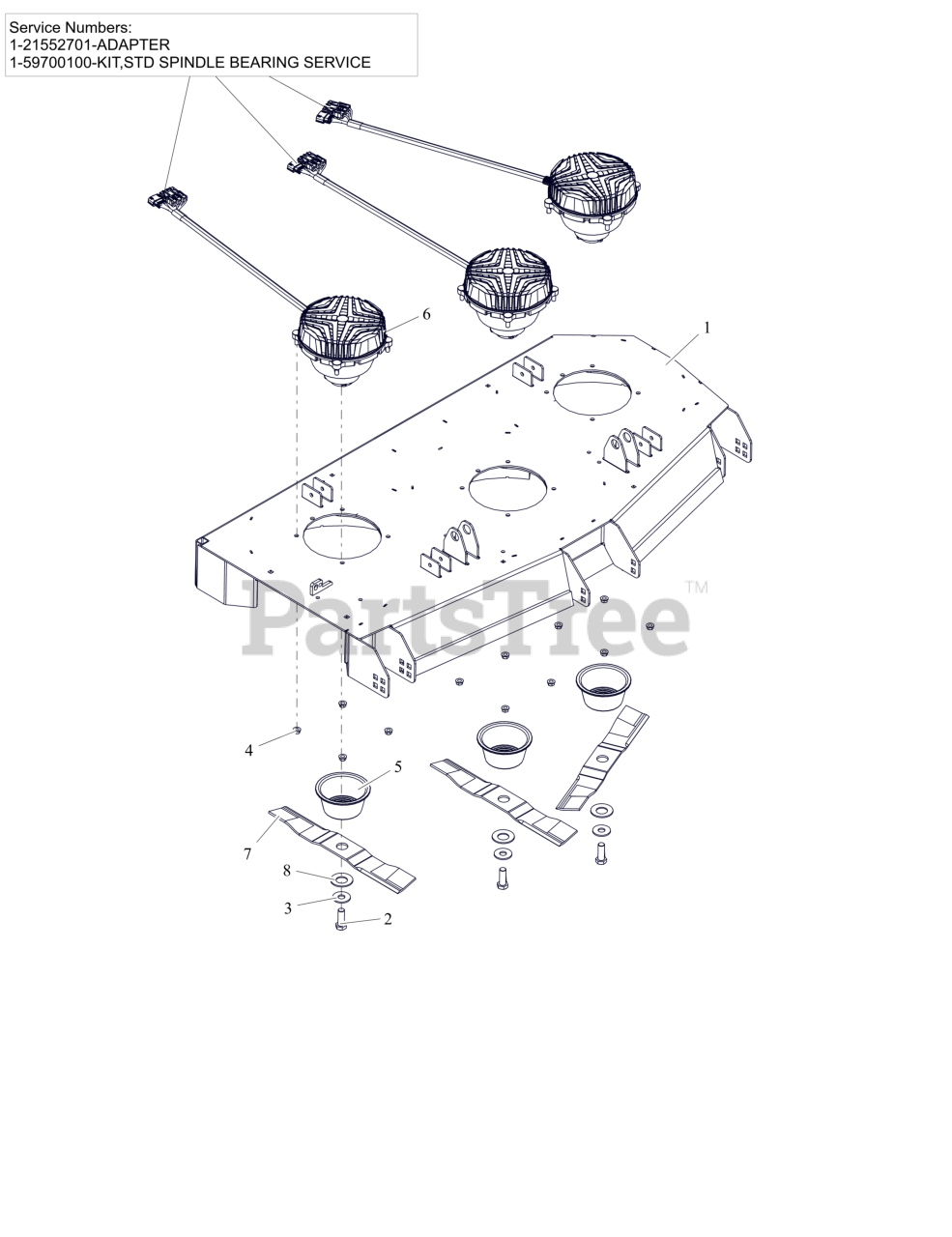

Deck, Blades and Spindle Motors - 52" - SD Parts Diagram

  • Title
1

Gravely 59701800

KIT,DECK 52 SD W/DECALS-G

$

$

Currently unavailable

2

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0

3

Gravely 06401218

WSHR, HRDN 0.687X1.75X0.134 HRD

$

$

Currently unavailable

4

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09163400

GUARD, SPINDLE LOWER

$

$

Currently unavailable

6

Gravely 09475800

MOTOR, DECK - 48"/52" CW

$

$

Currently unavailable

6

Gravely 21552701

ADAPTER

Note: Component Service Part

$

$

Currently unavailable

6

Gravely 59700100

KIT, STD SPINDLE BEARING SERVICE

Note: Component Service Part

$

$

Currently unavailable

7

Gravely 09439700

BLADE, MOWER - 18.00" EFF CW

$

$

Not available

8

Gravely 06401217

WSHR, BLVL - .56X28.5X3 PHOS.COAT

$

$

Currently unavailable
