997009 (Pro-Turn EV52 RD) - Gravely Pro-Turn 52" Zero-Turn Mower, Electric, Rear Discharge (SN: 001000 & Above) Hood and Batteries Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Electric, Rear Discharge

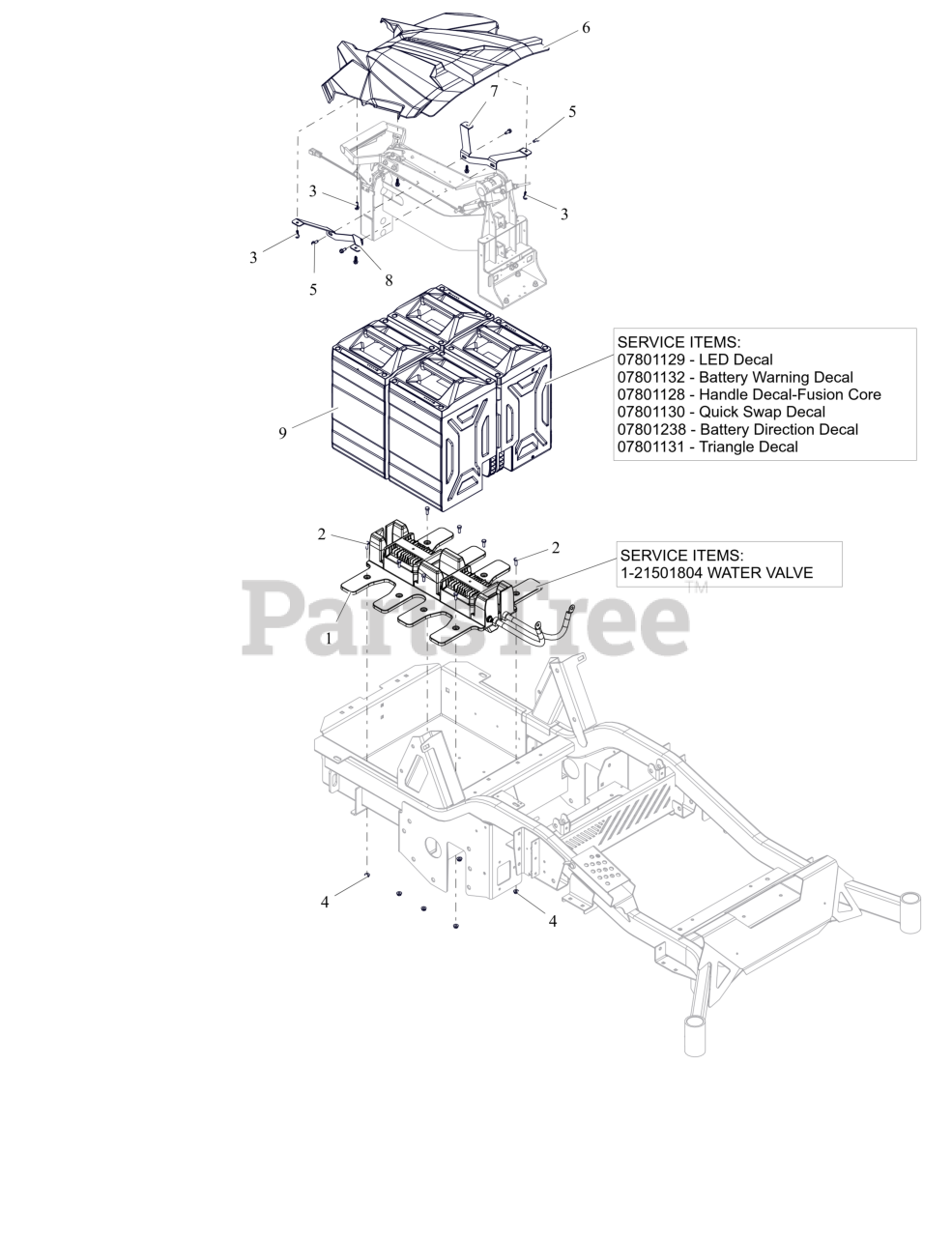

Hood and Batteries Parts Diagram

  • Title

1

Gravely 05287000

BASE, BATTERY BUSSBAR

$

$

Currently unavailable

1

Gravely 21501804

VALVE, WATER

Note: Component Service Part

$

$

Currently unavailable

2

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06100231

SCR, PLASTITE-HWH 0.25 X 0.75 ZC120

$1.49

$

In Stock, Qty 6

0

4

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

5

Gravely 07400135

SCR,TAP .25-20X.625 HWH ZCC

$2.49

$

In Stock, Qty 6

0

6

Gravely 09193800

HOOD, PRO - TURN EV

$

$

Currently unavailable

7

Gravely 09194151

SUPPORT, HOOD EVZT (BLACK)

$

$

Currently unavailable

8

Gravely 09196551

SUPPORT, HOOD EVZT (BLACK)

$

$

Currently unavailable

9

Gravely 89700100

KIT, EV BATTERY

$

$

Currently unavailable

9

Gravely 07801129

DECAL, BATTERY LED

Note: Component Service Part

$

$

Currently unavailable

9

Gravely 07801132

DECAL, BATTERY WARNING

Note: Component Service Part

$

$

Currently unavailable

9

Gravely 07801128

DECAL, BATTERY HANDLE

Note: Component Service Part

$

$

Currently unavailable

9

Gravely 07801130

DECAL, BATTERY QUICKSWAP

Note: Component Service Part

$

$

Currently unavailable

9

Gravely 07801238

DECAL, BATTERY INSTALL DIRECTION

Note: Component Service Part

$

$

Currently unavailable

9

Gravely 07801131

DECAL, BATTERY OBLIQUE

Note: Component Service Part

$

$

Currently unavailable
