997008 (Pro-Turn EV48 RD) - Gravely Pro-Turn 48" Zero-Turn Mower, Electric, Rear Discharge (SN: 000101 - 000999) Discharge Chute - 48" - RD Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Electric, Rear Discharge

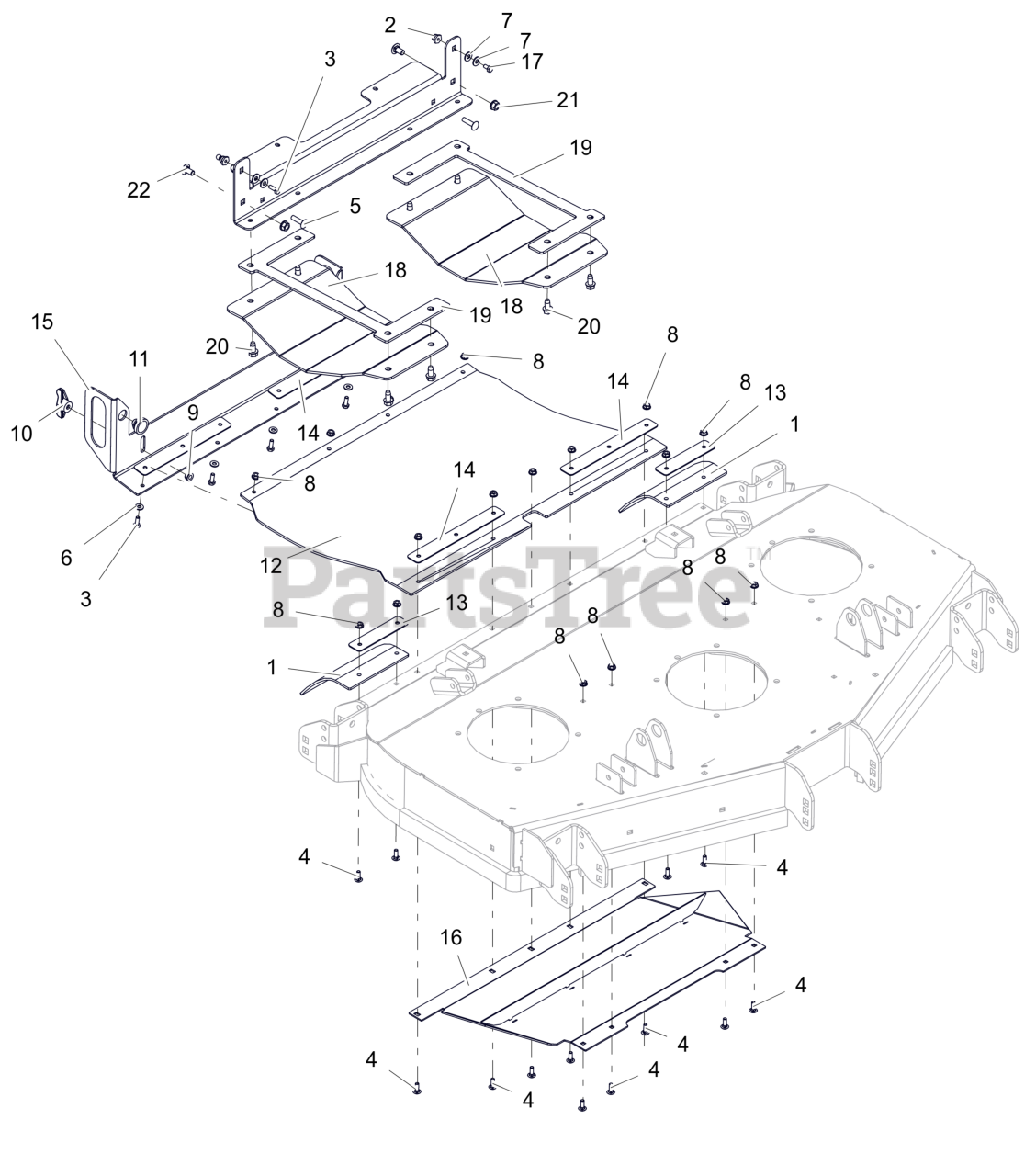

Discharge Chute - 48" - RD Parts Diagram

  • Title
1

Gravely 09453200

FLAP, REAR DISCHARGE 48" TIRE

$

$

Currently unavailable

2

Gravely 05275900

STUD, BALL FEMALE .250-20 THREAD

$9.49

$

Usually ships in 4-12 days

0

3

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06200310

BTL,RHSSN .313-18 X 1.25 G5 ZCC

$1.49

$

In Stock, Qty 5

0

6

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06401124

WSHR, FLT .312X.734X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 20+

0

11

Gravely 07500429

COUPLING, RUBBER PUSH-IN

$2.49

$

In Stock, Qty 20+

0

12

Gravely 09449000

CHUTE- 52" REAER DISCHARGE

$

$

Not available

13

Gravely 09447051

PLATE- 52" TIRE CHUTE MTG

$

$

Not available

14

Gravely 09377751

PLATE, CHUTE MTG (BLACK)

$

$

Currently unavailable

15

Gravely 09378653

HANDLE, CHUTE MOUNTING (RED)

$

$

Currently unavailable

16

Gravely 09438353

WLDMT, DEFLECTOR BAFFLE (RED)

$

$

Currently unavailable

17

Gravely 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

18

Gravely 09180051

PLATE, SKID (BLACK)

$

$

Currently unavailable

19

Gravely 09180151

PLATE, SKID TENSION (BLACK)

$

$

Currently unavailable

20

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06200336

BLT, RHSSN .38-16X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0
