997007 (Pro-Turn EV60 SD) - Gravely Pro-Turn 60" Zero-Turn Mower, Electric, Side Discharge (SN: 000101 - 000999) Electrical - 60" - SD Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Electric, Side Discharge

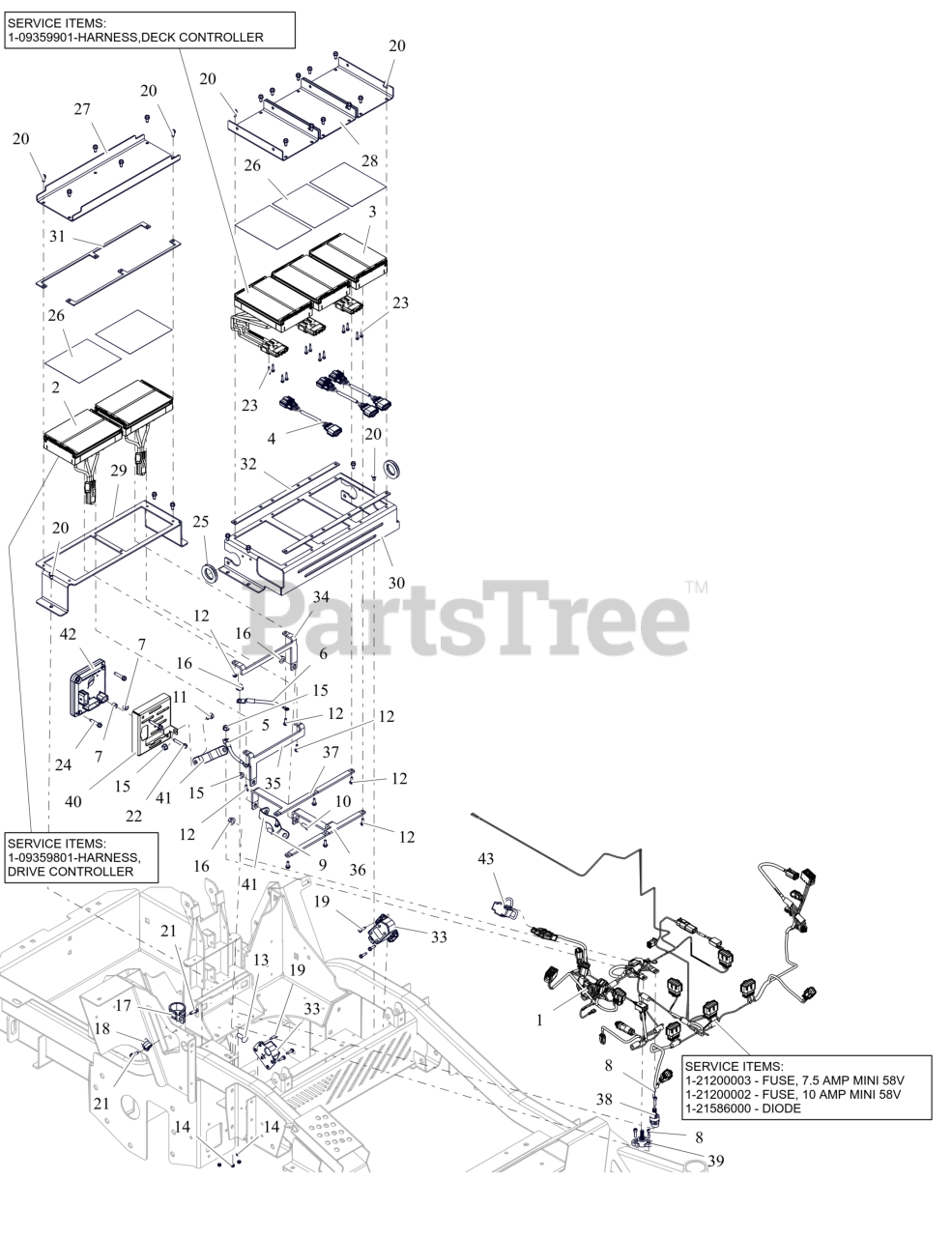

Electrical - 60" - SD Parts Diagram

  • Title

1

Gravely 05284000

HARNESS, ELECTRICAL - PT-EV

$

$

Currently unavailable

1

Gravely 21200003

FUSE, 7.5 AMP MINI 58V

Note: Component Service Part

$

$

Currently unavailable

1

Gravely 21200002

FUSE, 10 AMP MINI 58V

Note: Component Service Part

$

$

Currently unavailable

1

Gravely 21586000

DIODE, CHARGE

Note: Component Service Part

$

$

Currently unavailable

2

Gravely 09359800

ASM, DRIVE CONTROLLER W-HARNESS

$

$

Currently unavailable

2

Gravely 09359801

HARNESS, DRIVE CONTROLLER

Note: Component Service Part

$

$

Not available

3

Gravely 09359900

ASM, DECK CONTROLLER W-HARNESS

$

$

Currently unavailable

3

Gravely 09359901

HARNESS, DECK CONTROLLER

Note: Component Service Part

$

$

Not available

4

Gravely 09395200

HARNESS, DECK CNTRL JUMPER

$

$

Not available

5

Gravely 09425300

CABLE, GROUND

$

$

Currently unavailable

6

Gravely 09425400

CABLE, POSITIVE

$

$

Currently unavailable

7

Gravely 05501433

SPCR, .334X.500X.324

$

$

Currently unavailable

8

Gravely 05901624

SCR, SKH M5-.8X20 12.9ZC120

$1.99

$

Usually ships in 4-12 days

0

9

Gravely 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05901904

BLT, HEX .31-18X.50 GR5 ZCC

$1.49

$

In Stock, Qty 13

0

12

Gravely 05902103

BLT,HEX M5-.8X16 EP30 G8.8 ZCC

$

$

Currently unavailable

13

Gravely 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06500801

NUT,NYL M5-.8 G8.8 ZCC

$

$

Not available

15

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06900526

CLAMP, CUSHIONED STEEL 1.25

$17.99

$

Usually ships in 4-12 days

0

18

Gravely 06908200

CLAMP, CUSHIONED STEEL

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 07400118

SCR, TAP #10-24X.75 HWH ZCC

$3.99

$

In Stock, Qty 8

0

20

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

21

Gravely 07400131

SCR,TAP .25-20X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 6

0

22

Gravely 07400140

SCR-TAP .25-20X1.50 HWH ZCC

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 07400206

SCR-TAP #6-32X.75 HWH ZCC

$

$

Currently unavailable

24

Gravely 07400207

SCR-TAP .25-20X1.25 HWH ZCC

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 07536800

GROMMET 1.25ID X 1.5OD

$12.99

$

Usually ships in 4-12 days

0

26

Gravely 09182200

PAD, THERMAL

$

$

Not available

27

Gravely 09194300

PLATE, HEAT SINK-REAR

$

$

Currently unavailable

28

Gravely 09194400

PLATE, HEAT SINK-FRONT

$

$

Currently unavailable

29

Gravely 09194551

MOUNT, CNTRL -DRIVE (BLACK)

$

$

Currently unavailable

30

Gravely 09195551

MOUNT, CONTROLLER PLATE-FRONT (BLACK)

$

$

Currently unavailable

31

Gravely 09196151

SPCR, HEAT SINK (BLACK)

$

$

Currently unavailable

32

Gravely 09197251

SPCR, HEAT SINK - FRONT (BLACK)

$

$

Currently unavailable

33

Gravely 09197500

SENSOR, STEERING

$

$

Currently unavailable

34

Gravely 09368200

BAR, BUSS -POS. WHL

$

$

Currently unavailable

35

Gravely 09368300

BAR, BUSS-NEG. WHL

$

$

Currently unavailable

36

Gravely 09368400

BAR, BUSS-POS

$

$

Currently unavailable

37

Gravely 09368500

BAR, BUSS -NEG

$

$

Currently unavailable

38

Gravely 09379500

STUD, POSITIVE POWER

$

$

Not available

39

Gravely 09380200

STUD, NEGATIVE POWER

$

$

Not available

40

Gravely 09381100

COVER, VCMA ALUMINUM

$

$

Currently unavailable

41

Gravely 09381200

STRAP, GROUND

$

$

Currently unavailable

42

Gravely 09483300

MODULE, VEHICLE CONTROL-SD

$

$

Currently unavailable

43

Gravely 09663300

COVER, CONNECTOR DUST

$

$

Currently unavailable
