997005 (Pro-Turn EV48 SD) - Gravely Pro-Turn 48" Zero-Turn Mower, Electric, Side Discharge (SN: 001000 & Above) Wheels - 48" Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Electric, Side Discharge

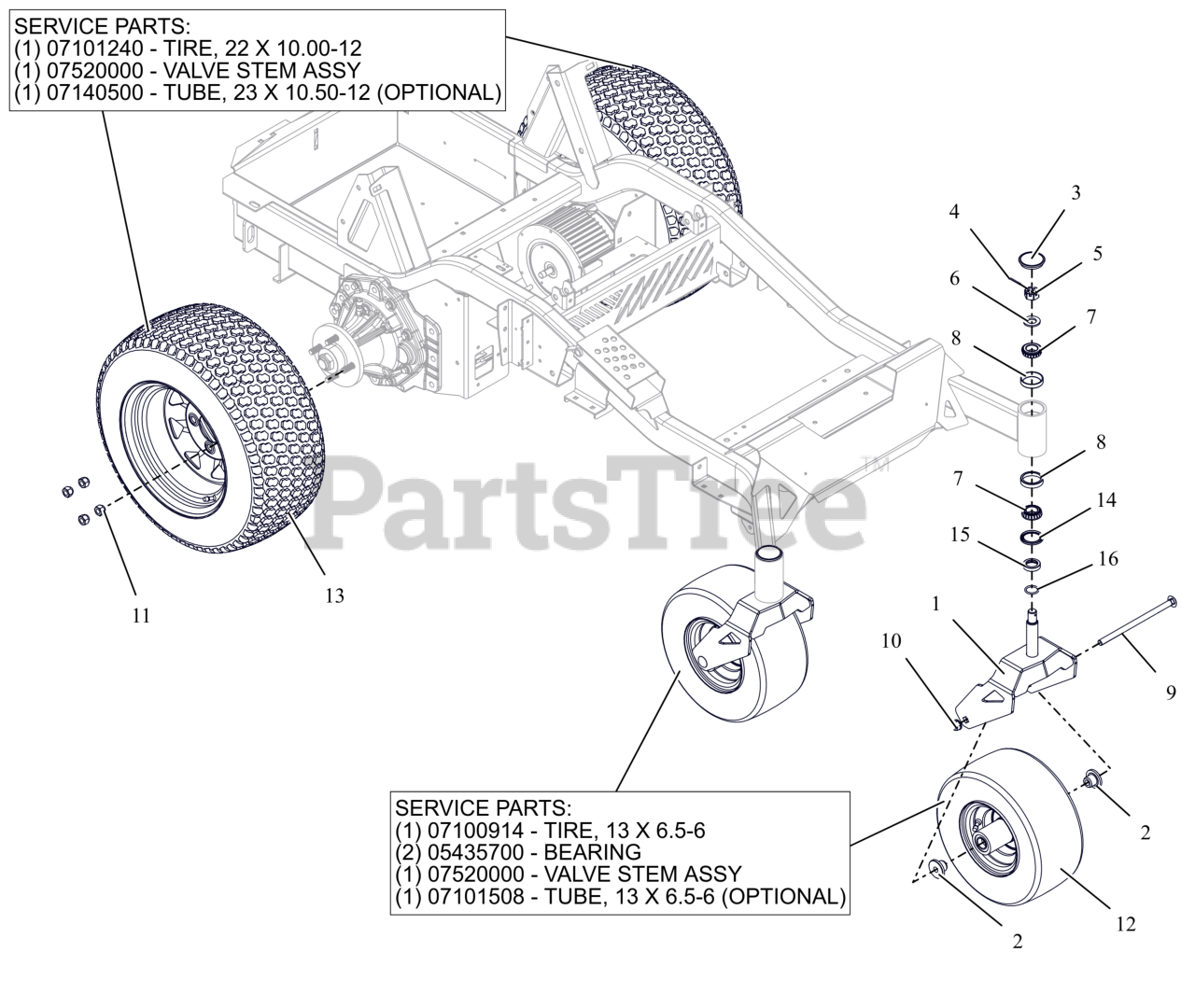

Wheels - 48" Parts Diagram

  • Title
1

Gravely 09476053

WLDMT- CASTER FORK

$

$

Not available

2

Gravely 00675300

SPACER, FRONT WHEEL

$7.99

$

In Stock, Qty 20+

0

3

Gravely 00456800

CAP, DUST

$18.99

$

In Stock, Qty 9

0

4

Gravely 06700212

PIN,CTR.12X1.25EXTPRSQCT ZC120

$0.99

$

In Stock, Qty 20+

0

5

Gravely 00595500

NUT, SLOTTED .75-16

$3.49

$

In Stock, only 3 left!

0

6

Gravely 06401140

WSHR-FL-STL 0.812X1.469X0.134 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05406900

BRG-CONE 1.0X.58

$18.99

$

In Stock, Qty 20+

0

8

Gravely 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 20+

0

9

Gravely 06200510

BLT-RHSN .50-13X9.00 G5 ZCC NS

$7.99

$

In Stock, only 2 left!

0

10

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07101515

ASM-TIRE/WHEEL 13X6.50-6

$108.99

$

Usually ships in 4-12 days

0

12

Gravely 07100914

TIRE, 13X6.50-6 SMOOTH

Note: Component Service Part

$85.99

$

Usually ships in 4-12 days

0

12

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

Note: Component Service Part

$22.99

$

In Stock, Qty 19

0

12

Gravely 07520000

VALVE STEM ASS'Y

Note: Component Service Part

$2.49

$

In Stock, Qty 5

0

12

Gravely 07101508

TIRE TUBE 13X6.5-6

Note: Optional Service Part Accessory

$

$

Not available

13

Gravely 07101521

ASM, WHL/TIRE 22X10-12 LG BLK

$250.99

$

Usually ships in 4-12 days

0

13

Gravely 07101240

TIRE, 22X10.00-12

Note: Component Service Part

$136.99

$

In Stock, only 1 left!

0

13

Gravely 07520000

VALVE STEM ASS'Y

Note: Component Service Part

$2.49

$

In Stock, Qty 5

0

13

Gravely 07140500

TUBE 22,23&24X8.50/9.50/10.00/10.50/12.00-12

Note: Optional Service Part Accessory

$45.99

$

Usually ships in 4-12 days

0

14

Gravely 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, only 4 left!

0

15

Gravely 04720200

SPCR, CASTER FORK (1.00)

$15.99

$

In Stock, only 1 left!

0

16

Gravely 05610000

O-RING 1.000X1.250X

$3.99

$

Usually ships in 4-12 days

0
