997005 (Pro-Turn EV48 SD) - Gravely Pro-Turn 48" Zero-Turn Mower, Electric, Side Discharge (SN: 000101 - 000999) Control Panels Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Electric, Side Discharge

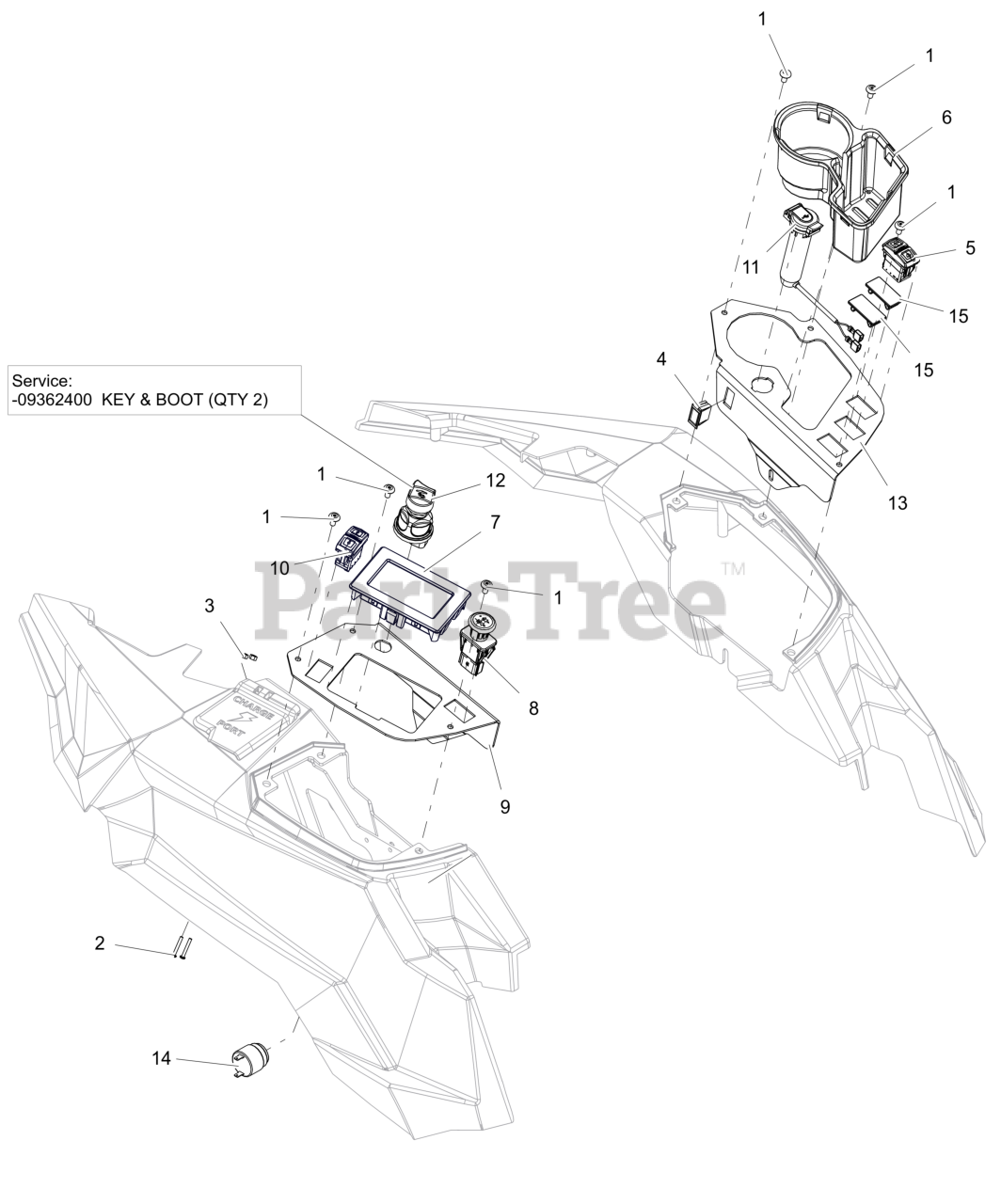

Control Panels Parts Diagram

  • Title

1

Gravely 06100304

SCR, MCH .25-20 X .500 TXTR ZB500

$

$

Currently unavailable

2

Gravely 06100305

SCR, PH PAN HD #6-32X1.000 ZCC

$

$

Currently unavailable

3

Gravely 06538900

@NUT-LK-NYL 6-32 W/INSRT YWZC

$

$

Not available

4

Gravely 09003300

SWITCH,BLANK

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 09180300

SWITCH, TOGGLE - SPEED

$

$

Currently unavailable

6

Gravely 09190800

HOLDER, CUP

$11.99

$

In Stock, only 1 left!

0

7

Gravely 09483500

DISPLAY, GRAVELY

$

$

Currently unavailable

8

Gravely 09196600

SWITCH, PTO (SEALED)

$

$

Currently unavailable

9

Gravely 09196753

PANEL, CONTROL -RH (RED)

$

$

Currently unavailable

10

Gravely 09196900

SWITCH, ROCKER - DISPLAY

$

$

Currently unavailable

11

Gravely 09197100

PLUG, CHARGER USB

$

$

Currently unavailable

12

Gravely 09197700

SWITCH, KEY (SEALED)

$71.99

$

Usually ships in 4-12 days

0

12

Gravely 09362400

KEY & BOOT (QTY 2)

Note: Component Service Part

$

$

Not available

13

Gravely 09198853

PANEL, CONTROL -LH (RED)

$

$

Currently unavailable

14

Gravely 09361800

ALARM, AUDIBLE

$

$

Currently unavailable

15

Gravely 09362800

PLUG, SWITCH

$

$

Currently unavailable
