997002 (Pro-Turn EV60 RD) - Gravely Pro-Turn 60" Zero-Turn Mower, Electric, Rear Discharge (SN: 000300 & Above) Fenders and Bumper Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Electric, Rear Discharge

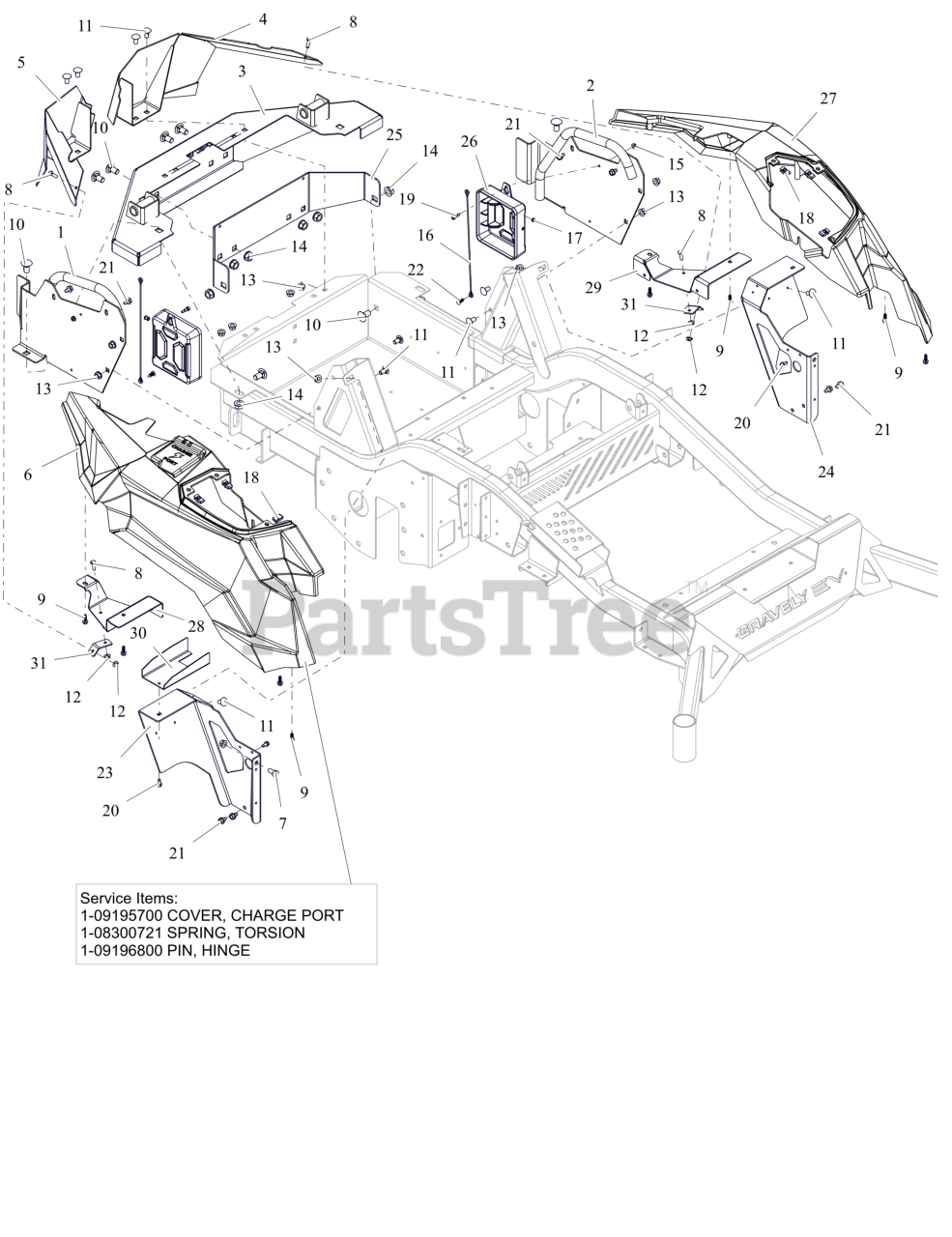

Fenders and Bumper Parts Diagram

  • Title

1

Gravely 09179253

WLDMT, REAR FENDER MOUNT-RH (RED)

$

$

Currently unavailable

2

Gravely 09179353

WLDMT, REAR FENDER MOUNT-LH (RED)

$

$

Currently unavailable

3

Gravely 09180653

WLDMT, BUMPER PT EV (RED)

$

$

Currently unavailable

4

Gravely 09191751

WLDMT, REAR WRAP-LH (BLACK)

$

$

Currently unavailable

5

Gravely 09191851

WLDMT, REAR WRAP-RH (BLACK)

$

$

Currently unavailable

6

Gravely 09358800

ASM, FENDER RH PRO-TURN EV

$

$

Currently unavailable

6

Gravely 09195700

COVER, CHARGE PORT

Note: Service Component Part

$

$

Currently unavailable

6

Gravely 08300721

SPRING, TORSION

Note: Service Component Part

$

$

Currently unavailable

6

Gravely 09196800

PIN, HINGE

Note: Service Component Part

$

$

Currently unavailable

7

Gravely 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06100231

SCR, PLASTITE-HWH 0.25 X 0.75 ZC120

$1.49

$

In Stock, Qty 6

0

10

Gravely 06200420

BLT, RHSN .50-13X1.00 G5 ZCC

$3.99

$

In Stock, only 3 left!

0

11

Gravely 06200432

BTL,RHSSN .375-16 X 0.75 G5 FPB

$3.99

$

In Stock, only 1 left!

0

12

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500932

NUT, FLG-TOP LK #10-24 GRF ZCC

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 06900317

CABLE, 12.0 LANYARD, NYLON

$3.49

$

In Stock, only 2 left!

0

17

Gravely 07001918

POST, & SCREW, PUSH LOCK .25 X .25

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07070101

BLT-SHLDR .25X.375

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

21

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 16

0

23

Gravely 09179453

MOUNT, FRONT FENDER-RH

$

$

Currently unavailable

24

Gravely 09179553

MOUNT, FRONT FENDER-LH

$

$

Currently unavailable

25

Gravely 09180751

SUPPORT, BUMPER (BLACK)

$

$

Currently unavailable

26

Gravely 09185400

COVER, BATTERY BUSBAR TERMINAL

$

$

Currently unavailable

27

Gravely 09193700

FENDER, LH PRO-TURN EV

$

$

Currently unavailable

28

Gravely 09198051

SHIELD, FENDER MOUNT -RH (BLACK)

$

$

Currently unavailable

29

Gravely 09198151

SHIELD, FENDER MOUNT-LH (BLACK)

$

$

Currently unavailable

30

Gravely 09386651

SHIELD, DEBRIS -CHARGE PORT (BLACK)

$

$

Currently unavailable

31

Gravely 09651851

STRAP, SUPPORT - REAR WRAP (BLACK)

$

$

Currently unavailable
