997001 (Pro-Turn EV60 SD) - Gravely Pro-Turn 60" Zero-Turn Mower, Electric, Side Discharge (SN: 000300 & Above) Frame - SD Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Electric, Side Discharge

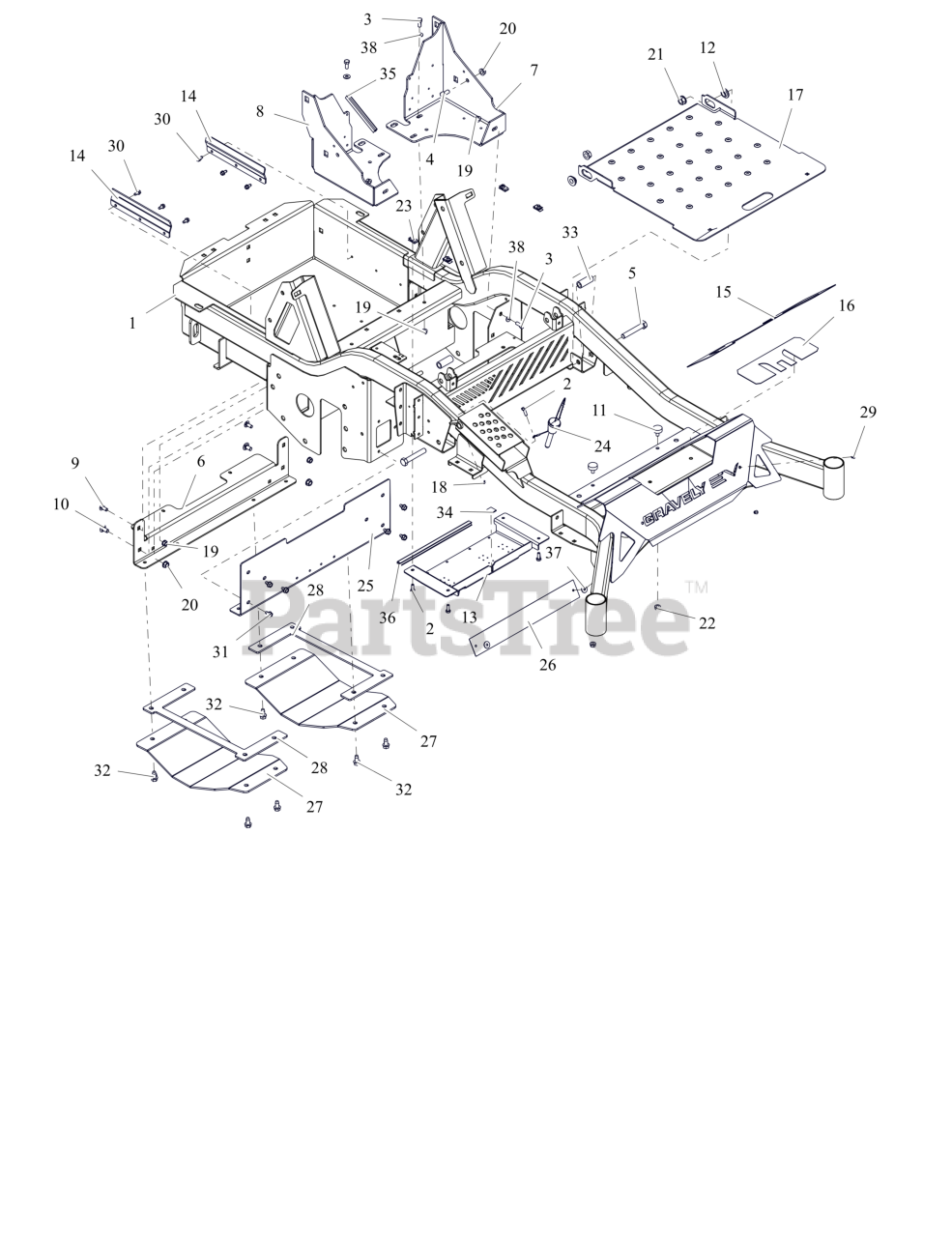

Frame - SD Parts Diagram

  • Title

1

Gravely 59700900

KIT, EV FRAME W/DECALS-GRAVELY

$

$

Currently unavailable

2

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

3

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05901737

BLT, HEX .50-13X3.00 G5 ZCC

$4.99

$

In Stock, only 1 left!

0

6

Gravely 09192653

BRKT, SKID PLATE MTG. (RED)

$

$

Currently unavailable

7

Gravely 09179153

BRKT, SUPPORT ROPS -LH (RED)

$

$

Currently unavailable

8

Gravely 09179053

BRKT, SUPPORT ROPS-RH (RED)

$

$

Currently unavailable

9

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06200336

BLT, RHSSN .38-16X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

11

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

12

Gravely 03989100

BSHG-FLG .515X.750X.310X1.120

$3.49

$

In Stock, Qty 20+

0

13

Gravely 09192553

COVER, BOTTOM ACCESS -OPEN (RED)

$

$

Currently unavailable

14

Gravely 09439653

DEFLECTOR, BATTERY -EV (RED)

$

$

Currently unavailable

15

Gravely 05104800

GRIP, FRONT

$18.99

$

Usually ships in 4-12 days

0

16

Gravely 07801139

GRIP, TAPE FRONT

$

$

Currently unavailable

17

Gravely 59113500

KIT,ACCESS PANEL W/DECALS-RED

$103.99

$

Usually ships in 4-12 days

0

18

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

23

Gravely 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06800203

PIN, MAGNETIC .50X2.50
(Superseded to 06800218)

$22.99

$

Usually ships in 4-12 days

0

25

Gravely 09192453

PLATE, FRONT FRAME (RED)

$

$

Currently unavailable

26

Gravely 04718451

PLATE, BACK FOOT-REST XL

$8.49

$

Usually ships in 4-12 days

0

27

Gravely 09180051

PLATE, SKID (BLACK)

$

$

Currently unavailable

28

Gravely 09180151

PLATE, SKID TENSION (BLACK)

$

$

Currently unavailable

29

Gravely 06800120

RIVET, .1875 AL/AL .126-.250

$

$

Not available

30

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

31

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

32

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

33

Gravely 05501319

SPACER, .515X.75X1.83

$4.99

$

Usually ships in 4-12 days

0

34

Gravely 07525100

STOP

$2.49

$

Usually ships in 4-12 days

0

35

Gravely 00918200

STRIP, COWL

$5.99

$

Usually ships in 4-12 days

0

36

Gravely 00918200

STRIP, COWL

$5.99

$

Usually ships in 4-12 days

0

37

Gravely 06401214

WSHR, RBR W/ADHESIVE .25X.75X.06

$2.49

$

Usually ships in 4-12 days

0

38

Gravely 06401124

WSHR, FLT .312X.734X.065 ZCC

$0.99

$

In Stock, Qty 20+

0
