997001 (Pro-Turn EV60 SD) - Gravely Pro-Turn 60" Zero-Turn Mower, Electric, Side Discharge (SN: 000300 & Above) Deck Lift - LH Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Electric, Side Discharge

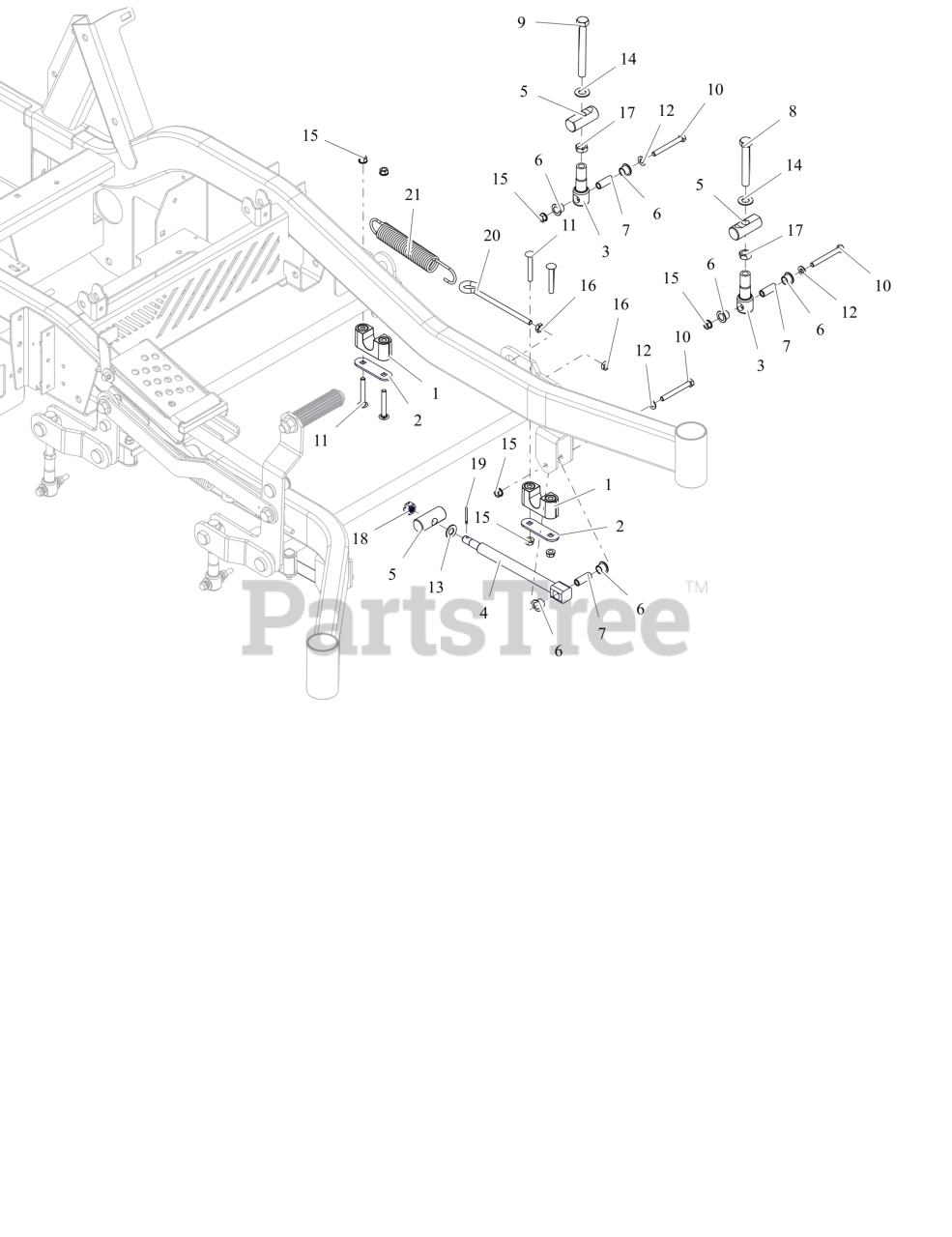

Deck Lift - LH Parts Diagram

  • Title

1

Gravely 07500414

ASM-BUSHING, DECK LIFT

$22.99

$

In Stock, only 1 left!

0

2

Gravely 04766551

PLATE, BEARING SUPPORT

$7.99

$

In Stock, only 1 left!

0

3

Gravely 05081400

LINK, DECK LIFT FORMED

$15.99

$

In Stock, Qty 10

0

4

Gravely 05126700

DRAG,LINK-HD

$18.99

$

In Stock, only 1 left!

0

5

Gravely 05149500

PIN, DECK LIFT

$15.99

$

In Stock, Qty 20+

0

6

Gravely 05501409

BSHG, FLANGED .50X.625X.50X.062

$2.99

$

In Stock, only 3 left!

0

7

Gravely 05501417

SPCR, .31X.50X1.265

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 05901735

BLT, HEX 0.5-13X3.5F GR5 ZCC

$5.99

$

In Stock, only 2 left!

0

9

Gravely 05901736

BLT, HEX .50-13X4.50F G8 ZCC

$9.49

$

In Stock, only 1 left!

0

10

Gravely 05901807

BLT, HEX .31-18X2.75 G5 ZCC

$2.49

$

In Stock, only 2 left!

0

11

Gravely 06200311

BLT, RHSSN.31-18X2.25 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

12

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06401018

WSHR, BLVL .505 X 1.000 X .073 ZCC

$

$

Currently unavailable

14

Gravely 06401116

WSHR, FLT .557X1.040X.102 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06500911

NUT-JAM .500-13 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06505000

NUT-SL .50-13

$3.49

$

In Stock, Qty 20+

0

19

Gravely 06700212

PIN,CTR.12X1.25EXTPRSQCT ZC120

$0.99

$

In Stock, Qty 20+

0

20

Gravely 07001814

BOLT,.38-16 X 5.25-.62 DIA EYE

$13.99

$

Usually ships in 4-12 days

0

21

Gravely 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 6

0
