997001 (Pro-Turn EV60 SD) - Gravely Pro-Turn 60" Zero-Turn Mower, Electric, Side Discharge (SN: 000101 - 000299) Seat Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Electric, Side Discharge

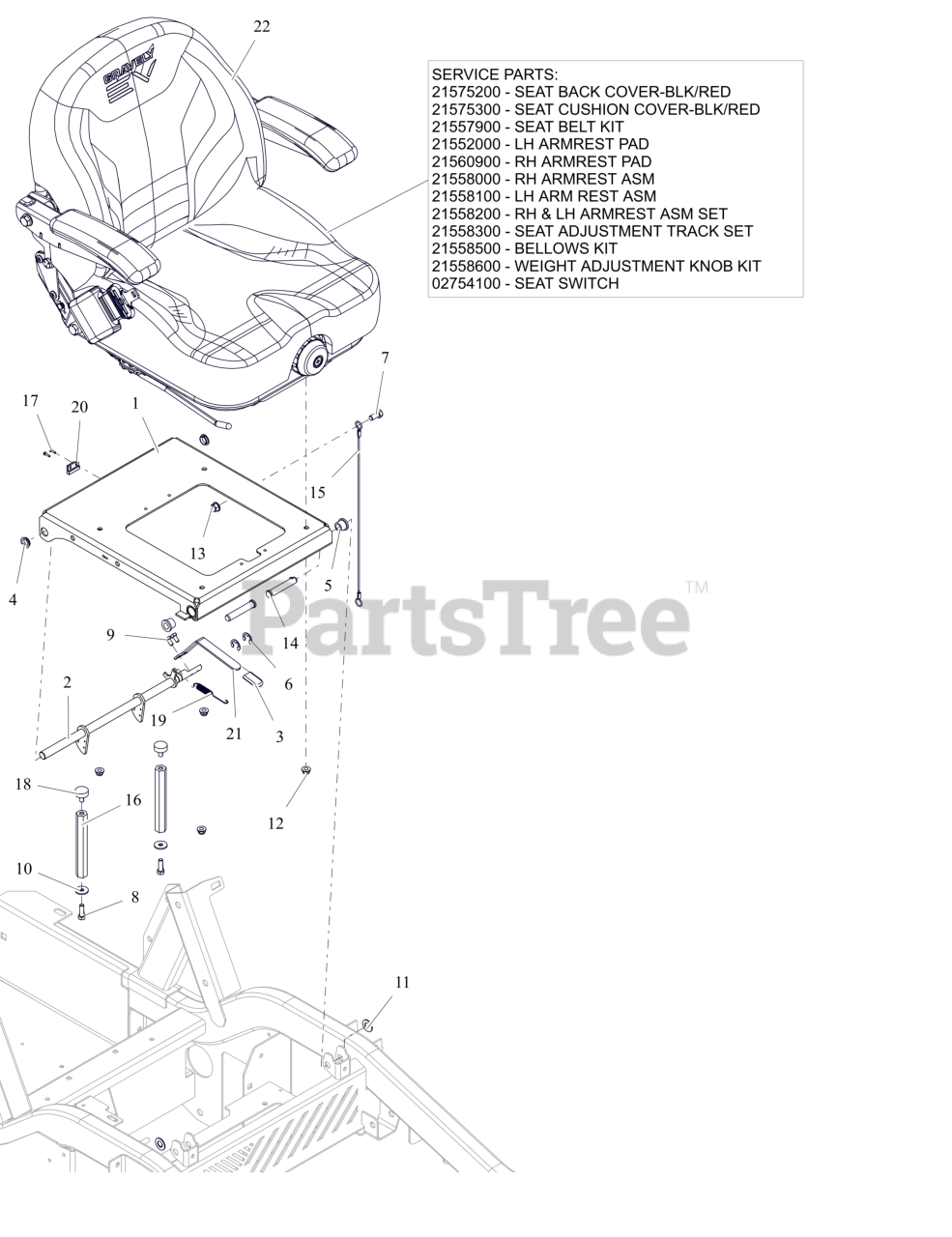

Seat Parts Diagram

  • Title

1

Gravely 09191553

WLDMT, SEAT PLATE (RED)

$

$

Currently unavailable

2

Gravely 09191653

WLDMT, SEAT LATCH (RED)

$

$

Currently unavailable

3

Gravely 04396600

GRIP, SEAT LEVER, GREY

$

$

Not available

4

Gravely 05500021

BUSHING, POLYLINER-.63 SNAPIN

$2.99

$

In Stock, Qty 13

0

5

Gravely 05500901

BSHG, FLG .516X.750X.625X.937

$5.99

$

In Stock, only 2 left!

0

6

Gravely 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05901833

BLT, HEX .31-18X1.00 G8 ZCC M

$3.99

$

In Stock, only 3 left!

0

9

Gravely 05901918

BLT, HEX 0.375-16X1 GR5 EP80 ZC120

$1.49

$

In Stock, only 1 left!

0

10

Gravely 06401027

WSHR,FLT .328X1.00X.094 ZCC

$3.99

$

In Stock, only 3 left!

0

11

Gravely 06401115

WSHR, FLT .531X1.00X.063 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06800202

PIN, SLIC-.500X42.70X2.31 -ZC

$7.99

$

Usually ships in 4-12 days

0

15

Gravely 06900727

CABLE, WIRE (LANYARD)-.093X16.20

$

$

Currently unavailable

16

Gravely 07001836

NUT, COUPLING .312-18 X 5.715

$

$

Currently unavailable

17

Gravely 07400205

SCR-TAP #4-40X.50 HWH ZCC

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

19

Gravely 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 6

0

20

Gravely 09196000

SWITCH, MAGNET (NO WIRE)

$

$

Currently unavailable

21

Gravely 09197953

LEVER, LATCH SEAT (RED)

$

$

Currently unavailable

22

Gravely 09366600

SEAT, GRAVELY MECH SUSPENSION LVR

$1163.99

$

Usually ships in 4-12 days

0

22

Gravely 21575200

SEAT BACK COVER-BLK/RED

Note: Component Service Part

$

$

Currently unavailable

22

Gravely 21575300

SEAT CUSHION COVER-BLK/RED

Note: Component Service Part

$

$

Currently unavailable

22

Gravely 21557900

KIT, SEAT BELT

Note: Component Service Part

$91.99

$

Usually ships in 4-12 days

0

22

Gravely 21552000

PAD, ARMREST
(Superseded to 21560900)

Note: Component Service Part

$

$

Not available

22

Gravely 21560900

PAD, ARMREST (HARD)

Note: Component Service Part

$

$

Not available

22

Gravely 21558000

ARMREST, RH ASSEMBLY

Note: Component Service Part

$65.99

$

Usually ships in 4-12 days

0

22

Gravely 21558100

ARMREST, LH ASSEMBLY

Note: Component Service Part

$

$

Not available

22

Gravely 21558200

SET, RH & LH ARMREST ASSEMBLY

Note: Component Service Part

$120.99

$

Usually ships in 4-12 days

0

22

Gravely 21558300

SET, SEAT ADJUSTMENT TRACK

Note: Component Service Part

$129.99

$

In Stock, only 3 left!

0

22

Gravely 21558500

KIT, BELLOWS

Note: Component Service Part

$79.99

$

Usually ships in 4-12 days

0

22

Gravely 21558600

KIT, WEIGHT ADJUSTMENT KNOB

Note: Component Service Part

$39.99

$

Usually ships in 4-12 days

0

22

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: Component Service Part

$9.49

$

In Stock, Qty 20+

0
