996209 (JSV 3400) - Gravely Atlas JSV Utility Vehicle (SN: 023000 - 023999) Electrical, Wire Harness Parts Diagram

Atlas JSV Utility Vehicle

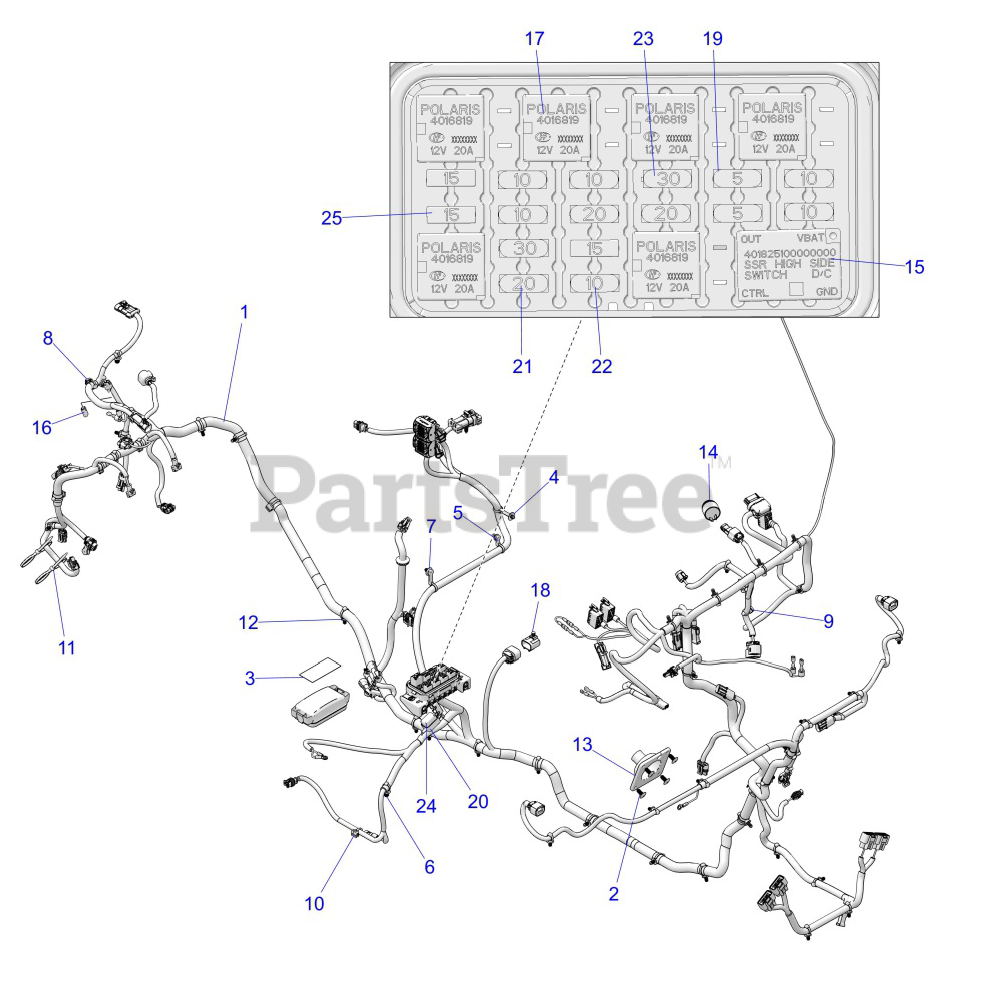

Electrical, Wire Harness Parts Diagram

  • Title

1

HARNESS-MAIN,GAS,STD

Note: [INCL. ALL]

$

$

Not available

2

CLIP,PLASTIC DART,NYLON(10)

$

$

Not available

3

Gravely 21902324

DECAL-RELAY/FUSE BLOCK,GAS

$

$

Currently unavailable

4

TIE-CABLE,25MM STAND OFF

$

$

Not available

5

CLIP-FIR TREE,DIA10-50MM

$

$

Not available

6

CLIP-FIR TREE,9.7-10.0MM HOLE

$

$

Not available

7

CLIP-OFFSET,FT6 FIR TREE

$

$

Not available

8

CLIP-EDGE, 1-3mm THICKNESS

$

$

Not available

9

CLIP-EDGE, 1-3mm THICKNESS

$

$

Not available

10

CLIP-EDGE,1-3MM THICKNESS

$

$

Not available

11

Gravely 21901419

CABLE TIE

$

$

Not available

12

Gravely 21900348

CLIP-ROUTING

$

$

Not available

13

GROMMET - 65MM, W/FLANGE, BLK

$

$

Not available

14

ALARM-BRAKE, WARNING

$

$

Not available

15

Gravely 21902672

RELAY - SSR 10A

$

$

Currently unavailable

16

CAP EVAP CONNECTOR

$

$

Not available

17

Gravely 21900624

RELAY-SPST,SERIES 303,SEALED

$

$

Not available

18

Gravely 21900736

COVER-DIAGNOSTIC,W/CLIP

$

$

Not available

19

Gravely 21900749

FUSE-5A,MINI BLADE

$

$

Not available

20

BOOT, CIRCUIT BREAKER, RED

$

$

Not available

21

Gravely 21901842

FUSE, 20 AMP, PARK

$

$

Not available

22

Gravely 21900651

FUSE,IGN.10 AMP,(10)

$

$

Not available

23

Gravely 21900664

FUSE,MAIN,30 AMP,(10)

$

$

Not available

24

Gravely 21900933

BREAKER-CIRCUIT,20 AMP,SEALED

$

$

Not available

25

Gravely 21901499

FUSE, MINI BLADE, 15 AMP

$

$

Not available
