996209 (JSV 3400) - Gravely Atlas JSV Utility Vehicle (SN: 023000 - 023999) Electrical, Battery Parts Diagram

Atlas JSV Utility Vehicle

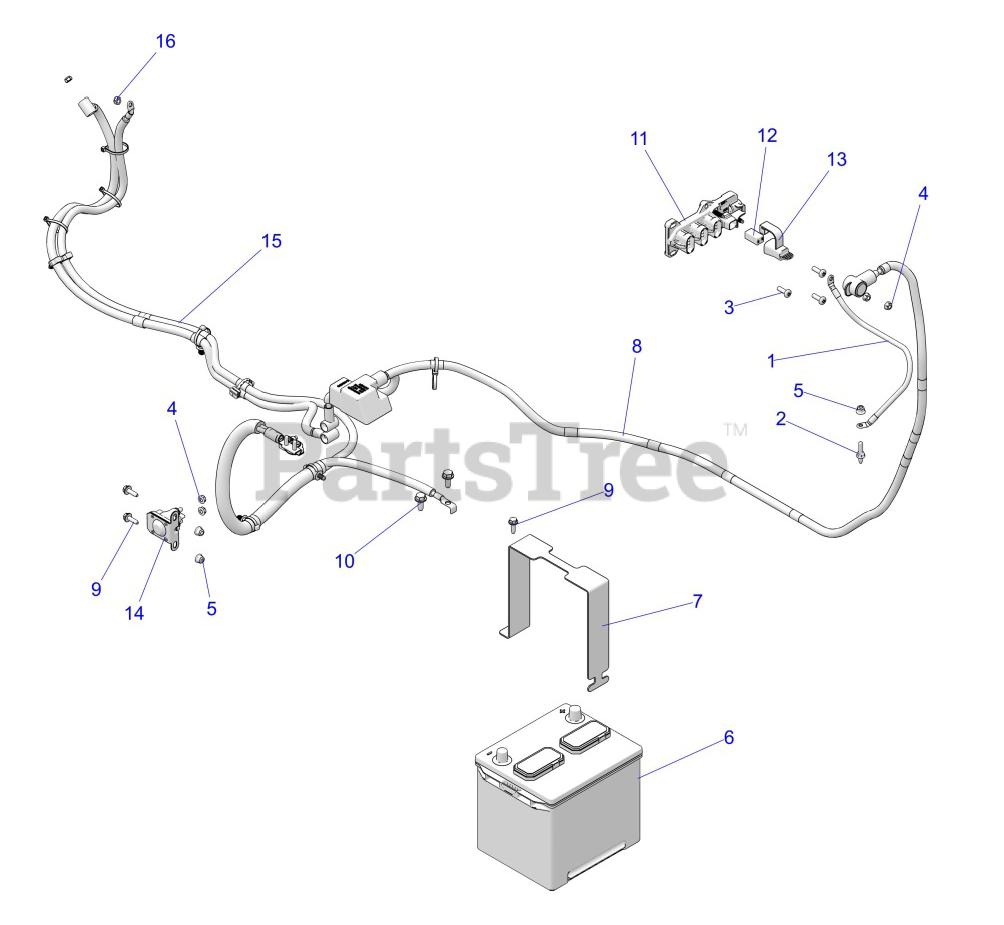

Electrical, Battery Parts Diagram

  • Title
1

CABLE-GROUND,ENG,BAT,CHAS

$

$

Not available

2

Gravely 21900441

STUD-M6X1.0X19-M6 TAPTITE

$

$

Not available

3

Gravely 21900644

SCR-TXPH-#14 X .75 HI-LO RIE

$

$

Not available

4

Gravely 21902309

NUT-HXFLGHD,M6,SERRATED

$

$

Currently unavailable

5

Gravely 21900463

NUT-M6 FLANGE,NYLOK

$

$

Not available

6

BATTERY, 575 CCA, FLOODED, FILLED

$

$

Not available

7

Gravely 21900199

BRKT-BATTERY STRAP GALV

$

$

Not available

8

CABLE-BATTERY TO SOLENOID

$

$

Not available

9

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

10

Gravely 21902316

SCR-HXFL-M8X1.25X20 TAP ZY3

$

$

Currently unavailable

11

Gravely 21902296

BLOCK-TERMINAL,3 POS

Note: Includes Fuse Cover

$

$

Currently unavailable

12

Gravely 21902297

FUSE-CARTRIDGE,25A

$

$

Currently unavailable

13

Gravely 21902298

COVER,TB,25A,JCASE

$

$

Currently unavailable

14

Gravely 21900667

SOLENOID-STARTER,SEALED

$

$

Not available

15

CABLE-START,TO,SOLENOID,GAS

$

$

Not available

16

Gravely 21900459

NUT,NYLOK(10)

$

$

Not available
