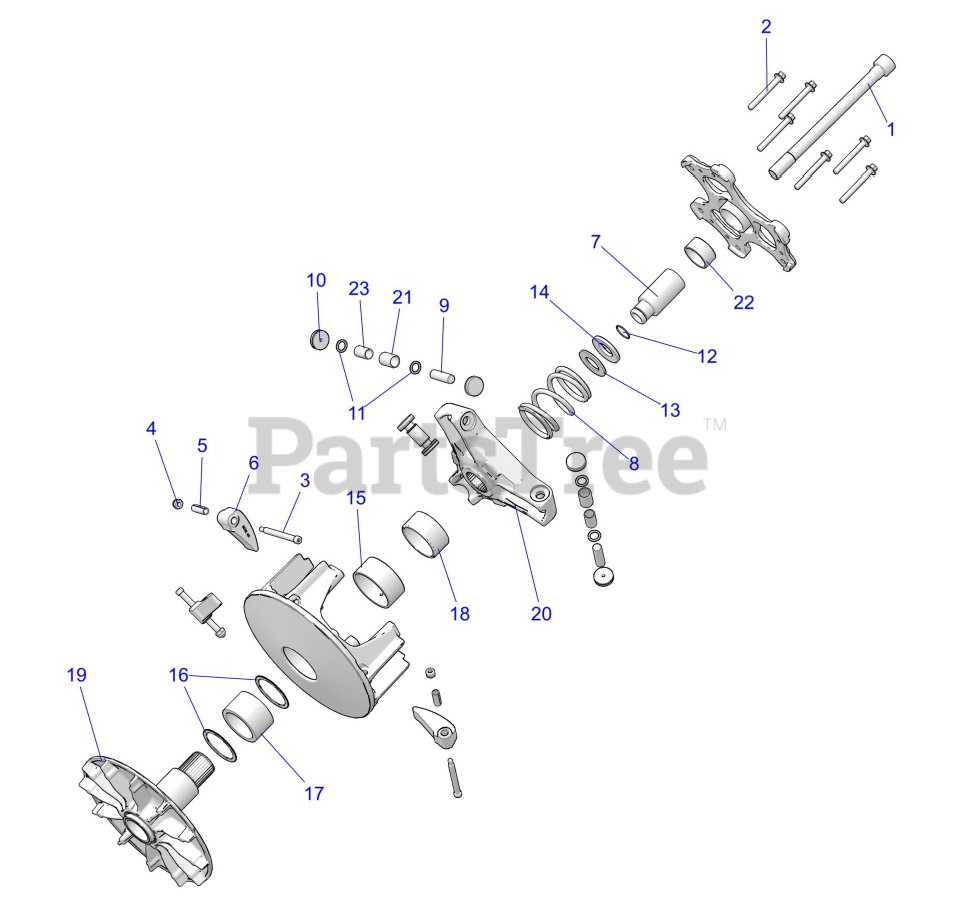

996209 (JSV 3400) - Gravely Atlas JSV Utility Vehicle (SN: 023000 - 023999) Drive Train, Clutch Primary Parts Diagram

Atlas JSV Utility Vehicle

Drive Train, Clutch Primary Parts Diagram

  • Title

ASM-DRV CLTCH,BSC,P190XNEBS

Note: Includes Item Number 2, 3, 4, 7,9 Through 21

$

$

Not available

1

Gravely 21902106

SCR-SH-M14X1.5X180 10.9 SPC

$

$

Currently unavailable

2

Gravely 21900384

SCR-M6X1.0X50.0 HX/FL-YD (10)

$

$

Not available

3

Gravely 21902071

BOLT-SHIFT WEIGHT,BUSHED

$

$

Currently unavailable

4

Gravely 21900456

NUT FLEXLOC(10)

$

$

Not available

5

Gravely 21902076

BUSHING-WEIGHT,1/4X7/8,DU

$

$

Currently unavailable

6

Gravely 21902074

ASM-WEIGHT-SHIFT,32-112,HC

Note: Includes Item Number 5, 6

$

$

Currently unavailable

6

Gravely 21902075

WEIGHT-SHIFT,32-112,HC

$

$

Currently unavailable

7

POST-CLUTCH,OUTER,O-RING

$

$

Not available

8

Gravely 21902077

SPRING-CLUTCH,99-277

$

$

Currently unavailable

9

Gravely 21902063

PIN-SPIDER

$

$

Currently unavailable

10

BUTTON-CLUTCH,22MM,SCP

$

$

Not available

11

Gravely 21902065

WASHER-CLUTCH,SPIDER ROLLER

$

$

Currently unavailable

12

O-RING 1.0X17.5MM,90A

$

$

Not available

13

Gravely 21902059

WSHR-20.5X38.0X2.27 P&O

$

$

Currently unavailable

14

Gravely 21902072

WSHR-BELLE,21X37.5X3.8,SPC

$

$

Currently unavailable

15

BUSHING-50X55X25,MU

$

$

Not available

16

Gravely 21902073

WSHR-CLUTCH,40.5X49X0.8,SP-21

$

$

Currently unavailable

17

Gravely 21902067

BEARING-NEEDLE,40X50X30

$

$

Currently unavailable

18

SPACER-CLUTCH,P90X,QPQ

$

$

Not available

19

Gravely 21902069

ASM-SHEAVE,STAT,P190X 1000

$

$

Currently unavailable

20

ASM-SPIDER,22MM,P90X,HD

Note: Includes Item Number 9, 10, 11, 21

$

$

Not available

21

ASM-SPIDER ROLLER,P90X,25MM

Note: Includes Item Number 21

$

$

Not available

21

ROLLER-SPIDER,12X14.3X25

$

$

Not available

22

BUSHING-1.13X1.28X0.63,MU

$

$

Not available

23

BUSHING-10X12X25,MU

$

$

Not available
