996209 (JSV 3400) - Gravely Atlas JSV Utility Vehicle (SN: 023000 - 023999) Brakes, Brake Lines and Master Cylinder Parts Diagram

Atlas JSV Utility Vehicle

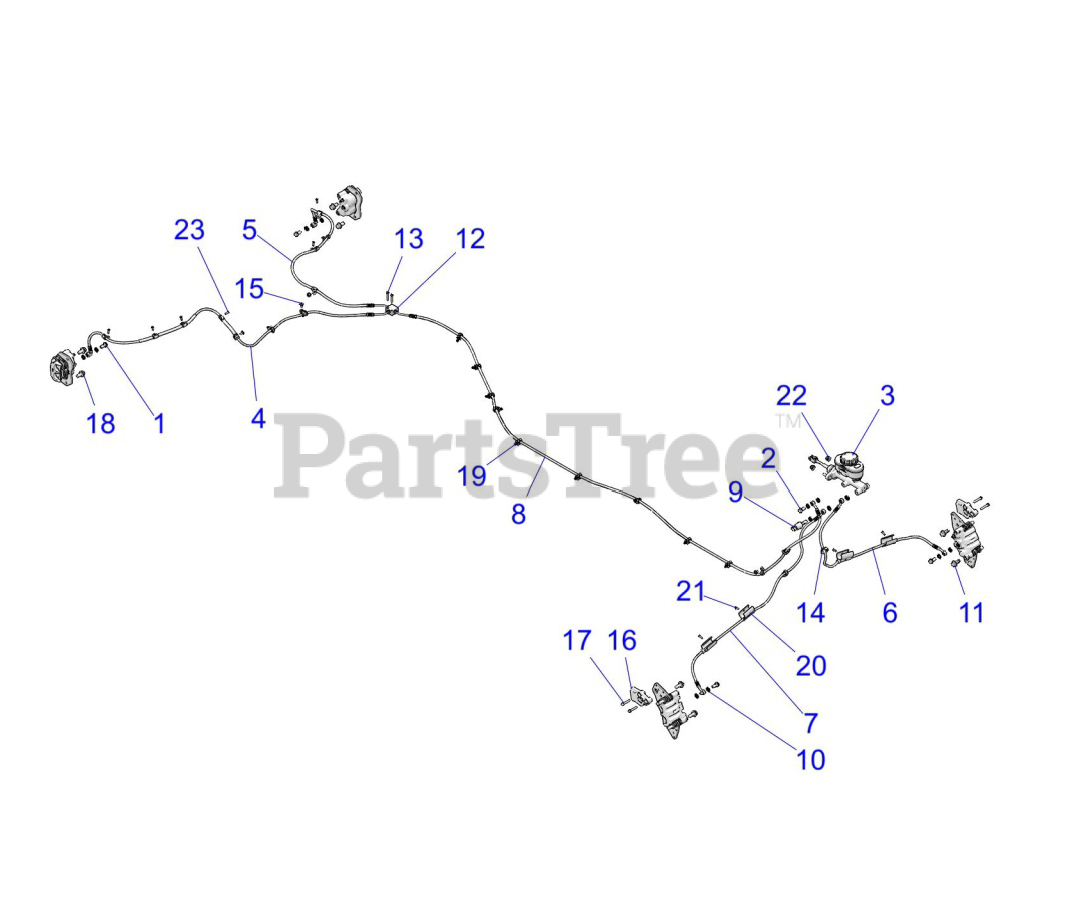

Brakes, Brake Lines and Master Cylinder Parts Diagram

  • Title

1

Gravely 21900051

BOLT-BANJO,10MMX1.00

$

$

Not available

2

Gravely 21900053

BOLT-BANJO, 10MM X 1.25-6G

$

$

Not available

3

Gravely 21902044

ASM-M/C-T-FLANGE,3/4 BORE

$

$

Currently unavailable

4

LINE-BRK,RR,J

$

$

Not available

5

Gravely 21902045

LINE-BRK,RL,41.1,45F,90SB,290J

$

$

Currently unavailable

6

LINE-BRK,FL,36.8,45B,20B,13°,J

$

$

Not available

7

LINE-BRK,FR,42,70B,20B,120°J

$

$

Not available

8

Gravely 21902387

LINE-BRK,M/T,72.7,20B,20F,263

$

$

Currently unavailable

9

Gravely 21902053

SWITCH-BRK,M10X1.25,DBL,SEALED

$

$

Currently unavailable

10

Gravely 21900224

SEAL-STAT-O-3/8,70EP

$

$

Not available

11

Gravely 21900406

BOLT-M10X1.25X25,HXFLG,W/PATCH

$

$

Not available

12

Gravely 21900316

FITTING-TEE,BRAKE

$

$

Currently unavailable

13

Gravely 21900367

SCR-10-24X1.25TFM PN TRX TRI-Y

$

$

Currently unavailable

14

Gravely 21900348

CLIP-ROUTING

$

$

Not available

15

Gravely 21900369

SCREW(10)

$

$

Not available

16

Gravely 21902054

SCRAPER-BRAKE,FRONT

$

$

Currently unavailable

17

Gravely 21902055

SCR-HXFL,M6X1.0X35,W/PATCHLOK

$

$

Currently unavailable

18

Gravely 21900397

BOLT-M10X1.25X20,HXFLG-OLV D

$

$

Not available

19

Gravely 21902056

CLIP-NYLON,C,FIR-TREE

$

$

Currently unavailable

20

Gravely 21900265

RETAINER-BRAKE LINE,1"

$

$

Not available

21

Gravely 21900495

POP RIVET(50)

$

$

Not available

22

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

23

RIVET-POP 3/16(.126-.250)-ST-B

$

$

Not available
