996209 (JSV 3400) - Gravely Atlas JSV Utility Vehicle (SN: 023000 - 023999) Body, Seats and Seat Belts Parts Diagram

Atlas JSV Utility Vehicle

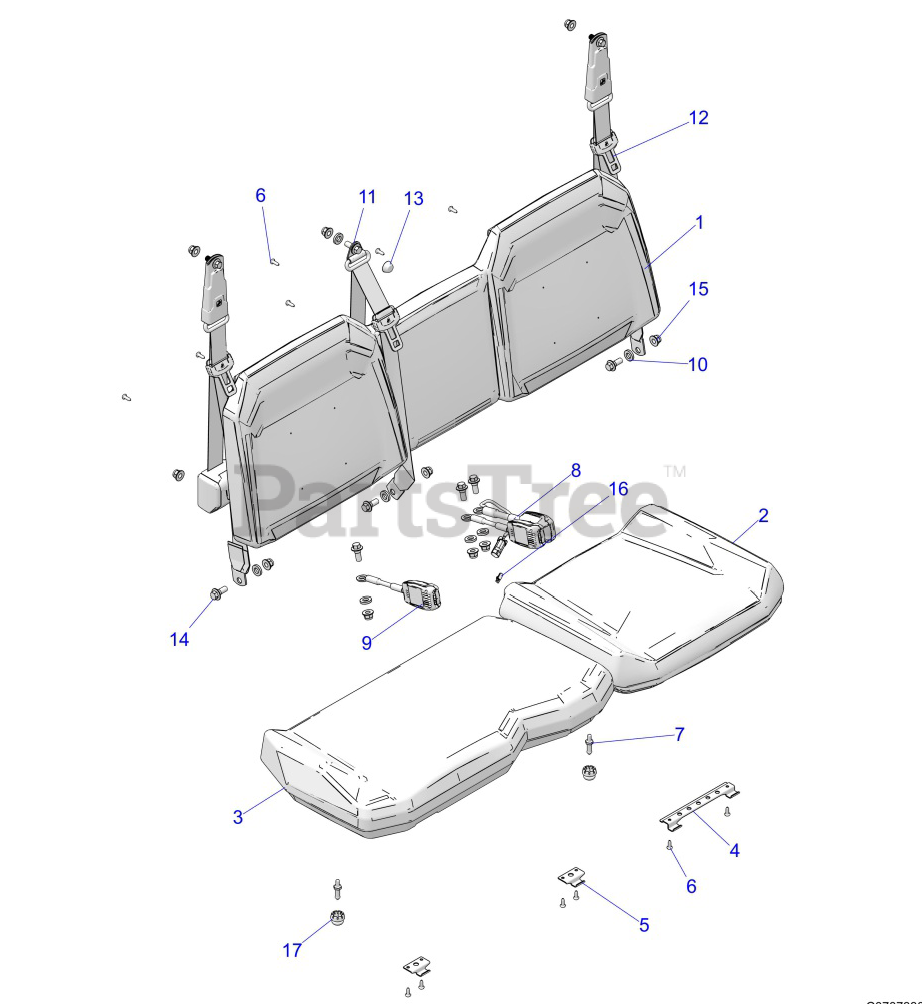

Body, Seats and Seat Belts Parts Diagram

  • Title
1

Gravely 21902288

ASM-SEAT,3PASS,BACK,GUNMETAL

$

$

Currently unavailable

2

ASM-SEAT,BTM,60,GUNMETAL

Note: Includes Item Number 4, 6, 7

$

$

Not available

3

ASM-SEAT,BTM,40,GUNMETAL

Note: Includes Item Number 5, 6, 7

$

$

Not available

4

Gravely 21900854

BRKT-SEAT HINGE,DOUBLE

$

$

Not available

5

Gravely 21900853

BRKT-SEAT HINGE

$

$

Not available

6

Gravely 21900414

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

$

$

Not available

7

Gravely 21900306

PIN-SEAT LATCH

$

$

Not available

8

Gravely 21901946

BUCKLE, SEATBELT, 90, SWITCH

$

$

Currently unavailable

9

Gravely 21900091

BUCKLE-SEATBELT,9.6,PASSENGER

$

$

Not available

10

Gravely 21900301

WASHER-SEATBELT,RUBBER

$

$

Not available

11

Gravely 21900088

ASM-SEAT BELT,3PT,CENTER

$

$

Not available

12

Gravely 21900089

ASM-SEAT BELT,3PT

$

$

Not available

13

Gravely 21902291

CAP-BOLT HEAD

$

$

Currently unavailable

14

Gravely 21900449

SCR-HXFLSH-M12X1.75-M14X9 ZOD

$

$

Not available

15

Gravely 21900471

NUT-HXFL M12X1.75 NYLOC ZOD

$

$

Not available

16

Gravely 21902293

CLIP-CONNECTOR,6.35MM HOLE

$

$

Currently unavailable

17

$

$

Not available
