996209 (JSV 3400) - Gravely Atlas JSV Utility Vehicle (SN: 023000 - 023999) Body, Box Mounting Parts Diagram

Atlas JSV Utility Vehicle

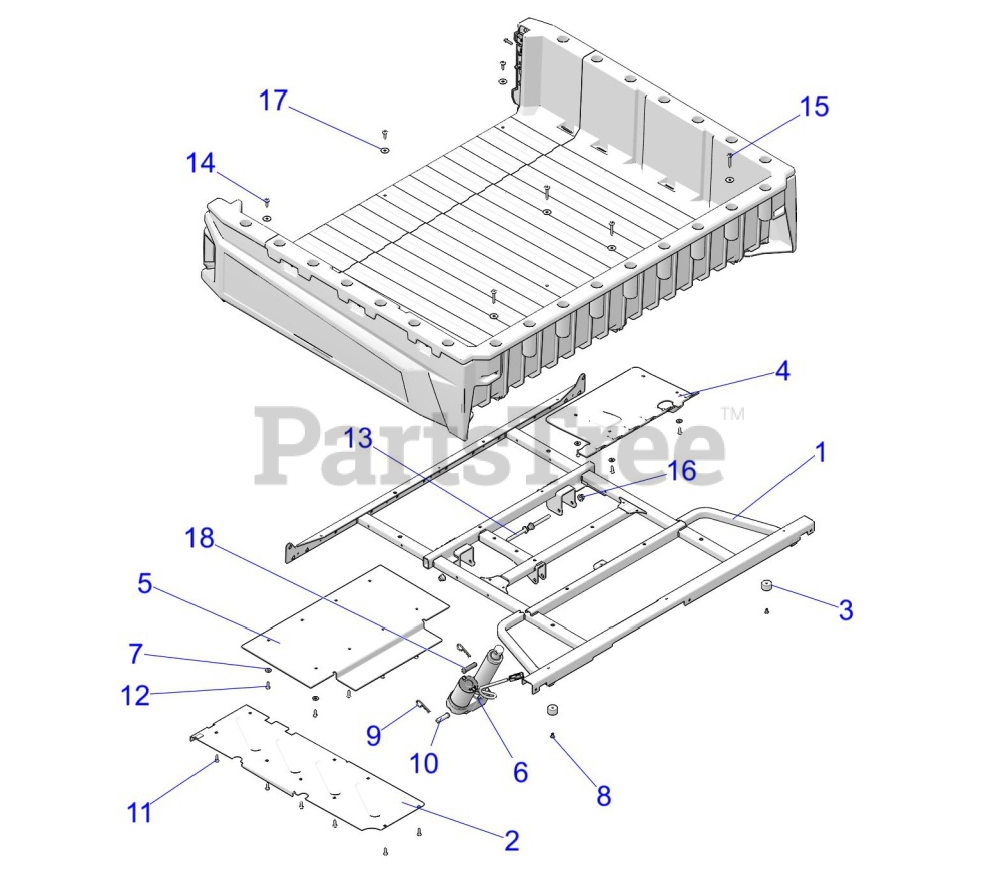

Body, Box Mounting Parts Diagram

  • Title
1

Gravely 21902331

WELD-FRAME,BOX,BLK

$

$

Currently unavailable

2

Gravely 21902336

SHIELD-BOX,CARGO

$

$

Currently unavailable

3

Gravely 21902338

BUMPER-BOX

$

$

Currently unavailable

4

Gravely 21902342

SHIELD-HEAT,FOIL,BOX,RGR

$

$

Currently unavailable

5

Gravely 21902343

SHIELD-HEAT,EXHAUST,REAR

$

$

Currently unavailable

6

Gravely 21902329

ACTUATOR,BOX LIFT,CMPT,TTN

$

$

Currently unavailable

7

Gravely 21902352

WASHER-.312 X .734 X .065-Z

$

$

Currently unavailable

8

Gravely 21900496

RIVET(50)

$

$

Not available

9

Gravely 21901334

CLIP, HITCH PIN

$

$

Not available

10

Gravely 21901335

PIN, CLEVIS

$

$

Not available

11

Gravely 21900644

SCR-TXPH-#14 X .75 HI-LO RIE

$

$

Not available

12

Gravely 21902348

SCR-TXPH-#14X3/4 HI/LO CLR

$

$

Currently unavailable

13

Gravely 21900444

SCR-HXFL-M10X1.25X80 8.8 ZOD

$

$

Not available

14

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

15

SCR-TXTH-M6X1.0X45 RIE

$

$

Not available

16

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

17

Gravely 21902351

WASHER-.281X1.00X.051

$

$

Currently unavailable

18

Gravely 21901336

PIN, CLEVIS BOX LIFT 2"

$

$

Not available
