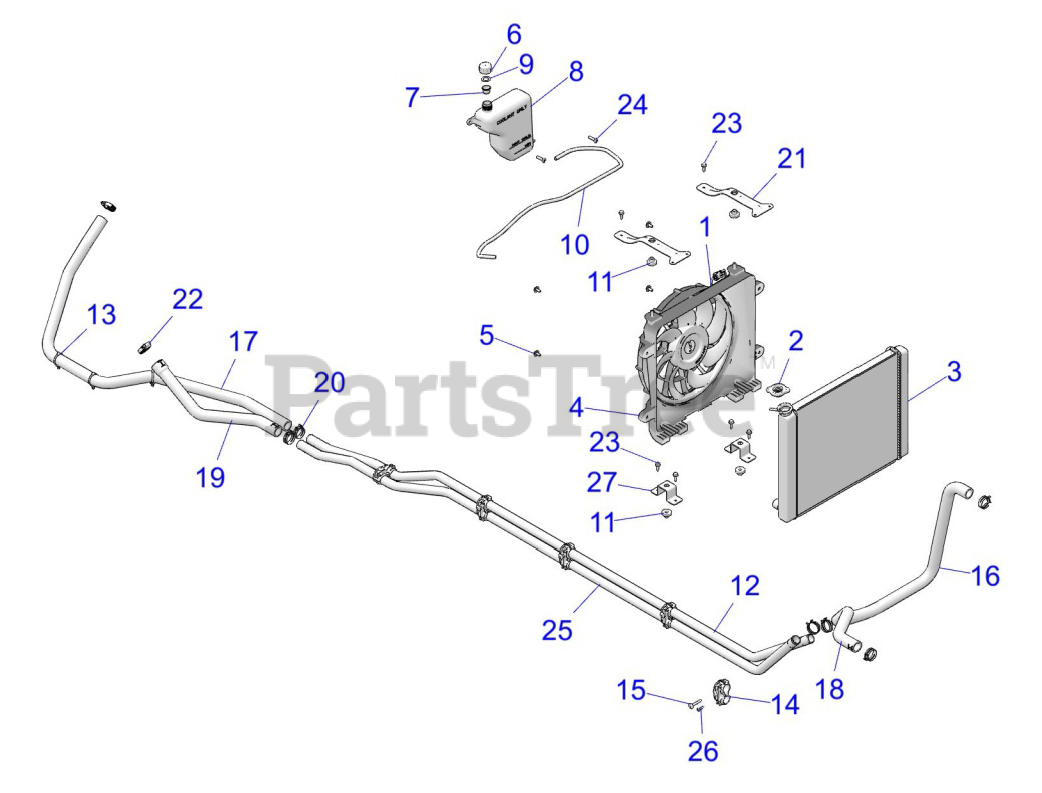

996208 (JSV 6400) - Gravely Atlas JSV Utility Vehicle (SN: 024000 & Above) Engine, Cooling Sytem Parts Diagram

Atlas JSV Utility Vehicle

Engine, Cooling Sytem Parts Diagram

  • Title

1

Gravely 21902201

ASM-RADIATOR

Note: [INCL. 2-5]

$

$

Currently unavailable

2

Gravely 21900030

CAP

$

$

Not available

3

Gravely 21902202

ASM-RADIATOR- CORE

$

$

Currently unavailable

4

Gravely 21902203

ASM-FAN-RADIATOR

$

$

Currently unavailable

5

Gravely 21900446

BOLT-M6X15MM

$

$

Not available

6

Gravely 21900250

CAP- OVERFLOW

$

$

Not available

7

Gravely 21900251

CAP-PLUG9X(GRN)-FLEX TEMP(10)

$

$

Not available

8

Gravely 21900266

TANK-SURGE

$

$

Not available

9

Gravely 21900292

GASKET (10)

$

$

Not available

10

Gravely 21900581

FUEL LINE-95 CENTIMETERS

$

$

Not available

11

Gravely 21900315

GROMMET

$

$

Not available

12

Gravely 21902198

TUBE-COOLANT

$

$

Currently unavailable

13

Gravely 21900348

CLIP-ROUTING

$

$

Not available

14

Gravely 21902194

CLIP-COOLANT ROUTING

$

$

Currently unavailable

15

Gravely 21902195

SCR-M6X1X40-TR/TX-BLK

$

$

Currently unavailable

16

Gravely 21902204

HOSE-UPPER- RAD

$

$

Currently unavailable

17

Gravely 21902200

HOSE-ENGINE,OUT,GAS

$

$

Currently unavailable

18

Gravely 21902205

HOSE-LOWER- RAD

$

$

Currently unavailable

19

Gravely 21902199

HOSE-ENGINE,IN

$

$

Currently unavailable

20

SPRINGBAND-CLAMP 32/12,BROWN

$

$

Not available

21

Gravely 21902246

BRKT-MOUNT-RADIATOR-ARNS-BLK

$

$

Currently unavailable

22

Gravely 21900342

CLAMP-HOSE(WORM DR)25-40MM

$

$

Not available

23

Gravely 21900393

SCR-M6X1.0X20-HXHD-FLG-TDFM-BL

$

$

Not available

24

Gravely 21900387

SCR-#14X1 HI/LO-PH-PN TRX-M

$

$

Not available

25

Gravely 21902197

TUBE-COOLANT

$

$

Currently unavailable

26

Gravely 21900368

SCREW

$

$

Not available

27

Gravely 21902196

BRKT-RADIATOR MNT-LWR-BLK

$

$

Currently unavailable
