996208 (JSV 6400) - Gravely Atlas JSV Utility Vehicle (SN: 024000 & Above) Brakes, Brake Lines and Master Cylinder Parts Diagram

Atlas JSV Utility Vehicle

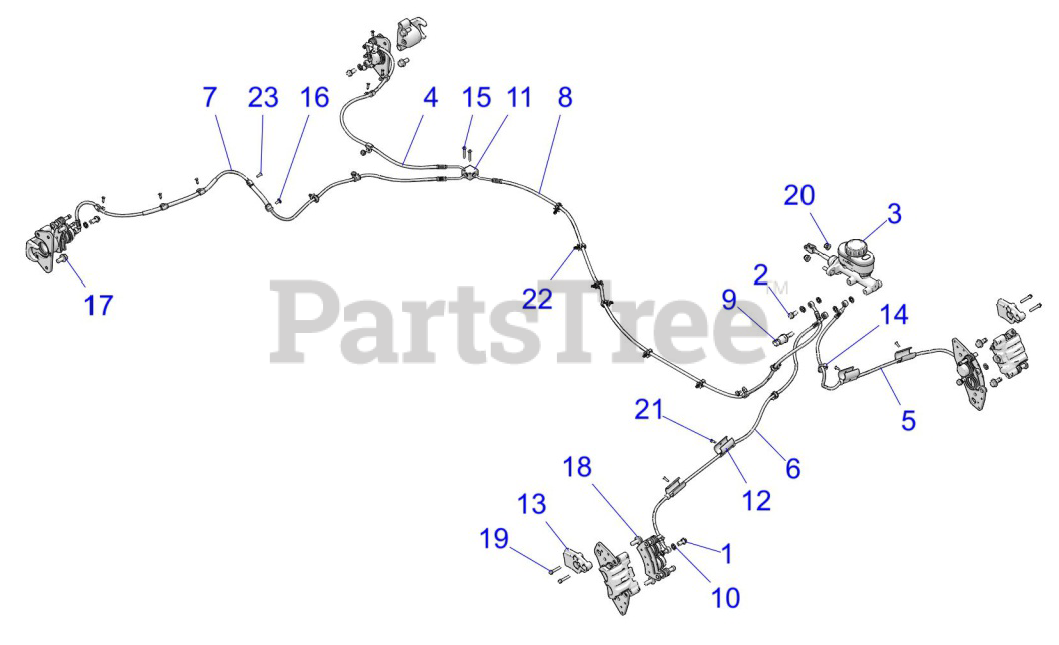

Brakes, Brake Lines and Master Cylinder Parts Diagram

  • Title

1

Gravely 21900051

BOLT-BANJO-10MMX1.00

$

$

Not available

2

Gravely 21900053

BOLT-BANJO- 10MM X 1.25-6G

$

$

Not available

3

Gravely 21902044

ASM-M/C-T-FLANGE-3/4 BORE

$

$

Currently unavailable

4

Gravely 21902045

LINE-BRK-RL-41.1-45F-90SB-290J

$

$

Currently unavailable

5

LINE-BRK,FL,36.8,45B,20B,13°,J

$

$

Not available

6

LINE-BRK,FR,42,70B,20B,120°J

$

$

Not available

7

LINE-BRK,RR,J

$

$

Not available

8

Gravely 21902052

LINE-BRK-M/T-105.4-20B-30F-263

$

$

Currently unavailable

9

Gravely 21902053

SWITCH-BRK-M10X1.25-DBL-SEALED

$

$

Currently unavailable

10

Gravely 21900224

SEAL-STAT-O-3/8-70EP

$

$

Not available

11

Gravely 21900316

FITTING-TEE-BRAKE

$

$

Currently unavailable

12

Gravely 21900265

RETAINER-BRAKE LINE-1"

$

$

Not available

13

Gravely 21902054

SCRAPER-BRAKE- FRONT

$

$

Currently unavailable

14

Gravely 21900348

CLIP-ROUTING

$

$

Not available

15

Gravely 21900367

SCREW

$

$

Currently unavailable

16

Gravely 21900369

SCREW(10)

$

$

Not available

17

Gravely 21900397

BOLT-M10X1.25X20-HXFLG-OLV D

$

$

Not available

18

Gravely 21900406

BOLT-M10X1.25X25-HXFLG-W/PATCH

$

$

Not available

19

Gravely 21902055

SCR-HXFL-M6X1.0X35-W/PATCHLOK

$

$

Currently unavailable

20

Gravely 21900464

NUT-M8X1.25-FLG-NYLOC-OLIVE D

$

$

Not available

21

Gravely 21900495

POP RIVET(50)

$

$

Not available

22

Gravely 21902056

CLIP-NYLON-C-FIR-TREE

$

$

Currently unavailable

23

RIVET-POP 3/16(.126-.250)-ST-B

$

$

Not available
