996206 (JSV 3200) - Gravely Atlas JSV Utility Vehicle (SN: 000101 & Above) Suspension, Rear Carrier Parts Diagram

Atlas JSV Utility Vehicle

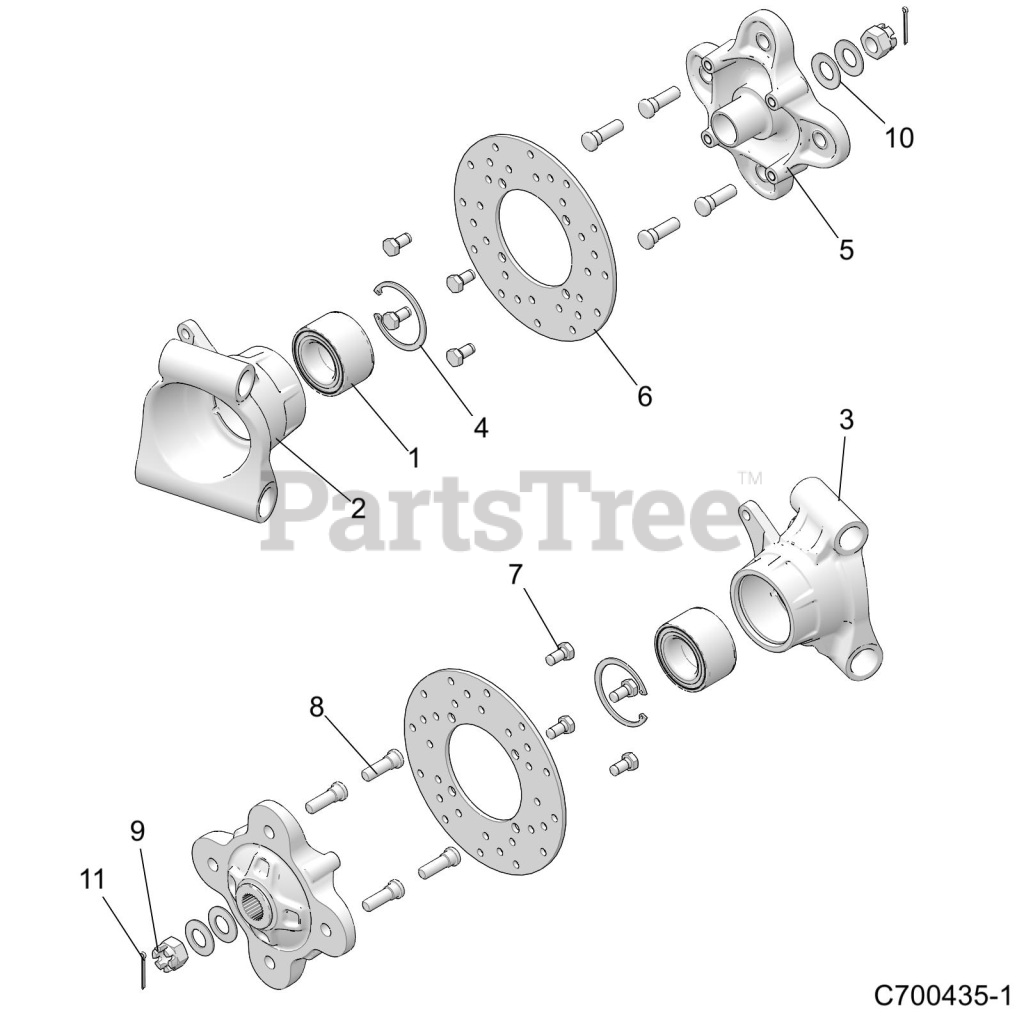

Suspension, Rear Carrier Parts Diagram

  • Title
1

Gravely 21902115

BEARING-WHEEL,40X74X40MM

$

$

Currently unavailable

2

Gravely 21902118

CARRIER-BEARING,LH

$

$

Currently unavailable

3

Gravely 21902123

CARRIER-BEARING,RH

$

$

Currently unavailable

4

Gravely 21900512

RING,RETAINING

$

$

Not available

5

Gravely 21902121

HUB-WHEEL,MACH,BLK

$

$

Currently unavailable

6

Gravely 21900185

DISC-BRAKE,REAR,8.625X.188

$

$

Not available

7

Gravely 21900443

SCR-M10X1.5X20,8.8 ZY3

$

$

Not available

8

Gravely 21900448

STUD-WHEEL,M12-1.5

$

$

Not available

9

Gravely 21900466

NUT-M18X1.5,CASTLE,ZINC/YELLOW

$

$

Not available

10

Gravely 21902122

WSHR-AXLE,M18,42X4.5

$

$

Currently unavailable

11

Gravely 21900501

PIN, COTTER

$

$

Not available
