996206 (JSV 3200) - Gravely Atlas JSV Utility Vehicle (SN: 000101 & Above) Engine, Cam Chain and Tensioner Parts Diagram

Atlas JSV Utility Vehicle

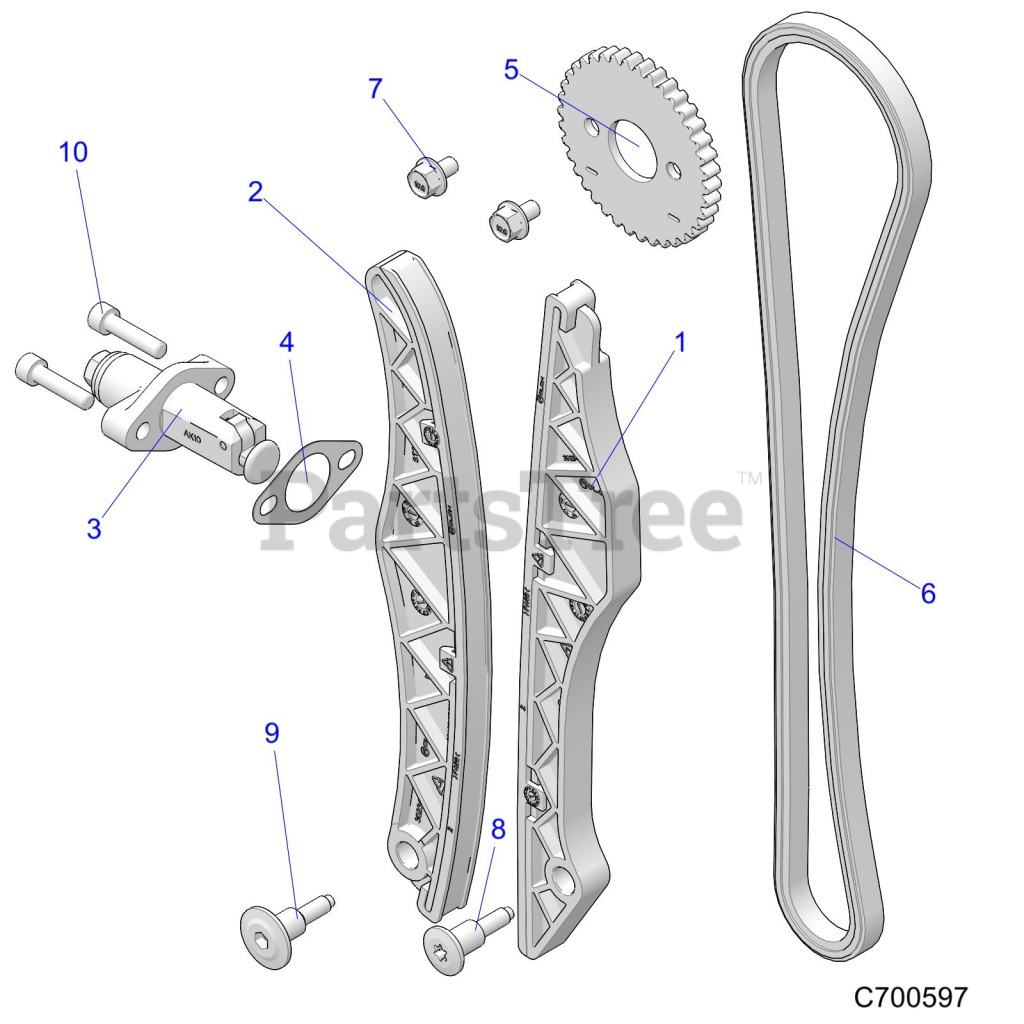

Engine, Cam Chain and Tensioner Parts Diagram

  • Title
1

Gravely 21902497

GUIDE-CAM CHAIN,FIXED,SOHC

$

$

Currently unavailable

2

Gravely 21902498

GUIDE-CAM CHAIN.TENSIONER,SOHC

$

$

Currently unavailable

3

Gravely 21902496

TENSIONER-RATCHETING,MECH

$

$

Currently unavailable

4

Gravely 21902501

GASKET, TENSIONER

$

$

Currently unavailable

5

Gravely 21902499

SPROCKET-CAM,DRIVEN,SOHC

$

$

Currently unavailable

6

Gravely 21902500

CHAIN-CAMSHAFT

$

$

Currently unavailable

7

Gravely 21900425

SCR-HXFL,M6X1.0X10 10.9

$

$

Not available

8

Gravely 21900426

BOLT-SHLDR,M6X12X15

$

$

Not available

$

$

Not available

10

Gravely 21902502

SCR-SH-M6X1.0X25 10.9 ZPC D204

$

$

Currently unavailable
