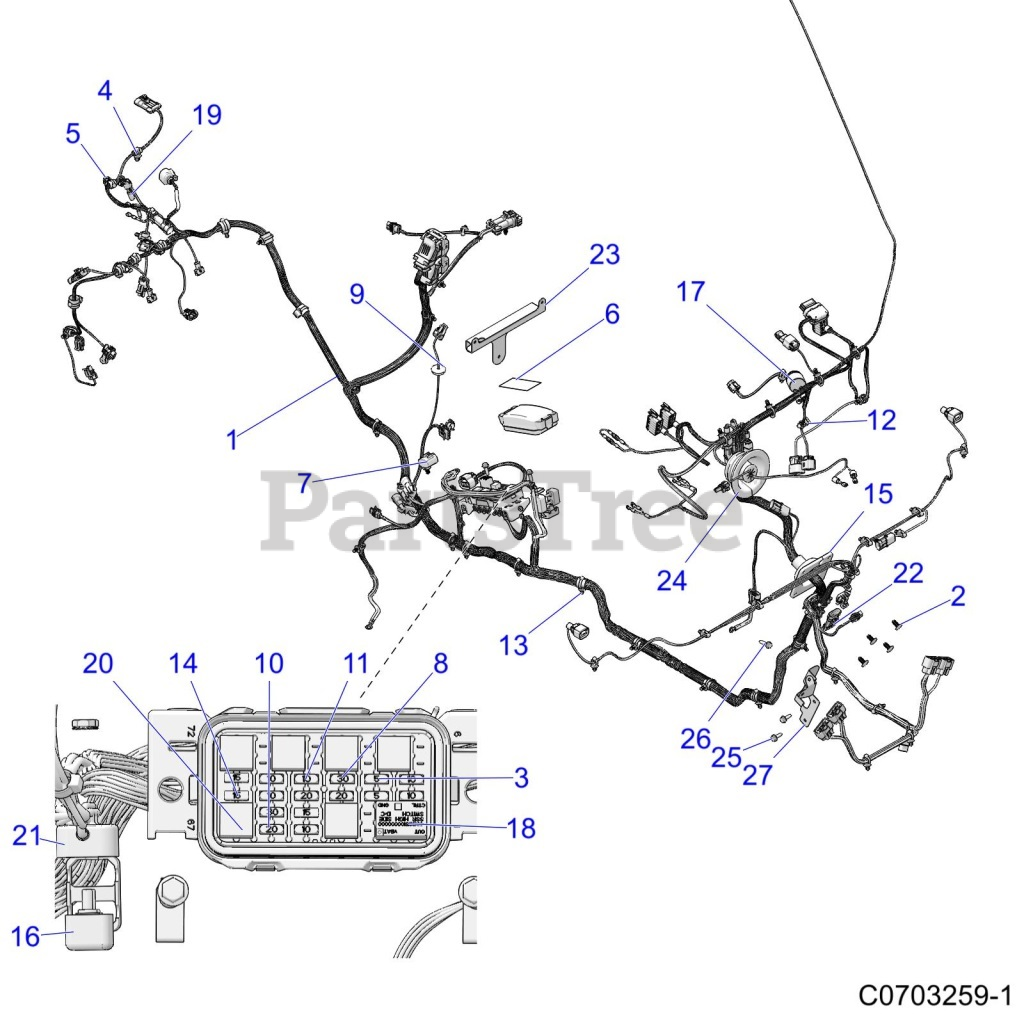

996206 (JSV 3200) - Gravely Atlas JSV Utility Vehicle (SN: 000101 & Above) Electrical, Harness Parts Diagram

Atlas JSV Utility Vehicle

Electrical, Harness Parts Diagram

  • Title
1

Gravely 21902544

HARNESS-MAIN,GAS,STD

Note: [INCL. 2-8, 10-13, 15-23]

$

$

Currently unavailable

2

Gravely 21902665

CLIP-PLASTIC, DART, NYLON

$

$

Currently unavailable

3

Gravely 21900749

FUSE-5A,MINI BLADE

$

$

Not available

4

Gravely 21902666

CLIP-FIR TREE, 9, 7-10MM HOLE

$

$

Currently unavailable

5

Gravely 21902667

CLIP-EDGE, 1-3MM THICKNESS

$

$

Currently unavailable

6

Gravely 21902324

DECAL-RELAY/FUSE BLOCK,GAS

$

$

Currently unavailable

7

Gravely 21900736

COVER-DIAGNOSTIC,W/CLIP

$

$

Not available

8

Gravely 21900664

FUSE,MAIN,30 AMP,(10)

$

$

Not available

9

Gravely 21902668

GROMMET - USB, 3 MM, 22 MM DIA

$

$

Currently unavailable

10

Gravely 21901842

FUSE, 20 AMP, PARK

$

$

Not available

11

Gravely 21900651

FUSE,IGN.10 AMP,(10)

$

$

Not available

12

Gravely 21902669

CLIP-EDGE, 1-3MM THICKNESS

$

$

Currently unavailable

13

Gravely 21900348

CLIP-ROUTING

$

$

Not available

14

Gravely 21901499

FUSE, MINI BLADE, 15 AMP

$

$

Not available

15

Gravely 21902670

GROMMET - 65MM, W/FLANGE, BLK

$

$

Currently unavailable

16

Gravely 21900933

BREAKER-CIRCUIT,20 AMP,SEALED

$

$

Not available

17

Gravely 21902671

ALARM-BRAKE, WARNING

$

$

Currently unavailable

18

Gravely 21902672

RELAY - SSR 10A

$

$

Currently unavailable

19

Gravely 21902673

CAP-EVAP CONNECTOR

$

$

Currently unavailable

20

Gravely 21900624

RELAY-SPST,SERIES 303,SEALED

$

$

Not available

21

Gravely 21902674

BOOT-CIRCUIT BREAKER, RED

$

$

Currently unavailable

22

Gravely 21902547

CONNECTOR-4M,M/P150,SEALED,BK

Note: 996206

$

$

Currently unavailable

23

Gravely 21902315

BRKT-ECU,ZEUS DIESEL

$

$

Currently unavailable

24

Gravely 21902307

GROMMET-HOOD LINER,SPLIT

$

$

Currently unavailable

25

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

26

Gravely 21902308

SCR-TFHFL-M6X1.0X25,ZTC

$

$

Currently unavailable

27

Gravely 21902306

BRKT-ROUTING,BLK

$

$

Currently unavailable
