996205 (JSV 3400) - Gravely Atlas JSV Utility Vehicle (SN: 000101 & Above) Suspension, Front Carrier Parts Diagram

Atlas JSV Utility Vehicle

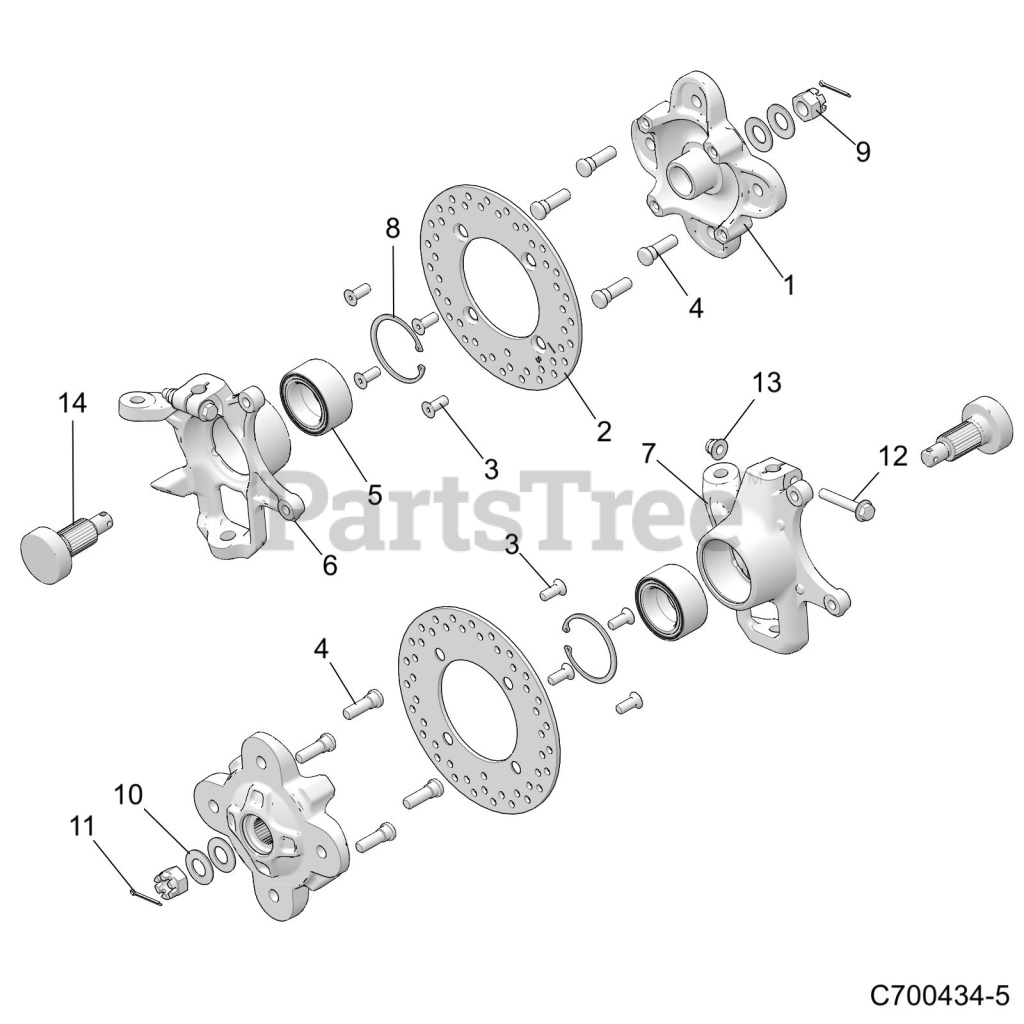

Suspension, Front Carrier Parts Diagram

  • Title
1

Gravely 21902146

HUB-WHEEL,FRONT MACH,BLK

$

$

Currently unavailable

2

Gravely 21902147

ROTOR,BRAKE

$

$

Currently unavailable

3

Gravely 21900411

SCR-M10X1.5X20 8.8 TXCS FL ZOD

$

$

Not available

4

Gravely 21900448

STUD-WHEEL,M12-1.5

$

$

Not available

5

Gravely 21902148

BEARING-BALL,SEALED,44X72X33.1

$

$

Currently unavailable

6

Gravely 21902149

KNUCKLE-FRONT,LH

$

$

Currently unavailable

7

Gravely 21902150

KNUCKLE-FRONT,RH

$

$

Currently unavailable

8

Gravely 21901424

RING, RETAINING, INTERNAL

$

$

Not available

9

Gravely 21900466

NUT-M18X1.5,CASTLE,ZINC/YELLOW

$

$

Not available

10

Gravely 21900478

WASHER, CONE

$

$

Not available

11

Gravely 21900501

PIN, COTTER

$

$

Not available

12

Gravely 21900438

SCR-HXFL-M10X1.25X60 10.9 ZOD

$

$

Not available

13

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

14

Gravely 21902389

SPINDLE-FRONT

$

$

Currently unavailable
