996205 (JSV 3400) - Gravely Atlas JSV Utility Vehicle (SN: 000101 & Above) Engine, Throttle Body and Valve Cover Parts Diagram

Atlas JSV Utility Vehicle

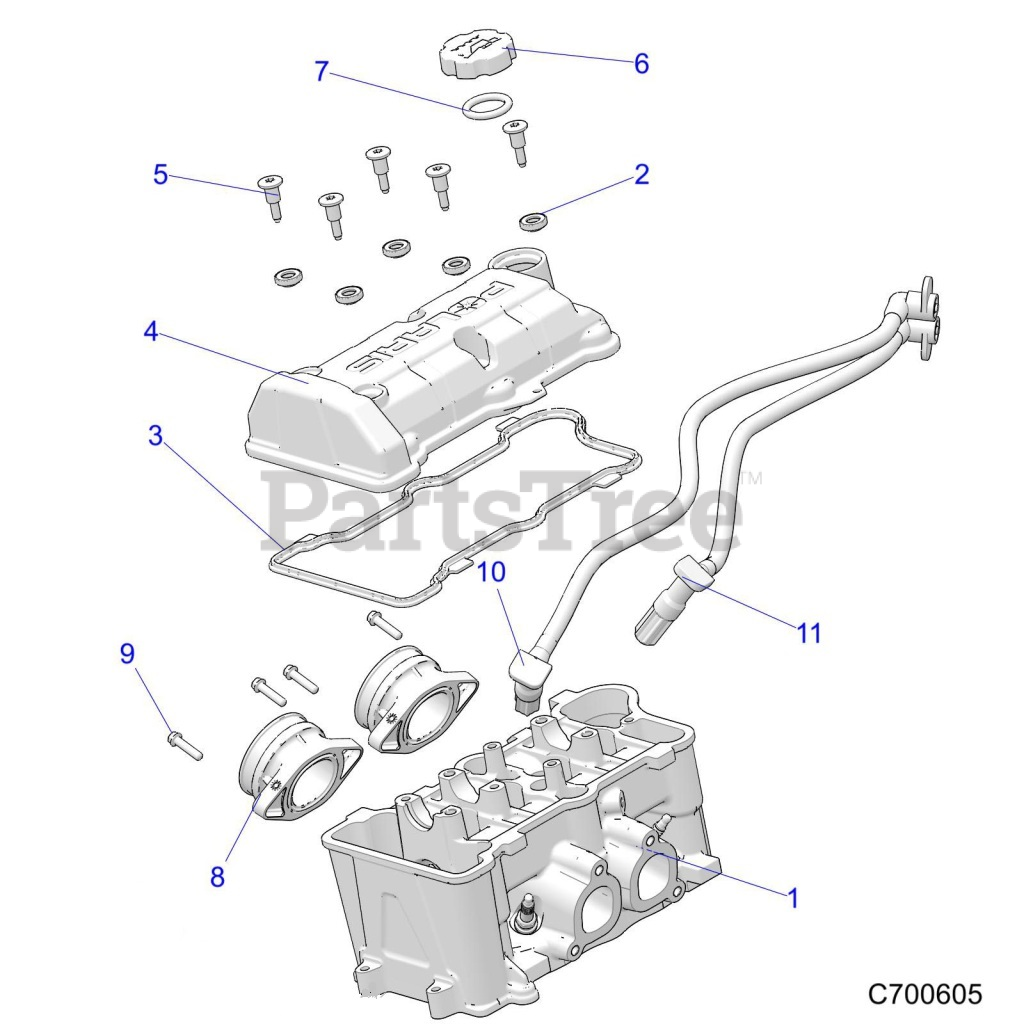

Engine, Throttle Body and Valve Cover Parts Diagram

  • Title
1

Gravely 21902444

SPARKPLUG-12MM

$

$

Currently unavailable

2

Gravely 21900227

ISOLATOR-VALVE COVER

$

$

Not available

3

Gravely 21902445

SEAL-VALVE COVER,2CYL,SOHC

$

$

Currently unavailable

4

Gravely 21902446

COVER-VALVE,CAST,2CYL,SOHC

$

$

Currently unavailable

5

Gravely 21900426

BOLT-SHLDR,M6X12X15

$

$

Not available

6

Gravely 21900835

ASM-OIL FILL CAP

Note: [INCL. 7]

$

$

Not available

7

Gravely 21900237

O-RING-FILL CAP

$

$

Not available

8

Gravely 21902448

ADAPTER-MANIFOLD

$

$

Currently unavailable

9

Gravely 21902419

SCR-HXFLG,M6X1.0X25,10.9

$

$

Currently unavailable

10

Gravely 21902461

WIRE-SPARKPLUG,MAG

$

$

Currently unavailable

11

Gravely 21902462

WIRE-SPARKPLUG,PTO

$

$

Currently unavailable
