996204 (JSV 3400 SD) - Gravely Atlas JSV Utility Vehicle (SN: 024000 - 024999) Steering, Steering Assembly Parts Diagram

Atlas JSV Utility Vehicle

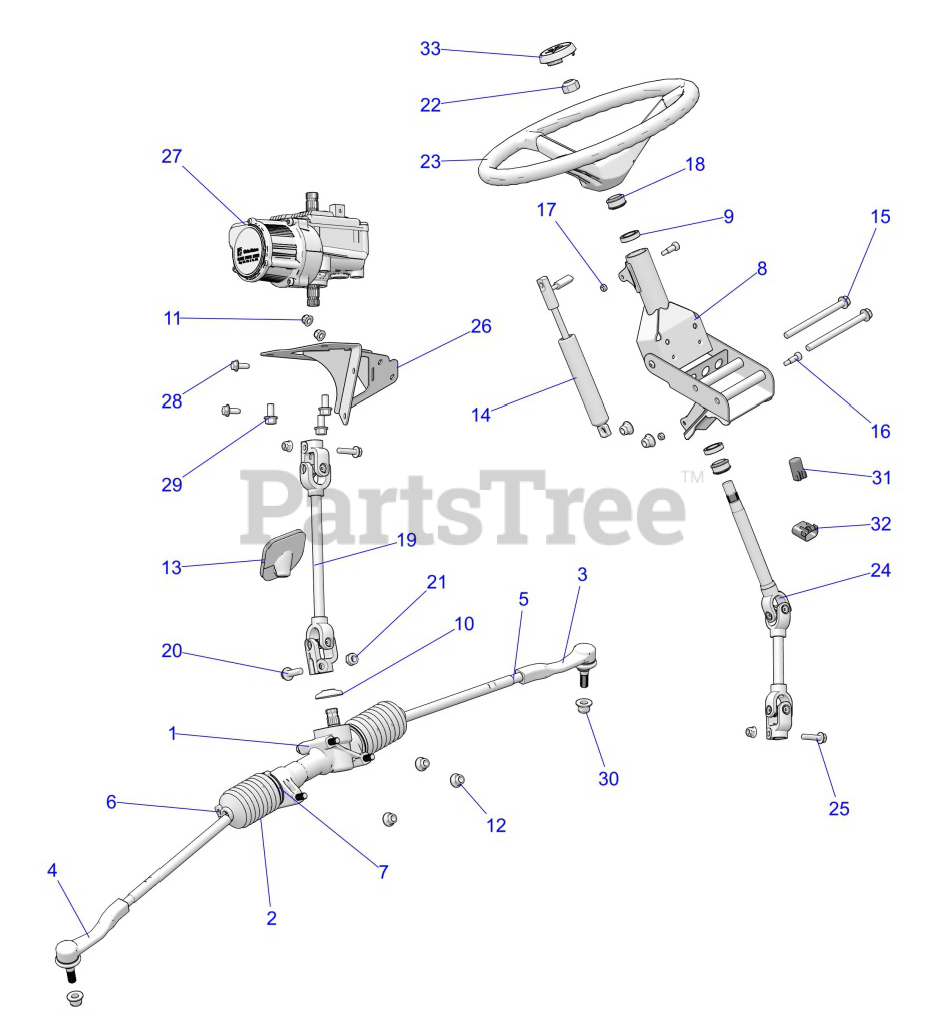

Steering, Steering Assembly Parts Diagram

  • Title

1

ASM-GEAR BOX,STEERING

Note: Includes Item Number 2 Through 7

$

$

Not available

2

Gravely 21900623

BOOT-DRIVER SIDE,RACK

$

$

Not available

3

Gravely 21902741

D.S. OUTER TIE ROD

$

$

Currently unavailable

4

Gravely 21902742

P.S. OUTER TIE ROD

$

$

Currently unavailable

5

NUT, JAM, LH THREAD

$

$

Not available

6

BELLOWS CLAMP, SMALL

$

$

Not available

7

Note: Not Available Separately

$

$

Not available

8

Gravely 21901750

ASM,TILT,STEERING,RVTD,M10.BLK

Note: Includes Item Number 9

$

$

Not available

9

Gravely 21900129

BEARING-STEERING

$

$

Not available

10

Gravely 21902157

COVER-DUST,STEERING

$

$

Currently unavailable

11

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

12

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

13

Gravely 21902164

GROMMET-STEERING

$

$

Currently unavailable

14

Gravely 21900313

ASM-SHOCK,OIL LOCKING,MACH

$

$

Not available

15

Gravely 21900404

BOLT-M10X1.25X130,HXFLG-OLIVED

$

$

Not available

16

Gravely 21900454

BOLT-SHOULDER,M8-15,M6X1.0-BLK

$

$

Not available

17

Gravely 21900459

NUT,NYLOK(10)

$

$

Not available

18

Gravely 21900491

BUSHING-STEERING

$

$

Not available

19

SHAFT, STEERING, LOWER, W/JOINT, EPAS

$

$

Not available

20

SCR-HXFL-M10X1.5X40 10.9 ZPC

$

$

Not available

21

Gravely 21900469

NUT-NY INS,M10X1.5,HEX,ZINC,YW

$

$

Not available

22

Gravely 21900474

NUT-HEX-M16X2, 8 ZC NYL

$

$

Not available

23

Gravely 21900048

WHEEL-STEERING,15"

$

$

Not available

24

SHAFT, STEERING, UPPER

$

$

Not available

25

SCR-HXFL-M8X1.25X40 10.9 ZFB

$

$

Not available

26

Gravely 21902165

WELD-EPAS,MNT,BLK

$

$

Currently unavailable

27

ASM-POWER STEERING,2.5T,250K

$

$

Not available

28

Gravely 21900396

BOLT-M8X1.25X20,HXFLG,TAP/R-OD

$

$

Not available

29

Gravely 21900397

BOLT-M10X1.25X20,HXFLG-OLV D

$

$

Not available

30

Gravely 21902143

NUT-M12X1.5,FLG,NYLOC-OLIVE D

$

$

Currently unavailable

31

Note: Not Used on This Model

$

$

Not available

32

Note: Not Used on This Model

$

$

Not available

33

Note: Not Used on This Model

$

$

Not available
