996204 (JSV 3400 SD) - Gravely Atlas JSV Utility Vehicle (SN: 024000 - 024999) Fuel System, Fuel Tank Parts Diagram

Atlas JSV Utility Vehicle

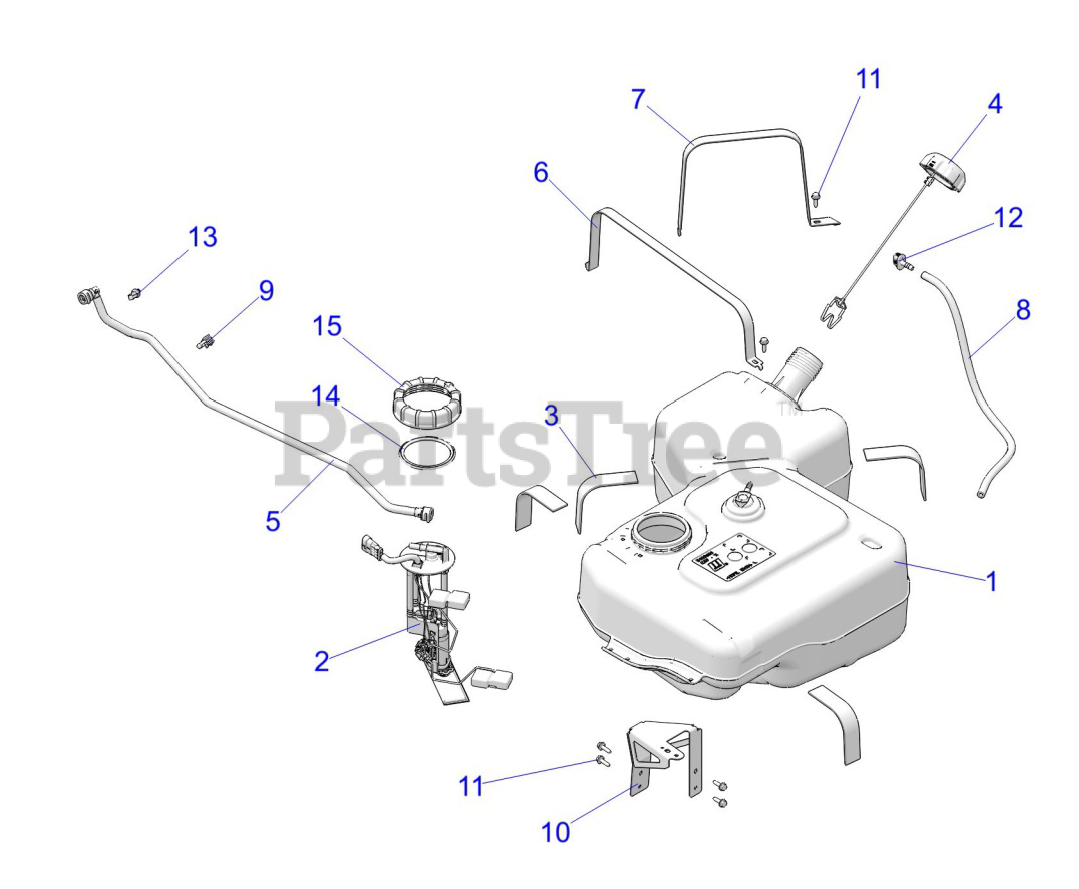

Fuel System, Fuel Tank Parts Diagram

  • Title
1

Gravely 21902539

ASM-FUEL TANK

Note: Includes Item Number 2 and 3

$

$

Currently unavailable

2

Gravely 21902567

ASM-FUEL PUMP

Note: Includes Item Number 14 and 15

$

$

Currently unavailable

3

Gravely 21900293

PAD, BATTERY

$

$

Not available

4

Gravely 21902538

CAP-GAS TANK,TETHER

$

$

Currently unavailable

5

Gravely 21902542

ASM-FUEL LINE

Note: Includes Item Number 9

$

$

Currently unavailable

6

Gravely 21900202

BRKT-TANK,STRAP,INSIDE,GALV

$

$

Not available

7

Gravely 21900203

BRKT-TANK,STRAP,OUTSIDE,GALV

$

$

Not available

8

Gravely 21902543

FUEL LINE-54 CENTIMETRS

$

$

Currently unavailable

9

Gravely 21900869

CLIP-EDGE,SIDE W/STRAP

$

$

Currently unavailable

10

Gravely 21902536

BRKT-FUEL TANK,SUPPORT,BLK

$

$

Currently unavailable

11

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

12

Gravely 21902537

FITTING-VENT LINE

$

$

Currently unavailable

13

Gravely 21900348

CLIP-ROUTING

$

$

Not available

14

$

$

Not available

15

Gravely 21901351

NUT, JAM

$

$

Not available
