996204 (JSV 3400 SD) - Gravely Atlas JSV Utility Vehicle (SN: 024000 - 024999) Engine, Mounting Parts Diagram

Atlas JSV Utility Vehicle

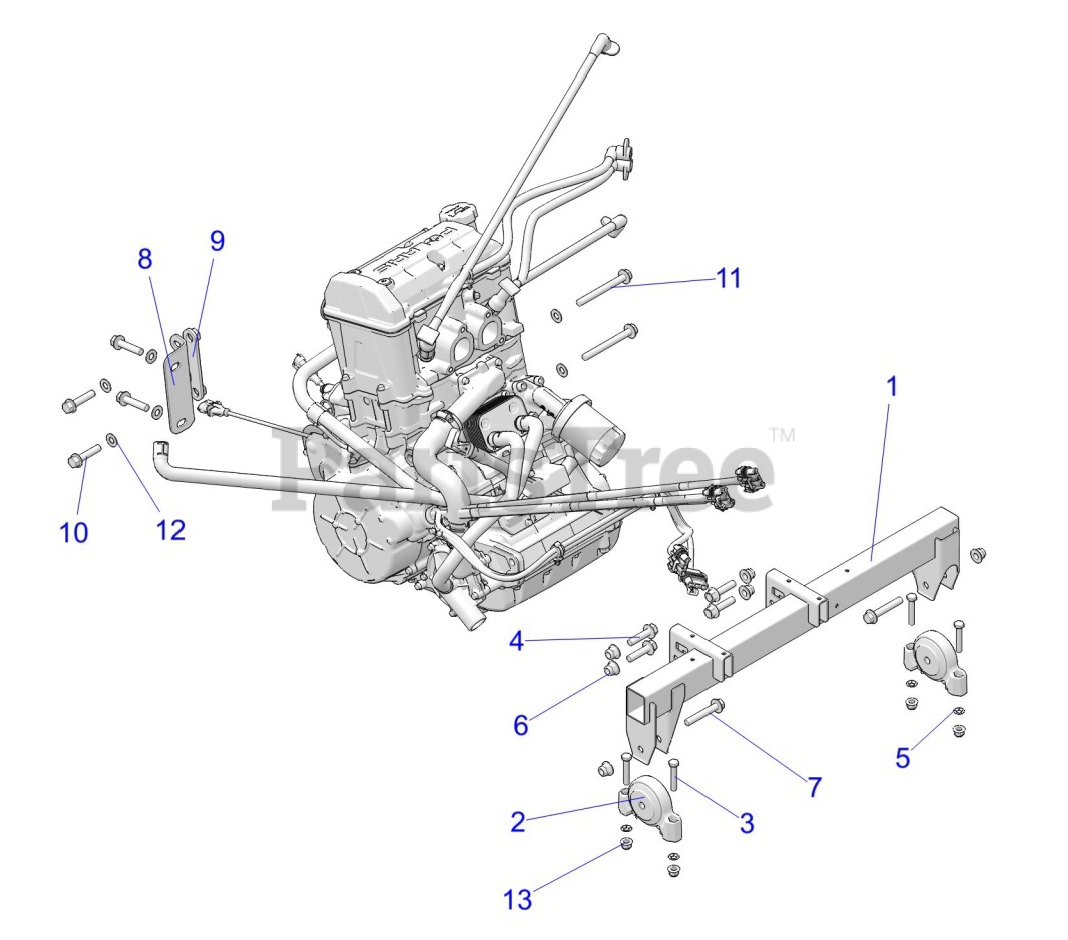

Engine, Mounting Parts Diagram

  • Title

Gravely 21902395

KIT, LONG BLOCK

$

$

Currently unavailable

1

Gravely 21902394

WELD-MOUNT,ENGINE,BLK

$

$

Currently unavailable

2

Gravely 21900038

MOUNT-ISOLATOR,DRIVELINE

$

$

Not available

3

Gravely 21900419

SCR-HH M8X1.25X45 8.8 ZOD

$

$

Not available

4

Gravely 21900440

SCR-HXFL-M10X1.25X40 8.8 ZOD

$

$

Not available

5

$

$

Not available

6

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

7

Gravely 21900399

BOLT-M10X1.25X60,HXFLG-OLIVE D

$

$

Not available

8

Gravely 21902504

BRKT-COUPLER,TRANS

$

$

Currently unavailable

9

Gravely 21902505

WELD-NUT,PLATE

$

$

Currently unavailable

10

Gravely 21902506

SCR-HXFL-M10X1.25X45 8.8 ZOD

$

$

Currently unavailable

11

Gravely 21900413

SCR-HXFL-M10X1.25X95 10.9 ZOD

$

$

Not available

12

Gravely 21900486

WASHER,3/8 FW

$

$

Not available

13

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available
