996204 (JSV 3400 SD) - Gravely Atlas JSV Utility Vehicle (SN: 024000 - 024999) Engine, Cooling, Radiator Parts Diagram

Atlas JSV Utility Vehicle

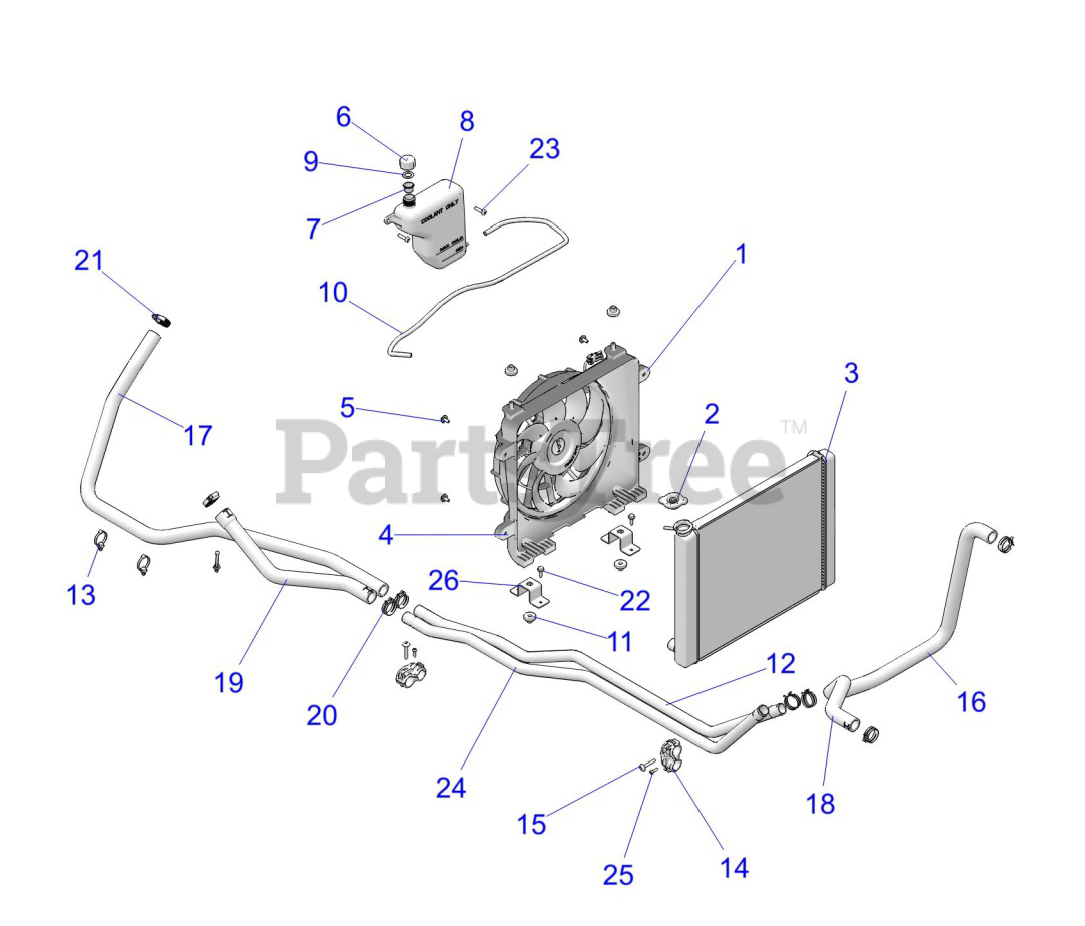

Engine, Cooling, Radiator Parts Diagram

  • Title

1

Gravely 21902201

ASM., RADIATOR [INCL. 2-5]

Note: Includes Item Number 2, 3, 4, and 5

$

$

Currently unavailable

2

Gravely 21900030

CAP

$

$

Not available

3

Gravely 21902202

ASM., RADIATOR, CORE

$

$

Currently unavailable

4

Gravely 21902203

FAN, ASM.

$

$

Currently unavailable

5

Gravely 21900446

BOLT-M6X15MM

$

$

Not available

6

Gravely 21900250

CAP, OVERFLOW

$

$

Not available

7

Gravely 21900251

CAP,PLUG9X(GRN),FLEX TEMP(10)

$

$

Not available

8

Gravely 21900266

TANK-SURGE

$

$

Not available

9

Gravely 21900292

GASKET (10)

$

$

Not available

10

Gravely 21900581

FUEL LINE-95 CENTIMETERS

$

$

Not available

11

Gravely 21900315

GROMMET

$

$

Not available

12

Gravely 21902528

TUBE-COOLANT,1"

$

$

Currently unavailable

13

Gravely 21900348

CLIP-ROUTING

$

$

Not available

14

Gravely 21902194

CLIP-COOLANT ROUTING

$

$

Currently unavailable

15

Gravely 21902195

SCREW

$

$

Currently unavailable

16

Gravely 21902204

HOSE-UPPER,RAD

$

$

Currently unavailable

17

Gravely 21902200

HOSE-ENGINE,OUT,GAS

$

$

Currently unavailable

18

Gravely 21902205

HOSE-LOWER,RAD

$

$

Currently unavailable

19

Gravely 21902199

HOSE-ENGINE,IN

$

$

Currently unavailable

20

SPRINGBAND-CLAMP 32/12,BROWN

$

$

Not available

21

Gravely 21900342

CLAMP-HOSE(WORM DR)25-40MM

$

$

Not available

22

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

23

Gravely 21900387

SCR-#14X1 HI/LO-PH-PN TRX-M

$

$

Not available

24

Gravely 21902675

TUBE-COOLANT,1",UPPER

$

$

Currently unavailable

25

Gravely 21900368

SCREW

$

$

Not available

26

Gravely 21902196

BRKT-RADIATOR MNT,LWR,BLK

$

$

Currently unavailable
