996204 (JSV 3400 SD) - Gravely Atlas JSV Utility Vehicle (SN: 024000 - 024999) Engine, Air Intake Manifold Parts Diagram

Atlas JSV Utility Vehicle

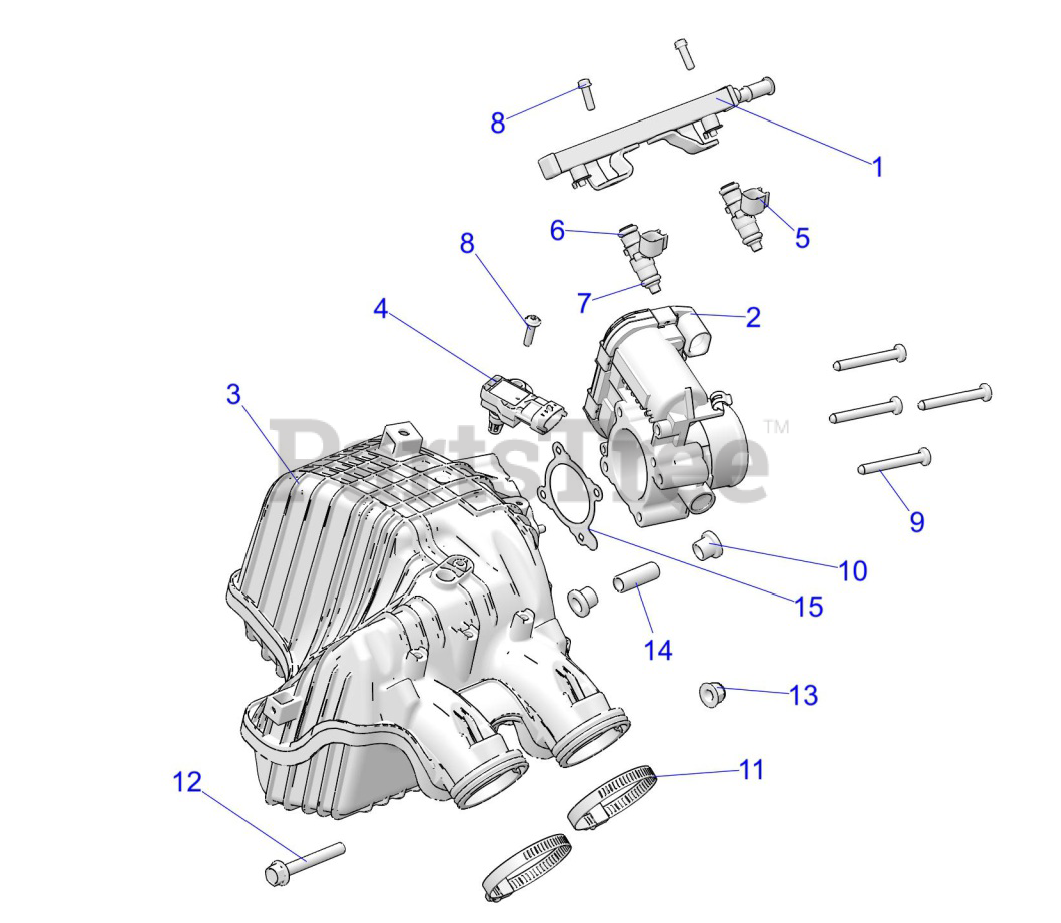

Engine, Air Intake Manifold Parts Diagram

  • Title
1

Gravely 21902452

RAIL-FUEL,SOHC

$

$

Currently unavailable

2

Gravely 21900020

THROTTLE-ETC,46MM

$

$

Not available

3

MANIFOLD-INTAKE,SOHC

$

$

Not available

4

Gravely 21900072

SENSOR-TMAP DSS3-TF

$

$

Not available

5

Gravely 21902449

INJ-FUEL,SE

Note: Includes Item Number 6 and 7

$

$

Currently unavailable

6

Gravely 21902450

O-RING BOSCH,EV-SE,UPPER

$

$

Currently unavailable

7

Gravely 21902451

O-RING BOSCH,EV-SE,LOWER

$

$

Currently unavailable

8

Gravely 21900401

SCR-M6X20,HXFLG,0600214

$

$

Not available

9

Gravely 21900384

SCR-M6X1.0X50.0 HX/FL-YD (10)

$

$

Not available

10

Gravely 21900244

BUSHING-MOUNT

$

$

Not available

11

Gravely 21900327

CLAMP,BAND,NARROW (10)

$

$

Not available

12

Gravely 21900436

SCR-HXFL-M8X1.25X60 8.8 ZOD

$

$

Not available

13

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

14

Gravely 21900180

SHAFT-COMPRESSION LMTR,34.4MM

$

$

Not available

15

Gravely 21902535

GASKET-ETC

$

$

Currently unavailable
